Tomori Industrial Tube Ice Machine

Tomori Industrial Tube Ice Machine - Tube ice is formed in a vertical shell-and-tube vessel by water passing down inside the tubes which are cooled by the circulation of refrigerant on the outer surface. As the ice falls from the tubes it is cut by the rotating ice cutter to a desired size. The ice tubes are about 50 mm in length and 21, 28, 34mm three options in external diameter. When the ice reaches the desired thickness, the water flow will stop automatically. The refrigerant is removed to a surge drum and hot gas is eirculated around the tubes causing the ice tubes to melt and slide down.

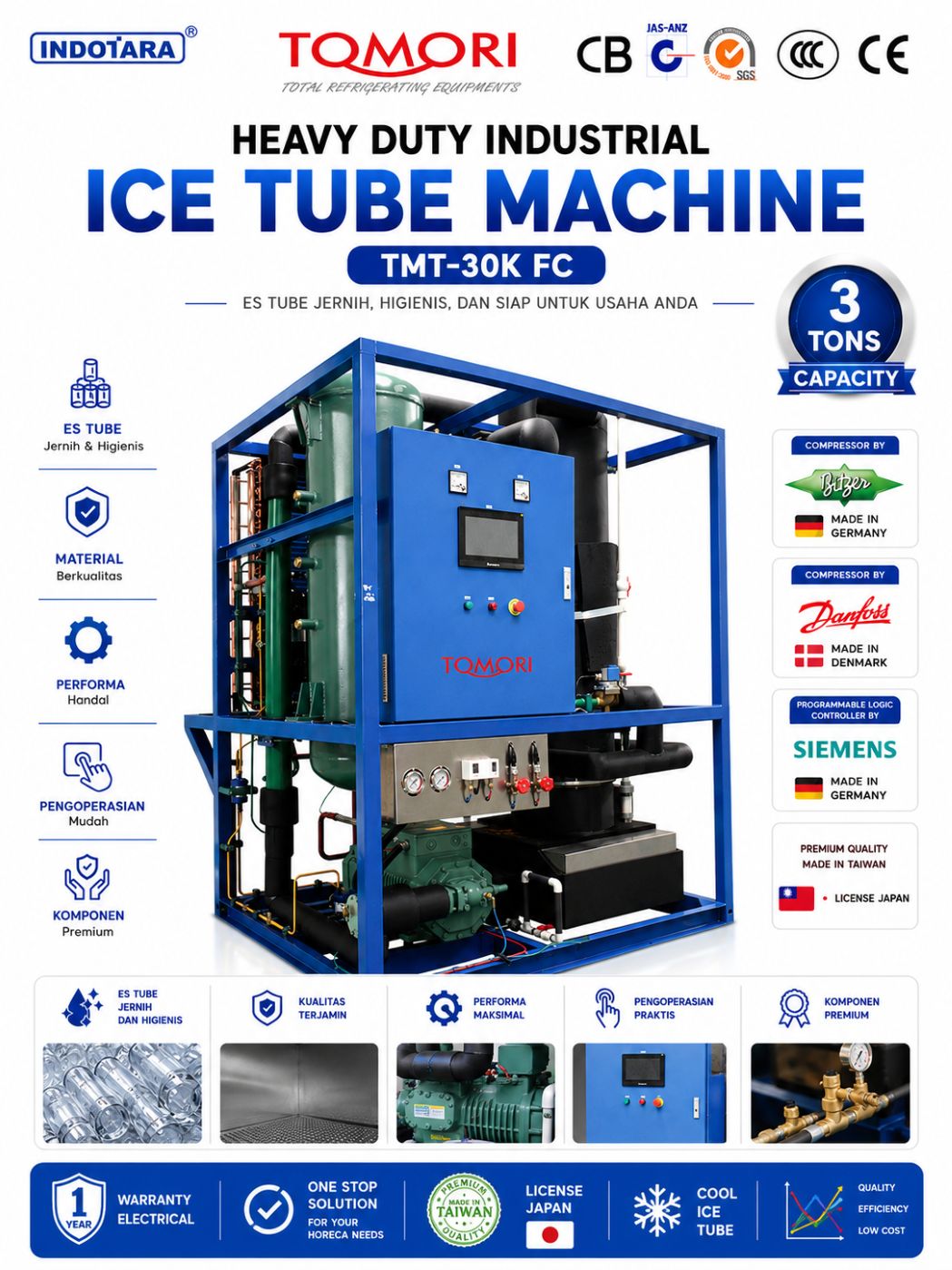

Tomori Heavy Duty Industrial Ice Tube Machine 3 Tons TMT-30K FC
Product Specification
Best Price : Rp 755,797,728 / Unit
Promo Price : Rp 544,174,364 / Unit

* Price exclude PPN, Ex-Works Cikupa
* Price & Spec can be changed without prior notification

SKU - DIR-3
Tomori Industrial Ice Tube Machine
• Model : TMT-30K
• Capacity in 24 hours : 3 Tons Full
• Power : 17.7 KW, Required netto power by PLN : 36 KW
• Voltage : 380V/3 Phase/50Hz
• Dimension (LxWxH) : 1700x920x2000 MM
• Body Material : Iron Coated Blue Colour
• Ice Tube Casting Tube Diameter : 29/35 MM; Ice Degree : -3°C
• Weight : 2500 Kgs
• Heavy Duty Compressor : Bitzer 15 HP
• Evaporator Material : Stainless steel SUS304
• Condensing unit : Air cooled condenser
• Control Valve : Danfoss; PLC Control : Siemens
• Remote Control System : WIFI
• Main cable : 3x6x4; Free Arakawa Stabilizer PDS-20KVA
• Warranty : Electrical 12 Months
Features
+ Compressor by Bitzer, Sindelfingen, Germany
+ Switches by ABB, Switzerland
+ Valve by Danfoss, Denmark
+ Free Freon R404A by Chemours, USA
+ Stainless Steel Food Grade By Otto Junker Gmbh, Germany
+ Heavy Duty 3 Layer Protective Coating by Jotun, Norway
+ Machine Oil By Bitzer, Germany
+ Full capacity warranty with Advanced Japan Technology
+ Free maintainance 1X, Free water pump
+ Strong Construction Made by High Quality Material
+ Tomori produk berkualitas dari PT. Indotara Persada
+ Investasikan modal anda hanya pada produk yang handal
+ Sudah complied dengan uji kelayakan dari BPOM,DEPKES,MUI
REQUEST QUOTE
Get your quotation less than 1 minute now!!
TOMORI INDUSTRIAL TUBE ICE MACHINE :
TUBE ICE MACHINE WITH GERMAN TECHNOLOGY, THIS LATEST TECHNOLOGY ENSURES
THAT THE COOLING EVAPORATOR WORKS MUCH FASTER WITH MAXIMUM COOLING PERFORMANCE.

DIAGRAM OF TUBE ICE EVAPORATOR


The main part of the tube ice machine is the ice evaporator, a vertical shell-and-tube vessel surrounded by a water tank. Special water distributors on top of each tube control an even, spiral supply of water down the inside of the tubes. Excess water is collected in a tank beneath the ice evaporator and pumped back up to the tank at the top.
FEATURES
Pure German technology and years' research experience in refrigeration.
Original Pre-Purify TM patented technology makes ice crystal.
All equipment is made of 3D simulation assembly, compact structure, which makes it humanized to operate and maintain.
Evaporator adopts SUS304, PE, and aluminum material.
PLC system controls the ice making process automatically.





HATI-HATI GUNAKAN SELALU TUBE ICE MACHINE BERKUALITAS TERBAIK
Tomori memiliki pengalaman meningkat selama bertahun-tahun sehingga berkualitas terbaik.
Meningkatkan teknologi berkualitas tinggi untuk solusi yang profesional.
