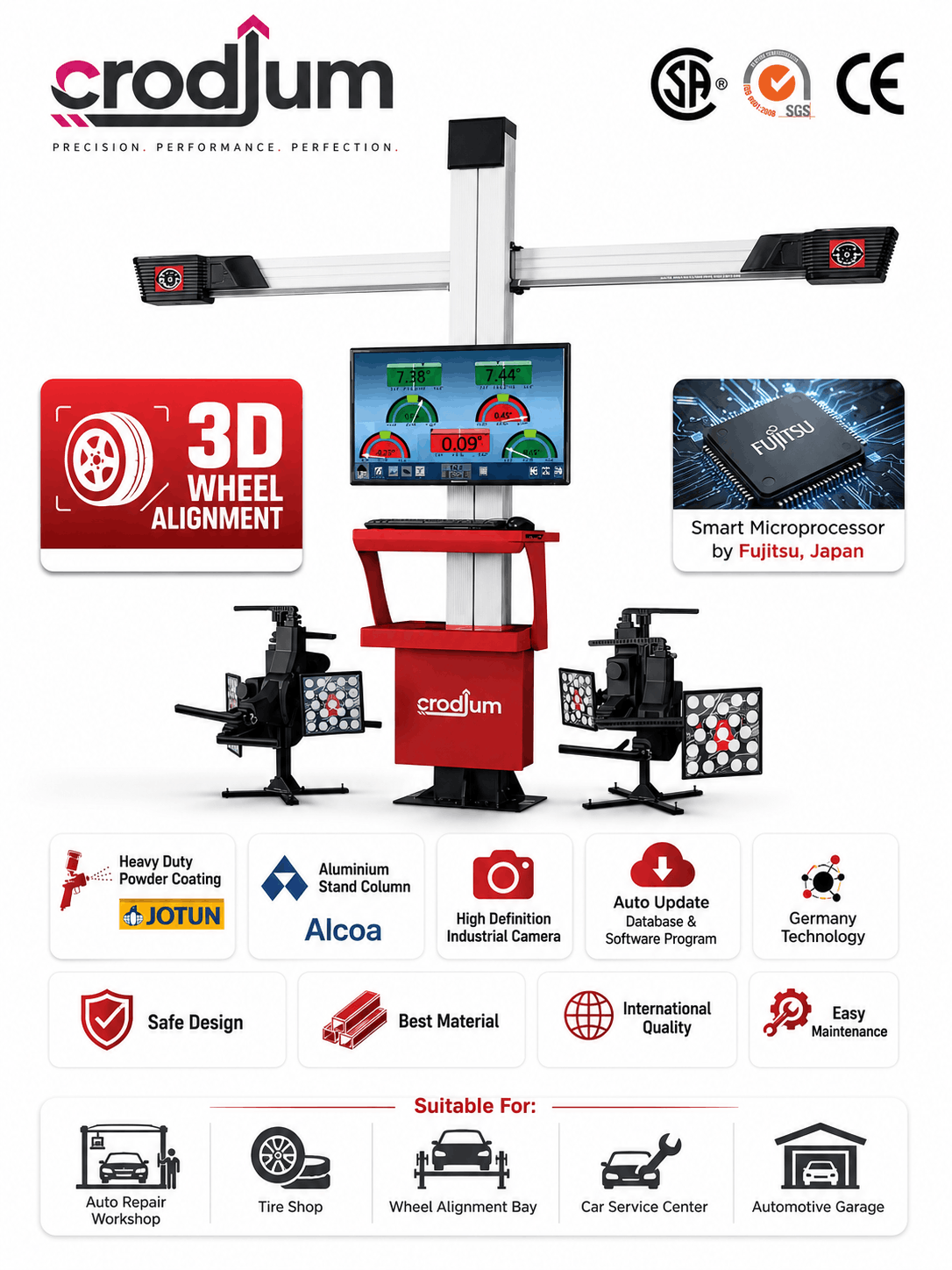

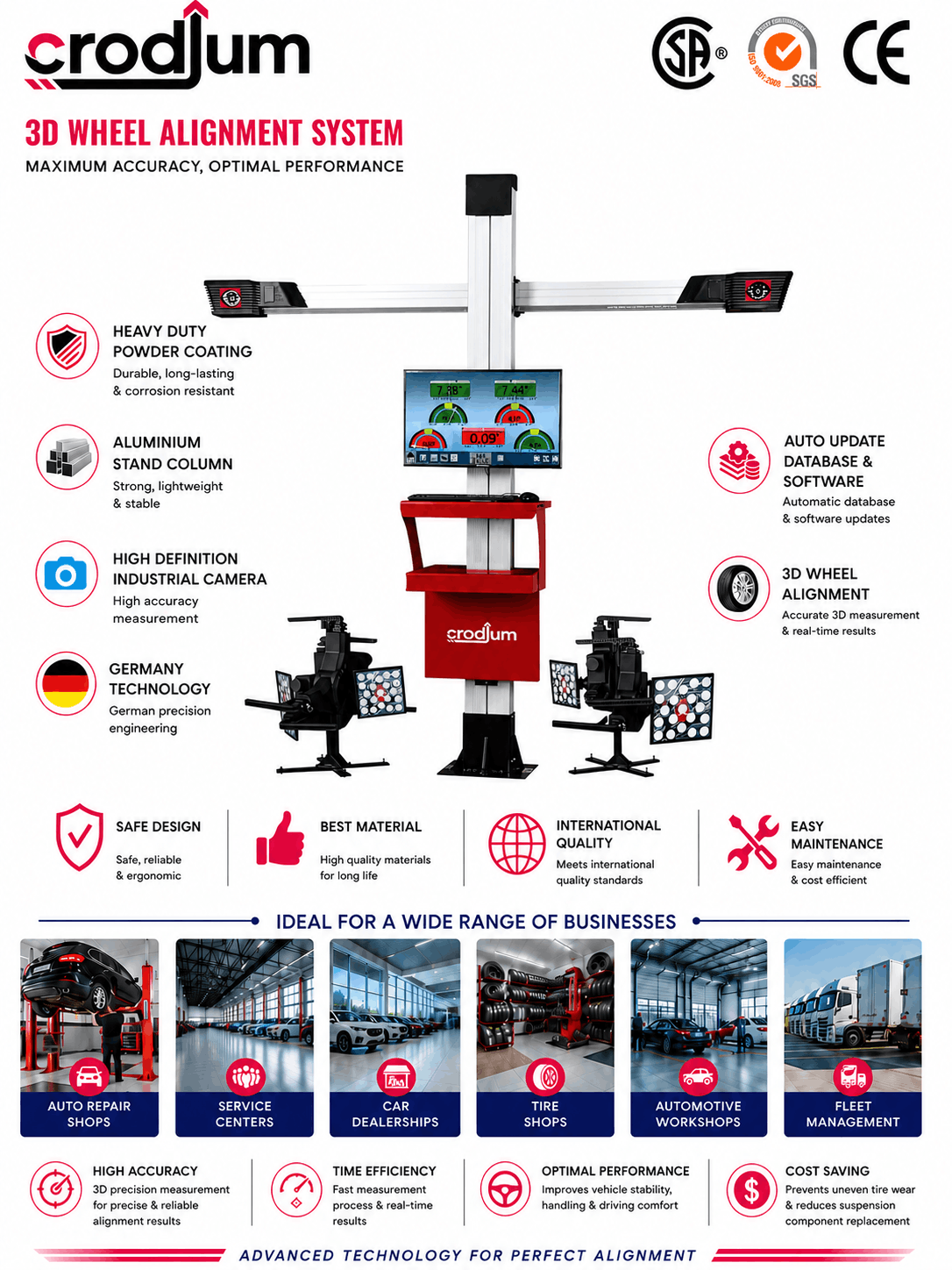

Crodium Heavy Duty Wheel Alignment CR-251A YM Fixed Type

Product Specification

SKU - DAM-23741
Crodium Heavy Duty Wheel Alignment Fixed Type
• Category : Car Wheel Alignment
• Model : CR-251A
• Monitor Size : 22" inch
• Packing Size (L x W x H) : 2860 x 600 x 600 (mm)
• Weight : 150kg
Measurement items :
• Toe Accuracy:±2' & MeasureRange:±20°
• Camber Accuracy:±3' MeasureRange:±10°
• Caster Accuracy:±3' MeasureRange:±20°
• KPI Accuracy:±3' MeasureRange:±20°
• Setback Accuracy:±2' MeasureRange:±9°
• ThrustAngle Accuracy:±2' MeasureRange:±9°
• Wheel Base Accuracy:±3mm
• Tread:±5mm
• Warranty : Mechanical 36 Months , Electrical 12 Months
Features
+ Heavy Duty Powder Coating By Jotun, Norway
+ Aluminium Stand Column Supported By Alcoa, US
+ Automatically Update Database and Software Program
+ Double Cameras Structure, Fixed Camera Beam
+ Simple Cabinet with Aluminium Stand Column
+ High Definition Industrial Camera
+ Safe Design with International Quality
Accessories :
+ Camera Beam Assembly, Aluminium Stand Column
+ Cabinet, Three Point Clamps (4Qty),Wedge Rubber Block (2Qty)
+ 22" Monitor, Thermal Printer, Keyboard & PC
+ Target (4Qty), Turnrable (2Qty), Transition Block (2Qty)
+ Steering Wheel Holder, Brake Pedal Depressor
