Eurorad Vertical Platform Lift EUR-WPL-01 LT 250 Kg - Lifting Height 1100mm - Single Phase 220V

Product Specification

SKU - DHC-32838
Eurorad Vertical Platform Lift :
• Platform Lift Model : EUR-WPL-01
• Material : Mast-Allumunium Alloy
• Control Panel Material : Stainless Steel
• Loading Capacity : 250 Kgs
• Lifting Height : 1100 mm
• Lifting Speed : 6m/min
• Inner Platform Size : 970W1200D mm
• Access Direction : 180 degree from 970mm side
• Overall Size : 1070W x 1300D x 2750H mm
• Pit/Floor opening size : 1400W x 1350D x 120H mm
• Power Hydraulic Motor : 1.5Kw
• Power Supply : 220V/50Hz
• Calling Posts : 2 Pcs (Located at ground and up floor)
• Index Protection : IP65
Available Drawing Reference

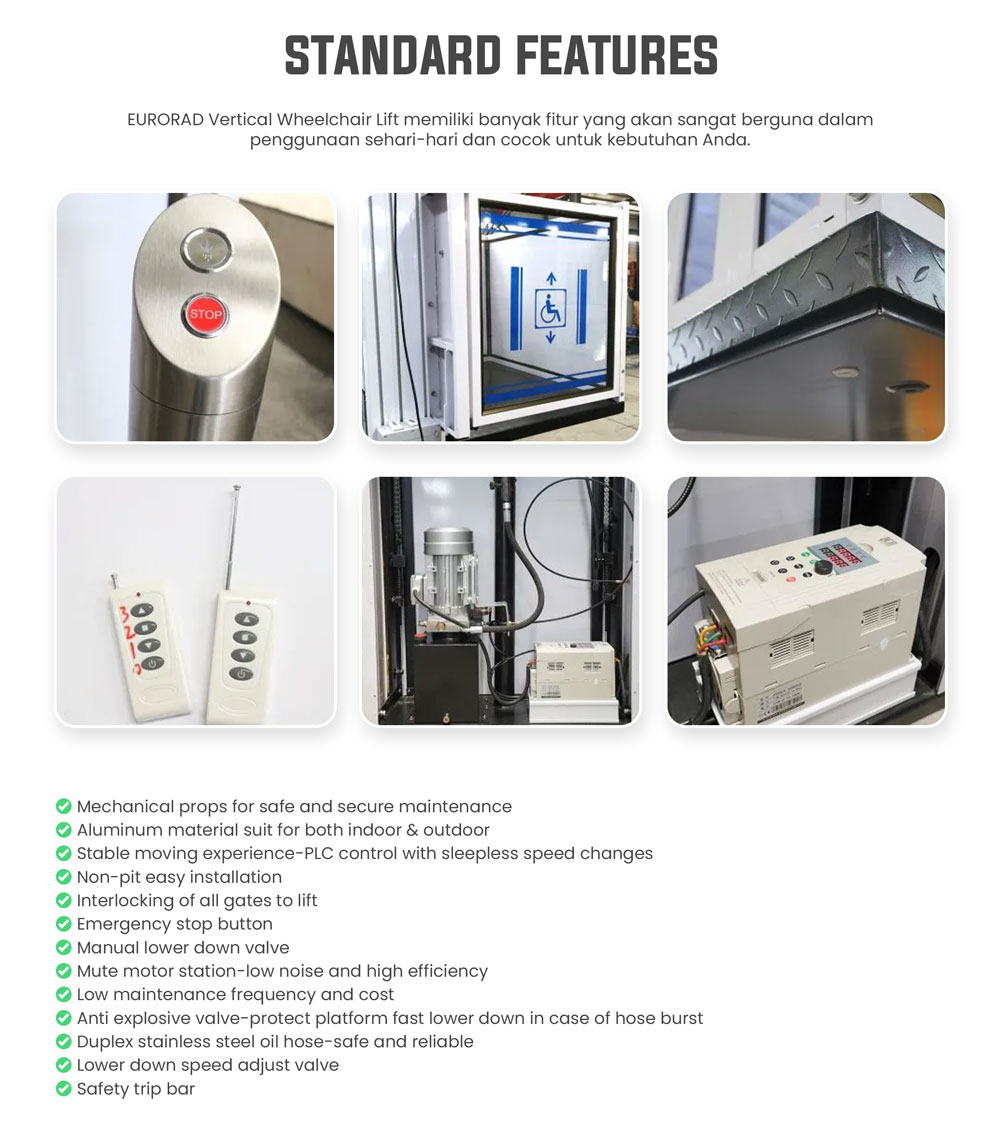

Features
+ Stainless steel material suit for outdoor great resistance
+ Stable moving experience-PLC control with sleepless speed changes
+ Safety sensor under platform for safety design
+ With Requency converter for gradually speed up and down
+ Non-pit easy installation
+ All doors has interlock with platform operation
+ Emergency stop button for safety user
+ Manual lower down valve
+ Mute motor station-low noise and high efficiency
+ Low maintenance frequency and cost
+ Anti explosive valve-protect platform fast lower down
+ Lower down speed adjust valve Safety bottom
