Arakawa Intelligent Lead-Acid Battery Charger AR-B5C-E24/80 SN

Product Specification

SKU - DEE-23137

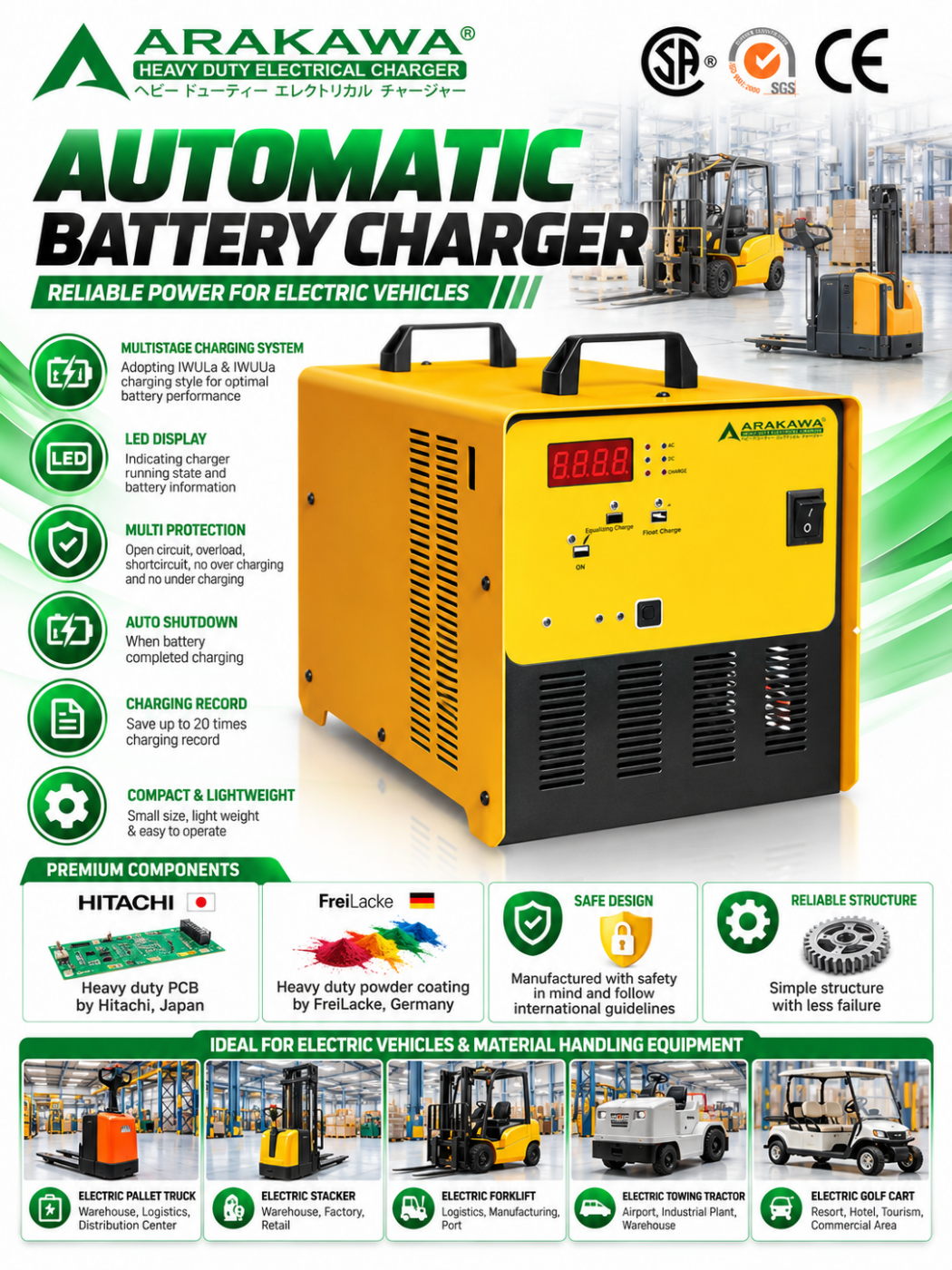

Arakawa Intelligent Lead-Acid Battery Charger
• Model: AR-B5C-E24/80
• Battery Type: Lead-Acid Battery
• Main Power Supply: 220V Single Phase
• Input Power: 3.0 kVA
• Input Current: 13.6 A
• Rated Output Voltage: 24V DC
• Rated Output Current: 80 A
• Rechargeable Battery Range: 464-640 Ah
• Charging Control: Microcomputer Controlled
• Charging Method: Wsa + Pulse Charging
• Control Technology: Voltage & Current Double Closed-Loop PID
• Display: Voltage, Current, Capacity, Time and Fault Code
• Overall Dimension: 466 ? 361 ? 785 mm
• Net Weight: 40 kg
• Warranty : Electrical 1 Years
Features
+ SCR semiconductor technology by Littelfuse, USA.
+ Transformer core technology by Magnetics, USA.
+ Winding wire technology by Essex Furukawa, USA.
+ Current sensing technology by LEM, Switzerland.
+ Capacitor technology by Vishay, USA.
+ Insulation material technology by ISOVOLTA, Austria.
+ Cooling fan technology by SANYO DENKI, Japan.
+ 80A output supports high-capacity industrial battery charging.
+ Supports 24V batteries from 464 to 640Ah capacity.
+ Microcomputer control enables intelligent charging operation.
+ Wsa + Pulse charging improves charging efficiency.
+ Current reduces automatically as battery voltage increases.
+ Temperature compensation improves charging stability.
