Banner Parrent Product Orion Light Bench Drilling Machine

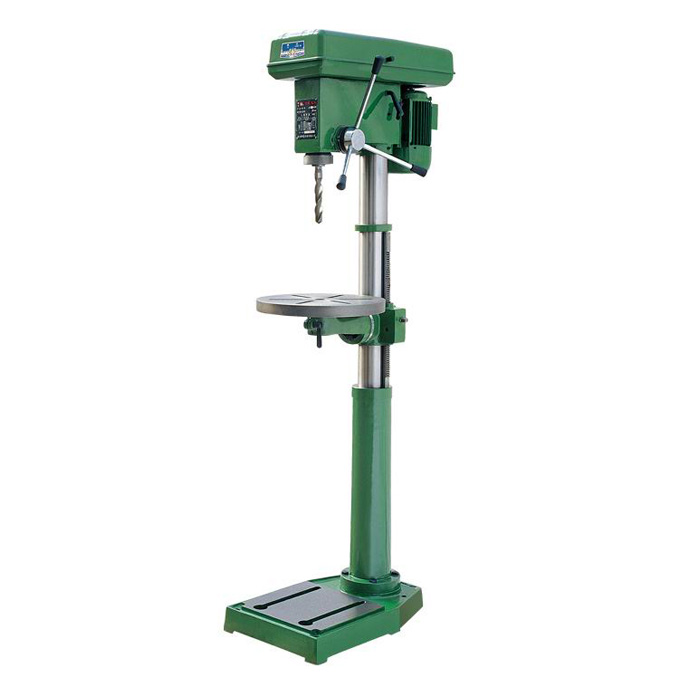

Light Bench Drilling Machine



Main Application and Applicable Scope

This product has high-speed spindle and can be applied in a plurality of industries.

TECHNICAL PARAMETERS

Model ZQD4132
Max drilling capacity 31.5 (mm)
Spindle travel 110 (mm)
Spindle Taper MT.3
Spindle speeds range 200-2260 (r/min)
Distance spindle axis to column surface 200 (mm)
Distance spindle nose to worktable 490 (mm)
Distance spindle nose to base 1240 (mm)
Vertical travel of worktable 330 (mm)
Dimension of worktable surface Ф360 (mm)
Dimension of base table 300 x 300 (mm)
Motor power 750 (W)
Power Supply 3 Phase 380 (V)/50 (hz)
Outline dimension(LxWxH) 725 x 370 x 1680 (mm)
Net/Gross weight 116/125 (kg)
Warranty 3 years (gear box)
Made in TAIWAN
Best Price:  Rp. 10.420.000,-


COMPARISON

Model ZQD4125 ZQ4125 ZQ4132 ZQ4119 ZQ4116 ZQ4113 ZHX-13
Max. borehole diameter (mm) 25 25 31.5 19 16 13 13
Diameter of upright (mm) 85 85 85 70 70 70 48
Maximum stroke of spindle (mm) 110 110 110 85 85 85 50
Dist. from center line of spindle to surface of upright (mm) 200 200 200 180 180 180 103
Spindle nose to table the max. distance (mm) 490 485 485 432 432 318 220
Distance from end face of spindle to base (mm) 1240 670 670 592 560 475 330
End taper of spindle MT.3 MT.3 MT.3 MT.2 MT.2 B16 B16
Speed range of spindle (rpm) 200/ 2260 200/ 2260 200/ 2260 270/ 2880 270/ 2880 450/ 2650 515/ 2580
Spindle speed steps 9 9 9 12 12 4 5
Dimensions of worktable (mm) 360 280*280/ 280*280/ 240*240/ 240*240/ 240*240/ 165*162
Dimensions of base (mm) 300*300 300*300 300*300 220*220 220*220 220*220 310*172
Height 1680 1109 1109 950 956 858 581
Electric motor 550 or 750W 750W 750W 370/550W 370/550W 370W 180W
Gross weight/Net weight (kg) 125/ 116 115/ 105 115/ 105 75/ 70 75/ 70 70/ 60 23/ 22
Size (cm) 168*77*34 110*77*34 110*77*34 92*52*32 92*52*32 92*52*32 51*37*32
Best Price Rp. 9.854.000,- Rp. 9.288.000,- Rp. 9.854.000,- Rp. 6.117.000,- Rp. 5.663.000,- Rp. 5.210.000,- Rp. 2.152.000,-
