| Specifications Table |
|

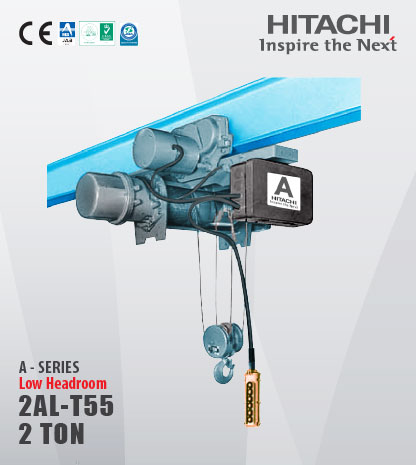

| Model Name | : 2AL-T55 |
| Capacity |
: 2ton |
| Hoisting Lift |
: 6 |
| Hoisting Speed | : 6m/min (50Hz) |
| : 7 m/min (60Hz) | |
| Hoisting Motor |
: 2.1 Kw(50Hz) |
| : 2.4 Kw (60Hz) | |
| No. of poles |
: 4 |
| Traversing Speed |
: 21 m/min(50Hz) |
| : 25 m/min(60Hz) |
|
| Traversing Motor |
: 0.30 Kw(50Hz) |
| : 0.36 Kw(60Hz) |
|
| Wire Rope No Of Falls |
: 4 |
| Wire Rope Composition | : 6xFi(29)-B |
| Wire Rope Diameter |
: Ø8 |
| Rating | : 25% ED 250 Starts/h |
| Operating method |
: Controlled Pushbutton operation |
| Electric Source (3 phase) |
: 200V 50/60Hz - 440 - 460V 60Hz |
| Control Voltage |
: 24 - 27 V |
| Warranty |
: - |
| MODEL | 2AL-T55 | ||||||
|---|---|---|---|---|---|---|---|
| HOIST TYPE | 2AL5 | ||||||
| TROLLEY TYPE | 2T5 | ||||||
| CAPACITY | 2 |
||||||

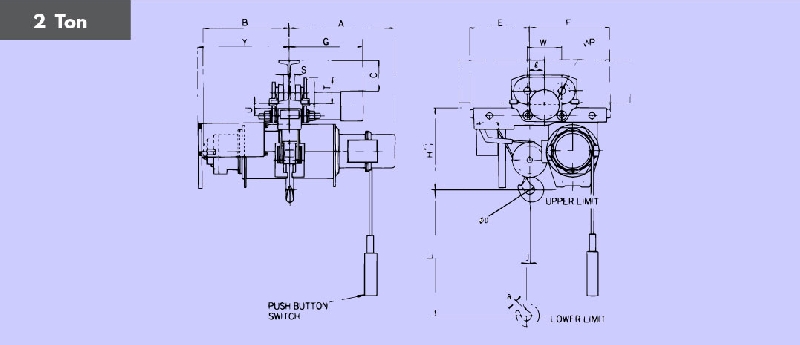

| Approx.Dimension | L | 6000 | |||||
| H | 515 | ||||||
| A | 655 | ||||||
| B | 545 | ||||||
| W |
2000/290 | ||||||
| E |
365 | ||||||
| F |
480 | ||||||
| Ød |
56 | ||||||
| J |
42 | ||||||
| Y | 625 | ||||||
| Øp | 96 | ||||||
| a | 36 | ||||||
| L | 85 |
||||||
| Min. Curve radius (m) |
1.8 | ||||||
| I-Beam Dimension (mm) | S | T | U | C | G | ||
| 200 x 100 x 7 | 42 | 150 | 32 | 135 | 378 | ||
| 250 x 125 x 7.5 | 67 | 153 | 29 | 185 | 391 | ||
| 300 x 150 x 11.5 | 92 | 163 | 19 | 225 | 404 | ||
| 450 x 175 x 11 | - | - | - | - | - | ||
| Approx. weight (kg) | 270 | ||||||
| Push Button Indication | ← ↑ → ↓ ↖ ↗ | ||||||
|
|
                                            |
