| Specifications Table |
|
| Model Name | : 1L-HT 55 |
| Capacity |
: 1 ton |
| Hoisting Lift |
: 6 and 12 |
| Hoisting Speed | : 11 m/min (50Hz) |
| : 13 m/min (60Hz) | |
| Hoisting Motor |
: 1.9 Kw(50Hz) |
| : 2.3 Kw (60Hz) | |
| No. of poles |
: 4 |
| Traversing Speed |
: 21 m/min(50Hz) |
| : 25 m/min(60Hz) |
|
| Traversing Motor |
: 0.30 Kw(50Hz) |
| : 0.36 Kw(60Hz) |
|
| Wire Rope No Of Falls |
: 4 |
| Wire Rope Composition | : 6xFi(19)-B |
| Wire Rope Diameter |
: Ø12.5 |
| Rating | : 40% ED400 Starts/h |
| Operating method |
: Pushbutton operation |
| Electric Source (3 phase) |
: 200V 50/60Hz - 440 - 460V 60Hz |
| Control Voltage |
: 200 - 50/60Hz |
| Warranty |
: - |
| MODEL | 1HL-T55 | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HOIST TYPE |
1HL5 | |||||||||||||||
| TROLLEY TYPE |
1T5 | |||||||||||||||
| CAPACITY (t) |
1 | |||||||||||||||

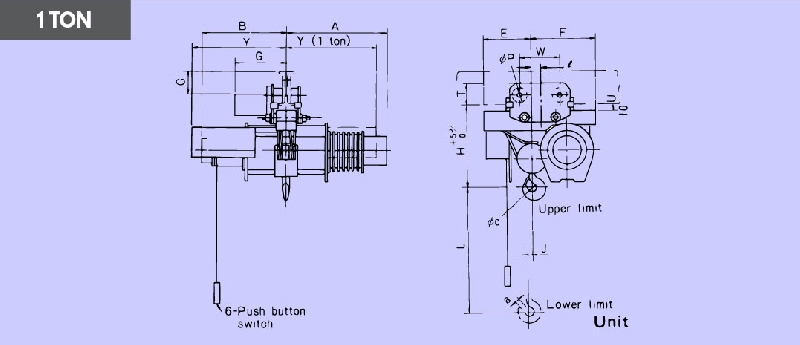

| Approx.Dimension | L | 12000 | ||||||||||||||
| H | 450 | |||||||||||||||
| A | 675 | |||||||||||||||
| B | 560 | |||||||||||||||
| W | 200/290 | |||||||||||||||
| E |
325 | |||||||||||||||
| F | 465 | |||||||||||||||
| Ød |
45 | |||||||||||||||
| J | 35 | |||||||||||||||
| Y | 555 | |||||||||||||||
| Øp | 96 | |||||||||||||||
| a | 23 | |||||||||||||||
| L | 108 | |||||||||||||||
| Min. Curve Radius (m) |
1.5 | |||||||||||||||
| Dimension with respect to i-beam |
S | T | U | C | G | |||||||||||
| (150 x 75 x 5.5) |
- | - | - | - | - | |||||||||||
| 200 x 100 x 7 |
- | - | - | - | - | |||||||||||
| 250 x 100 x 7 |
42 | 148 | 52 | 135 | 374 | |||||||||||
| 300 x 150 x 11.5 |
67 | 151 | 49 | 185 | 387 | |||||||||||
| 450 x 175 x 11 |
92 | 160 | 40 | 225 | 400 | |||||||||||
| Approx. weight (Kg) |
285 | |||||||||||||||
|
|
                                            |
