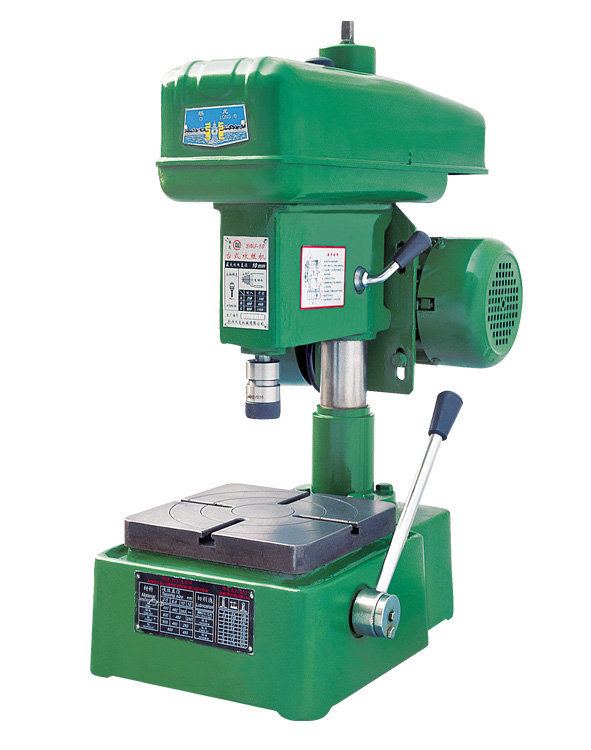

TAPPING MACHINE



Main Application and Applicable Scope

It is provided with a mechanical friction clutch to drive the spindle to rotate clockwise and anticlockwise, has more stable clockwise and anticlockwise work and smaller noise compared with common motor, and is further provided with overload protection function. It is continuous to tap ferrous and nonferrous metal and nonmetal materials, and is widely used in the industries of machinery manufacturing, instruments and meters, hardware toys.

TECHNICAL PARAMETERS

Model SWJ-6B/SWJ-10
Spindle travel 50mm
Dimension of worktable surface 200×200mm
Taper of spindle B12/B16
Spindle speeds range (SWJ-6B) (r/min) Forw. : 350,520,820,1180 | Rev : 510,760,1200,1700
Outline dimension (L×W×H) 520×308.5×767mm
Max tapping capacity (Cast iron/steel) M8/M6；M12/M10
Distance spindle axis to column surface 140mm
Distance spindle nose to base 300mm
Main motor 370/550W
Spindle speeds range (SWJ-10) (r/min) Forw. : 250,480,800 | Rev : 340,660,1100 r/min
Net/Gross weight 60/70kg
Best Price:  Call Sales


COMPARISON

  Model ZS-50 ZS-40/ZS-40II SB4016 S4116/S4116A SWJ-6/SWJ-12 SWJ-6B/SWJ-10
  Tapping the largest  diameter (mm) M42*4 M30*3 M16 M16/ M12 M6/ M5 M8/ M6,
M12/ M8 M12/ M10
  Diameter of column (mm) 140 120 / / / /
  Maximum stroke of spindle (mm) 150 120 65 50 40/ 45 50
  Dist. from center line of spindle to surface of upright (mm) 320 267.5 240 183 127 140
  Spindle nose to table the maximum distance (mm) / / / 520/ 480 295/ 290 300
  Distance from end face of spindle to base (mm) 665 750 500 680 388/ 380 /
  End taper of spindle MT.4 MT.3 MT.2 B18 B12/B16 B12/B16
  Range of spindle speeds (rpm) 54-585 65-1380/54-620 155, 285, 515 Positive: 240, 380, 570 Positive: 480, 850/260, 440,75 Right: 350, 520, 820, 1180/ 250, 480,8
Anti: 275, 440, 650 Anti: 580,1050/ 320,550,93 Left: 510, 760, 1200, 1700/340, 660,11
  Spindle speed steps 4 06-Apr 3 / / /
  Dimensions 410*395mm 420*375mm 320X316mm 270*280/Φ330mm 196*196/230x230mm 200*200mm
  Height 1350mm 1250mm 932mm 1230mm 815/825mm 767mm
  Electric motor 1500W 8 1100W 6 750W 550 or 750W 370/550W 370/550W
  Gross weight/Net weight 420/400kg 270/245kg 270/240kg 120/102kg 50/43kg 70/60kg
60/48kg
  Size> 100*65*145cm 82*58*130cm 90*65*112cm 73*54*133cm 61*44*91cm 60*37*69cm
Best Price Call Sales Call Sales Call Sales Call Sales Call Sales Call Sales
