Banner Parrent Product Orion Tapping Machine

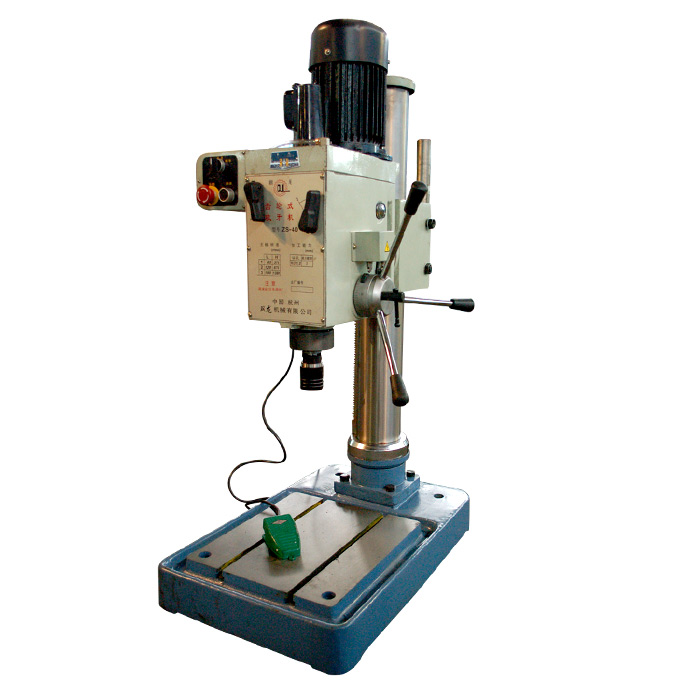

TAPPING MACHINE



Main Application and Applicable Scope

The machine tool is used to drill, flare and ream holes 31.5mm or below in diameter and tap screwed holes 3mm in screw pitch on common various materials. The machine tool is suitable for cutting of single or batch of parts, with excellent performance and convenient operation, and has stronger power compared with single belt drive drilling machine.

TECHNICAL PARAMETERS

Model ZS-40
Max tapping capacity M30×3
Distance spindle axis to column surface 270mm
Taper of spindle MT.3
Spindle speeds 6 steps
Main motor 1100W
Net/Gross weight 245/270kg
Max drilling capacity 31.5mm
Spindle travel 120mm
Distance spindle nose to base 750mm
Spindle speeds range 62，110，185，330，580，980
Dimension of base surface 420×375mm
Outline dimension (L×W×H) 780×505×1910mm
Best Price:  Call Sales


COMPARISON

  Model ZS-50 ZS-40/ZS-40II SB4016 S4116/S4116A SWJ-6/SWJ-12 SWJ-6B/SWJ-10
  Tapping the largest  diameter (mm) M42*4 M30*3 M16 M16/ M12 M6/ M5 M8/ M6,
M12/ M8 M12/ M10
  Diameter of column (mm) 140 120 / / / /
  Maximum stroke of spindle (mm) 150 120 65 50 40/ 45 50
  Dist. from center line of spindle to surface of upright (mm) 320 267.5 240 183 127 140
  Spindle nose to table the maximum distance (mm) / / / 520/ 480 295/ 290 300
  Distance from end face of spindle to base (mm) 665 750 500 680 388/ 380 /
  End taper of spindle MT.4 MT.3 MT.2 B18 B12/B16 B12/B16
  Range of spindle speeds (rpm) 54-585 65-1380/54-620 155, 285, 515 Positive: 240, 380, 570 Positive: 480, 850/260, 440,75 Right: 350, 520, 820, 1180/ 250, 480,8
Anti: 275, 440, 650 Anti: 580,1050/ 320,550,93 Left: 510, 760, 1200, 1700/340, 660,11
  Spindle speed steps 4 06-Apr 3 / / /
  Dimensions 410*395mm 420*375mm 320X316mm 270*280/Φ330mm 196*196/230x230mm 200*200mm
  Height 1350mm 1250mm 932mm 1230mm 815/825mm 767mm
  Electric motor 1500W 8 1100W 6 750W 550 or 750W 370/550W 370/550W
  Gross weight/Net weight 420/400kg 270/245kg 270/240kg 120/102kg 50/43kg 70/60kg
60/48kg
  Size> 100*65*145cm 82*58*130cm 90*65*112cm 73*54*133cm 61*44*91cm 60*37*69cm
Best Price Call Sales Call Sales Call Sales Call Sales Call Sales Call Sales


Click to Download Orion Catalog
