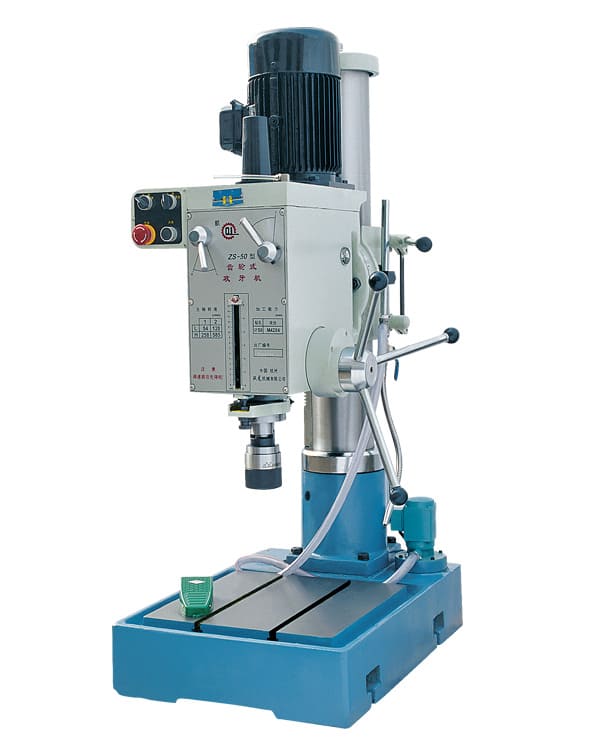

TAPPING MACHINE



Main Application and Applicable Scope

The machine tool is used to drill, flare and ream holes 50mm，or M42×4、M48×3、M60×2.5、M70×2、M80×1的 The machine tool is suitable for cutting of single or batch of parts, with excellent performance and convenient operation, and has stronger power compared with single belt drive drilling machine.

TECHNICAL PARAMETERS

Model ZS-50
Max tapping capacity M42×4
Distance spindle axis to column surface 320mm
Taper of spindle MT.4
Spindle speeds 6 steps
Main motor 1500W
Net/Gross weight 400/420kg
Max drilling capacity 50mm
Spindle travel 150mm
Distance spindle nose  to base 665mm
Spindle speeds range 54,120, 258, 585
Dimension of base surface 410×395mm
Outline dimension (L×W×H) 800×620×1350mm
Best Price:  Call Sales


COMPARISON

Model ZS-50 ZS-40/ZS-40II SB4016 S4116/S4116A SWJ-6/SWJ-12 SWJ-6B/SWJ-10
Tapping the largest diameter (mm) M42*4 M30*3 M16 M16/ M12 M6/ M5, M12/ M8 M8/ M6, M12/ M10
Diameter of column (mm) 140 120 / / / /
Maximum stroke of spindle (mm) 150 120 65 50 40/ 45 50
Dist. from center line of spindle to surface of upright (mm) 320 267.5 240 183 127 140
Spindle nose to table the maximum distance (mm) / / / 520/ 480 295/ 290 300
Distance from end face of spindle to base (mm) 665 750 500 680 388/ 380 /
End taper of spindle MT.4 MT.3 MT.2 B18 B12/B16 B12/B16
Range of spindle speeds (rpm) 54-585 65-1380/ 54-620 155, 285, 515 Positive : 240, 380, 570 Positive : 480, 850/ 260, 440,75 Right : 350, 520, 820, 1180/250, 480,8
Anti : 275, 440, 650 Anti : 580, 1050/ 320, 550,93 Left : 510, 760, 1200, 1700/340, 660,11
Spindle speed steps 4 06-Apr 3 / / /
Dimensions of worktable 410*395mm 420*375mm 320X316mm 270*280/Φ330mm 196x196/230x230mm 200*200mm
Height 1350mm 1250mm 932mm 1230mm 815/825mm 767mm
Electric motor 1500W 8 1100W 6 750W 550 or 750W 370/550W 370/550W
Gross weight/Net weight 420/400kg 270/245kg 270/240kg 120/102kg 50/43kg.60/48kg 70/60kg
Size 100*65*145cm 82*58*130cm 90*65*112cm 73*54*133cm 61*44*91cm 60*37*69cm
Best Price Call Sales Call Sales Call Sales Call Sales Call Sales Call Sales


Click to Download Orion Catalog
