Banner Parrent Product Orion Drilling & Tapping Machine

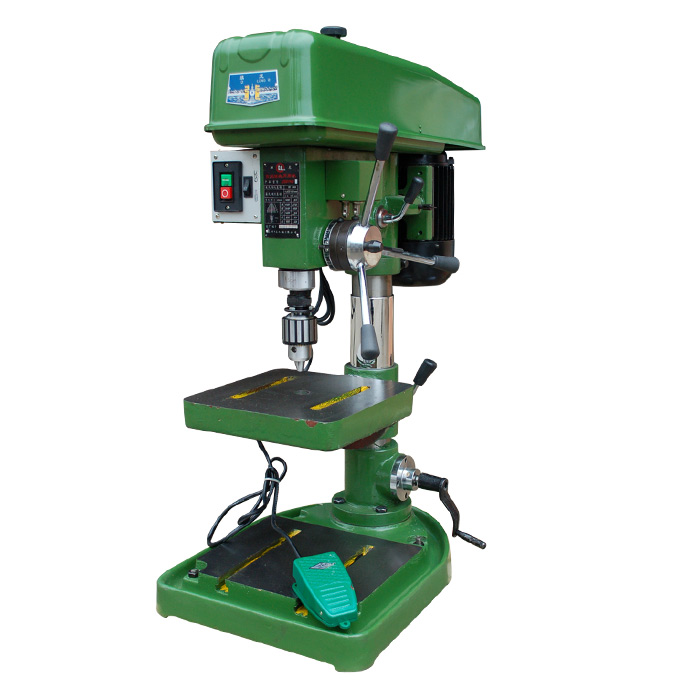

DRILLING & TAPPING MACHINE


TECHNICAL PARAMETERS

Model ZS4116B
Max tapping capacity (Cast iron/steel) M12/M10
Max spindle travel (mm) 100mm
Spindle speeds range 320, 530, 910, 1600, 2700
Distance from spindle nose to base 336~556mm
Outline dimension (L×W×H) 700×370×1037mm
Max drilling capacity 16mm
Taper of spindle nose MT.2
Distance spindle axis to column surface 193mm
Distance spindle nose to worktable 95~315mm
Motor power 750W
Net/Gross weight 100/120kg
Best Price:  Rp. 10.436.000,-


COMPARISON

  Model ZS-25 ZS4120 ZS4116B ZS4112C ZQS4116
  Max. borehole diameter (mm) 25 20 16 12 16
  Tapping the largest diameter (mm) M24/ M22 M16/ M14 M12/ M10 M10/ M8 M12/ M10
  Diameter of upright (mm) 102 85 70 70 70
  Maximum stroke of spindle (mm) 130 125 100 100 85
  Dist. from center line of spindle to surface of upright (mm) 230 240 193 193 180
  Spindle nose to table the maximum distance (mm) 750 367 315 315 400
  Distance from end face of spindle to base (mm) 990 630 556 556 560
  End taper of spindle MT.3 MT.2 MT.2 B16 B18
  Speed range of spindle (rpm) 160-1880 320-1320 320-2700 320-2700 250-2000
  Spindle speed steps 9 4 5 5 4
  Dimensions of worktable (mm) 340*360/Φ420 280*300 200*230 200*230 Φ260
  Dimensions of base worktop (mm) 300*330 315*335 280*260 280*260 220x220
  Height (mm) 1690 1127 1037 1037 956
  Electric motor 1500W 6 1100W 6 550W 6 550W 6 550W 6
  Gross weight/Net weight (kg) 220/195 200/145 120/100 120/100 93/72
  Size (cm) 91*58*180 90*56*108 80*46*90 80*46*90 79*44*110
Best Price Rp. 24.203.000,- Rp. 14.211.000,- Rp. 10.436.000,- Rp. 9.659.000,- Call Sales
