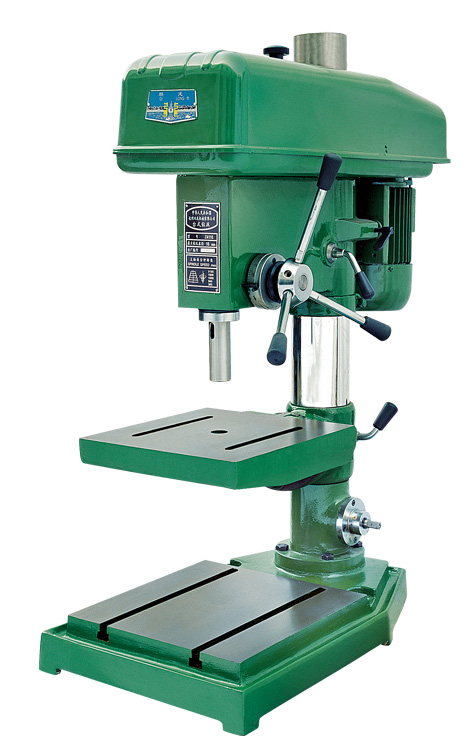

Heavy Duty Industrial Bench Drill



Main Application and Applicable Scope

This machine tool is used to drill, flare and ream holes on common metal and nonmetal materials, and is applicable to single or batch production in instrument industry, machinery manufacturing and repair shop.

TECHNICAL PARAMETERS

Model Z4116L
Spindle travel 200mm
Distance spindle nose to worktable surface 149-530mm
Taper of spindle MT.2
Dimension of worktable surface 280*300mm
Main motor 1100W
Net/Gross weight 180/210kg
Max drilling capacity 16mm
Distance spindle axis to column surface 240mm
Distance spindle nose to base table 412-793mm
Spindle speeds range 145, 290, 375, 360, 580, 900, 1520, 2130, 2830r/min
Dimension of base table 315*335mm
Outline dimension (L*W*H) 900*500*1400mm
Best Price:  Rp. 13.323.000,-


COMPARISON

Model ZB-25II ZB-25 ZB-20/ZB-20II ZB-16 ZQS4116 Z4116L Z4120
Max. borehole diameter (mm) 25 25 20 16 12.7 16 20
Diameter of upright (mm) 102 102 85 90 70 85 85
Maximum stroke of spindle (mm) 130 130 120 105 90 200 125
Dist. from center line of spindle to surface of upright (mm) 230 230 242.5 220 193 240 240
Spindle nose to table the max. distance (mm) 600 750 540 430 / 530 367
Distance from end face of spindle to base (mm) 1100 990 820 620 450 793 630
End taper of spindle MT.3 MT.3 MT.2 MT.2 B16 MT.2 MT.2
Speed range of spindle (rpm) 230-2160 230-2160 365-1800 290-2000 480-2300 145-2830 365-3150
Spindle speed steps 6 6 4 6 4 9 5
Dimensions of worktable (mm) 380*330/ 340*360/ 250*290 270*280/ / 280*300 280*300
Dimensions of base (mm) 324*300 324*300 316*320 245*245 260*300 315*335 315*335
Height 1680 1550 1170 1060 930 1423 1127
Electric motor 1500W 4 1500W 4 1100W 4 750W 4 550W 4 1100W 750W
Gross weight/Net weight (kg) 300/ 280 280/ 250 220/ 200 140/ 120 130/ 110 210/ 180 200/ 145
Size (cm) 91*58*180 91*58*180 90*60*160 77*46*116 81*56*118 95*56*142 90*56*108
Best Price Call Sales Call Sales Call Sales Call Sales Call Sales Rp. 13.323.000,- Call Sales

COMPARISON

Model Z4116 Z4120B/Z4125B Z516/Z516 Z512/Z512B Z406/Z406C Z406B ZWG-4B
Max. borehole diameter (mm) 16 20/25 16 12.7 6 6 4
Diameter of upright (mm) 85 80 70 70 50 50 40
Maximum stroke of spindle (mm) 125 100 100 100 60 65 40
Dist. from center line of spindle to surface of upright (mm) 240 202.5 193 193 140 140 127
Spindle nose to table the max. distance (mm) 367 315 326 326 / / /
Distance from end face of spindle to base (mm) 630 556 550 556 225 225 170
End taper of spindle MT.2 MT.2/MT.3 B18/MT.2 B.16 B10 B10 B10
Speed range of spindle (rpm) 365-3150 480-3200 480-4100 480-4100 1400-560 2000-12000 2800-9000
Spindle speed steps 5 5 5 5 3 3 3
Dimensions of worktable (mm) 280*300 265*265 265*265 265*265 / / /
Dimensions of base (mm) 315*335 300*258 300*258 300*258 200*200 200*200 180*175
Height 1127 1037 1037 1037 556/ 606 556/ 606 618
Electric motor 750W 750W 550W 370W 250W 250W 180W
Gross weight/Net weight (kg) 200/ 145 130/ 110 120/ 100 120/ 100 50/ 38 50/ 38 25/ 22.5
Size (cm) 90*56*108 80*46*99 80*46*99 80*46*99 64*33*61 64*33*61 52.5*33*27
Best Price Call Sales Call Sales Call Sales Call Sales Call Sales Rp. 13.323.000,- Call Sales
