Jual Double Girder Crane, Harga Double Girder Crane, Podem Double Girder Crane Murah


Double girder bridge cranes find application when greater capacities are requested and with high operation requirements. In equal conditions double girder bridge cranes offer higher lifting heights. The main Podem crane kits features are reliability, safety and attractive cost effectiveness intended to crane manufacturers or crane service providers. Podemcrane is clearly the biggest hoist manufacturer in Central and Eastern Europe and has remained one of the most progressive companies in the industry. We are designing reliable products reflecting our customers individual needs. We have experienced engineers who make sure our production is efficient and well controlled. Product testing and quality control remain of great importance. Our production factory spreads on a territory of 30.000 sq.m. All our products meet the European Union health and safety requirements in compliance with Machinery Directive 2006/42/E

JUAL DOUBLE GIRDER CRANE - 2000 to 50000 Kg

Spesifikasi Wire Rope Hoist Low Headroom

Double Girder Crane

Features & Reliability

Podemcrane oﬀers wide range of components for new cranes as well as for modernization of existing crane systems: standard and custom-built cranes. Components can be individually engineered to suit diﬀerent requirements. All our products and components are designed, engineered and manufactured in Europe, compliance with the European standards and bear the CE mark.

Podemcrane crane components follow latest innovations in the ﬁeld of crane building using 55-years experience and know-how of worldwide partners. The main Podem crane kits features are reliability, safety and attractive cost eﬀectiveness intended to crane manufacturers or crane service providers.

Standard Podem Crane Kits:

Hoist unit including trolley mechanism and electrical control panel.
End-carriages with plates, buffers and travel drives.
Crane Control Panel, Control (RRC or pendant).
Festoon system - preassembled.
Drawings for main girder fabrication.
Lights, towing arms, panel holders, etc.

Optional Devices for Podem Crane Kit:

Bus-bar Conductor Systems.
Inverter control for lifting.
Anti-collision devices.
Load LED display.
Horn.
Energy drag chain.
Crane spot lights, etc.

Double Girder Crane Components:

Low-Headroom or Normal Headroom Monorail Hoist
Plug&Play Assembly Quick Plug in connector, all cables are with plugs and labeled connections.
Lifting Reducer Planetary gearboxes developed specially for lifting mechanism offers high reliability and compact size. Lubricated for life for minimum maintenance.
Lifting Motor Cylindrical or Conical. Dual or Single speed. Optional inverter control for smooth acceleration of lifting speed. Overheat protection prevents motor's damage.
Radio Remote Control or Independent Pendant Series Air 8 is a reliable model with compact-size, ergonomic handsets, safety functions and easy installation. Back-up pendant (connected to the control panel) is very reliable, with ergonomic compact design and easy for handling and operation.
Travel Limit Switches Travel limit switches for cross and long travel - pre- and limit switching in both directions of travel.
Festoon System European made cable carrying line (in galvanized steel or in stainless steel) is a handy, efficient and safe system for electrical distribution.
Maintanence Plafform Safety and Easy for assembling.
Double Rail Crab With one or two lifting mechanisms.

Rope Guide Made of tough fiber-plastic or metal guaranties reliable operation even in critical environments. Rollers mounted on anti-friction bearings allows smooth rope lead and prolongs the life of the rope.
Contactor Control The high quality contactor control for reliable performance in any conditions.
Over-load Limiter All hoists are endowed with overload limiter are with 2 reaction thresholds: Warning and Stop. Optional: monitoring system or load display. Advantages for maintenance: the operating data of the hoist can be read out with a laptop.
End-carriages End-carriages for EOT cranes with wheel diameters from 125 mm to 500 mm. Beam Connection Plates and buffer-stops are supplied as standard. End-carriages for suspension cranes – spans up to 20 m, up to 12,5 t.
Crane travel Drives Low-maintenance drives with inverter as standard.

Description

Kits & Trolleys

Standard Product Table

Double Girder Cranes are applied when greater capacity is required and also for all heavy duty applications. In equal conditions double girder cranes offer greater lifting heights.

Advantages for the customer:

Reduced transport costs
Reduced manufacturing costs of the entire crane by using the preset components
Reduced on-side installation time by Plug&Play Podem crane kit because of less working steps and prepared cables and connections

M7501

Capacity	: 20 Ton
Hook Travel	: 6.5 m
Hoist Motor	: 15 Kw*max.
Traversing Speed	: 20/6 m/min

Learn More

M7502

Capacity	: 20 Ton
Hook Travel	: 9 m
Hoist Motor	: 15 Kw*max.
Traversing Speed	: 20/6 m/min

Learn More

M7503

Capacity	: 20 Ton
Hook Travel	: 12.5 m
Hoist Motor	: 15 Kw*max.
Traversing Speed	: 20/6 m/min

Learn More

M7504

Capacity	: 20 Ton
Hook Travel	: 16 m
Hoist Motor	: 15 Kw*max.
Traversing Speed	: 20/6 m/min

Learn More

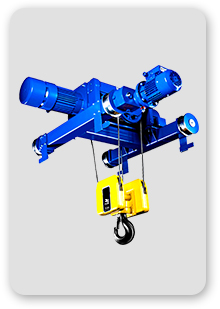

Electric Wire Rope Hoists

Features

Podem’s wire rope hoist range provides solutions for cranes and replacement applications. There are two series M and MT from 0.8 to 50 t, covering the light, medium and heavy operation modes. A wide range of lifting speeds and lifting heights is available.

Lifting reducer

Planetary gearboxes (2 or 3 stages) developed specially for lifting mechanism offers high reliability and compact size, many options for lifting speeds and low noise level (79-82dB). Lubricated for life for minimum maintenance.

Self breaking lifting motor

3 phase asynchronous electric motors with cylindrical rotor and build-in DC disc brake are available for single or dual speed option. Single polarity motor allows inverter control for smooth acceleration and deceleration of lifting speed.

Wire rope guide

The rope guide consists of three parts: the guide ring, pressure spring and rollers. The pressure spring ensures that the rope sits correctly into the drum groove whilst the guide ring always maintains the rope in the correct position.

Over-load limiter

Dynamometric pin overload limiter. It is optional with many extra features: Load spectrum/ measuring device, lifting calculation etc. All hoists are endowed with overload limiter are with 2 reaction thresholds.

The Body

Stable construction provides reliable and precise operation of the whole mechanism. Precision body component assembling and high quality and controlled welding. Processing of the body on one place.

Control panel

Every hoist is equipped with high quality full-set control panel. Any special requirement (wireless push button, inverters) can be included under request.
