JUAL SUBMERSIBLE PUMP


Jual Verpo Pump Dengan Kualitas Terbaik - Verpo Pump adalah pompa terbaik. Produk Verpo Pump mengedepankan desain dan kualitas. Dengan pengalaman hampir 20 tahun dalam dunia pompa, Verpo Pump telah berhasil mengeluarkan produk-produk berkualitas terbaik dengan teknologi canggih. Verpo Pump adalah produk yang sangat spesial, dibuat menggunakan material dan teknologi terbaru yang menjadikan produk Verpo Pump bisa menjadi pilihan utama untuk membantu kelangsungan opersional bisnis anda. Desain yang kokoh, memberikan kesan Heavy Duty untuk setiap produk. Dapatkan segera produk Verpo Pump Hanya di PT. Indotara Persada.

5VSD

SPECIFICATION

Applications
For water supply from wells or reservoirs
For domestic use,for civil and industrial applications
For garden use and irrigation
Operating Conditions
Maximum fluid temperature up to +35°C
Maximum sand content	:	0.25%
Maximum immersion	:	80m
Minimum well diameter	:	5"
Motor and Pump
Rewindable motor
Single-phase	:	220-240V/50Hz
Three-phase	:	380-415V/50Hz
Equip with start control box or digital auto-control box
Curve tolerance according to ISO 9001
Options On Request
Special mechanical seal
Single phase motor with built-in capacitor

*Price Include Tax

Best Price : Call Sales

VERPO PUMP :
HIGH QUALITY, HEAVY DUTY, HIGH-QUALITY, RELIABLE MACHINERY
PROVIDE THE BEST WARRANTY IN THE INDUSTRY.

Components	Material
Pump external casing	AISI 304 SS
Delivery casing	Cast-Cu ASTM C85500
Suction lantern	Cast-Cu ASTM C85500
Diffuser	Plastic.PC
Impeller	Plastic.POM
Shaft	AISI 304 SS
Shaft coupling	AISI 304 SS
Wear ring	AISI 304 SS
Motor external casing	AISI 304 SS
Top chock	1. Cast-Cu ASTM C85500
Top chock	2. Cast-iron ASTM NO.30
Bottom support	AISI 304 SS
Mechanical seal	Special seal for deep well (Graphite-Ceramic/TC)
Shaft	AISI 304 SS-ASTM 5140
Bearing	NSK
Seal lubricant oil	Oil for food machinery and pharmaceutic use.

5VSD12

PERFORMANCE DATA

MODEL		P2		Delivery n=2850 1/min
1~220-240V	3~380-415V	KW	HP	Q m³/h L/min	0	3	6	9	12	15	18
1~220-240V	3~380-415V	KW	HP	Q m³/h L/min	0	50	100	150	200	250	300
5VSDM12/5	5VSD12/5	2.2	3	H (M)	56	50	46	41	34	25	14
5VSDM12/7	5VSD12/7	3	4		79	71	65	58	48	35	20
5VSDM12/10	5VSD12/10	4	5.5		113	101	92	82	68	50	28
-	5VSD12/13	5.5	7.5		147	131	120	107	88	65	36
-	5VSD12/17	7.5	10		192	171	157	140	116	85	48
-	5VSD12/21	9.2	12.5		237	212	194	173	143	105	59
-	5VSD12/25	11	15		282	252	231	206	170	125	70

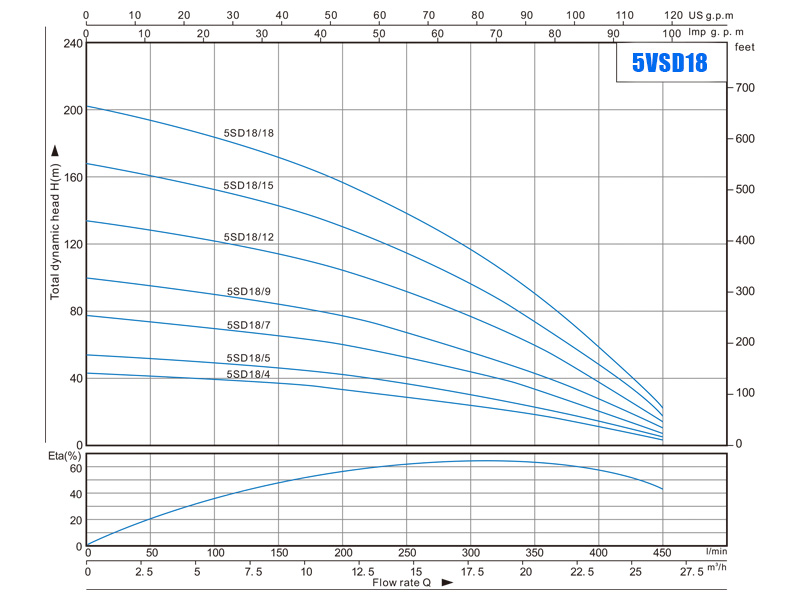

5VSD18

PERFORMANCE DATA

MODEL		P2		Delivery n=2850 1/min
1~220-240V	3~380-415V	KW	HP	Q m³/h L/min	0	3	6	9	12	15	18	21	24	27
1~220-240V	3~380-415V	KW	HP	Q m³/h L/min	0	50	100	150	200	250	300	350	400	450
5VSDM18/4	5VSD18/4	2.2	3	H (M)	45	43	41	38	35	31	26	20	14	6
5VSDM18/5	5VSD18/5	3	4		56	54	51	48	44	39	33	25	17	7
5VSDM18/7	5VSD18/7	4	5.5		79	75	72	67	61	54	46	35	24	10
-	5VSD18/9	5.5	7.5		101	97	92	86	79	70	59	45	30	12
-	5VSD18/12	7.5	10		135	129	123	115	105	93	79	61	41	17
-	5VSD18/15	9.2	12.2		168	162	153	144	132	117	98	76	51	21
-	5VSD18/18	11	15		202	194	184	173	158	140	118	91	61	25

5VSD24

PERFORMANCE DATA

MODEL		P2		Delivery n=2850 1/min
1~220-240V	3~380-415V	KW	HP	Q m³/h L/min	0	3	6	9	12	15	18	21	24	27	30	33
1~220-240V	3~380-415V	KW	HP	Q m³/h L/min	0	50	100	150	200	250	300	350	400	450	500	550
5VSDM24/3	5VSDM24/3	2.2	3	H (M)	33	32	31	30	29	27	25	23	20	16	12	7
5VSDM24/4	5VSDM24/4	3	4		44	43	42	40	38	36	34	30	26	22	16	10
5VSDM24/6	5VSDM24/6	4	5.5		66	64	62	60	58	54	50	46	40	32	24	14
-	5VSDM24/8	5.5	7.5		88	86	83	81	77	73	67	61	53	43	32	19
-	5VSDM24/10	7.5	10		110	107	104	101	96	91	84	76	66	54	40	24
-	5VSDM24/11	7.5	10		121	118	114	111	106	100	92	84	73	59	44	26
-	5VSDM24/13	9.2	12.5		143	140	135	131	125	118	109	99	86	70	52	31
-	5VSDM24/14	11	15		165	161	151	151	144	136	126	114	99	81	60	36

5VSD30

PERFORMANCE DATA

MODEL		P2		Delivery n=2850 1/min
1~220-240V	3~380-415V	KW	HP	Q m³/h L/min	0	5	10	15	20	25	30	35	40
1~220-240V	3~380-415V	KW	HP	Q m³/h L/min	0	83	167	250	333	417	500	583	667
5VSDM30/3	5VSD30/3	2.2	3	H (M)	33	32	30	28	26	23	20	16	11
5VSDM30/4	5VSD30/4	3	4		44	42	40	37	34	31	26	21	14
5VSDM30/5	5VSD30/5	4	5.5		55	53	50	47	43	38	33	26	18
-	5VSD30/6	5.5	7.5		66	63	60	56	52	46	40	32	22
-	5VSD30/8	7.5	10		88	85	80	75	69	61	53	42	29
-	5VSD30/10	9.2	12.5		110	106	100	93	86	77	66	53	36
-	5VSD30/12	11	15		132	127	120	112	103	92	79	63	43

VERPO SPECIAL FEATURES

Easy Operation
Features Highly Optimized Design
Heavy Duty Product
Best Components
Easy Maintenance
Efficient Power
Excellent Performance
Greatly Energy-Saving
Low Cost and High Profit
More Powerful Motor
Reliable & Durable
Silent Operation
