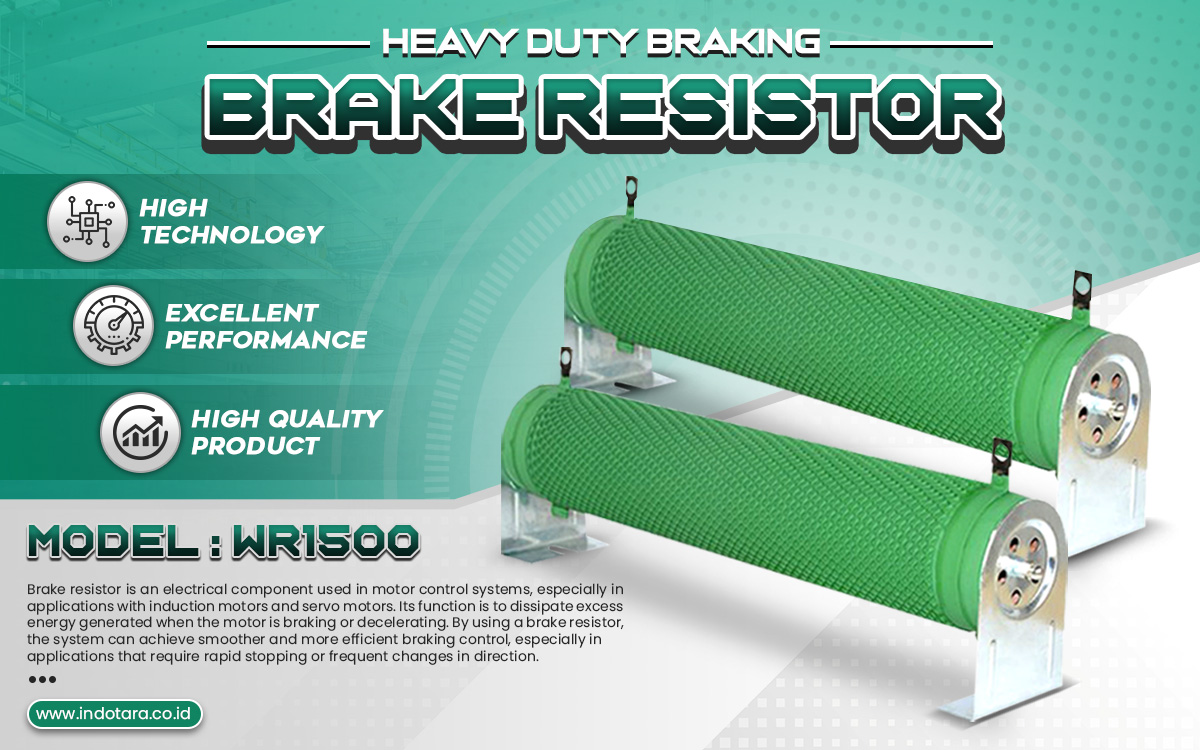

Braking Resistor - Brake resistor is an electrical component used in motor control systems, especially in applications with induction motors and servo motors. Its function is to dissipate excess energy generated when the motor is braking or decelerating. By using a brake resistor, the system can achieve smoother and more efficient braking control, especially in applications that require rapid stopping or frequent changes in direction.

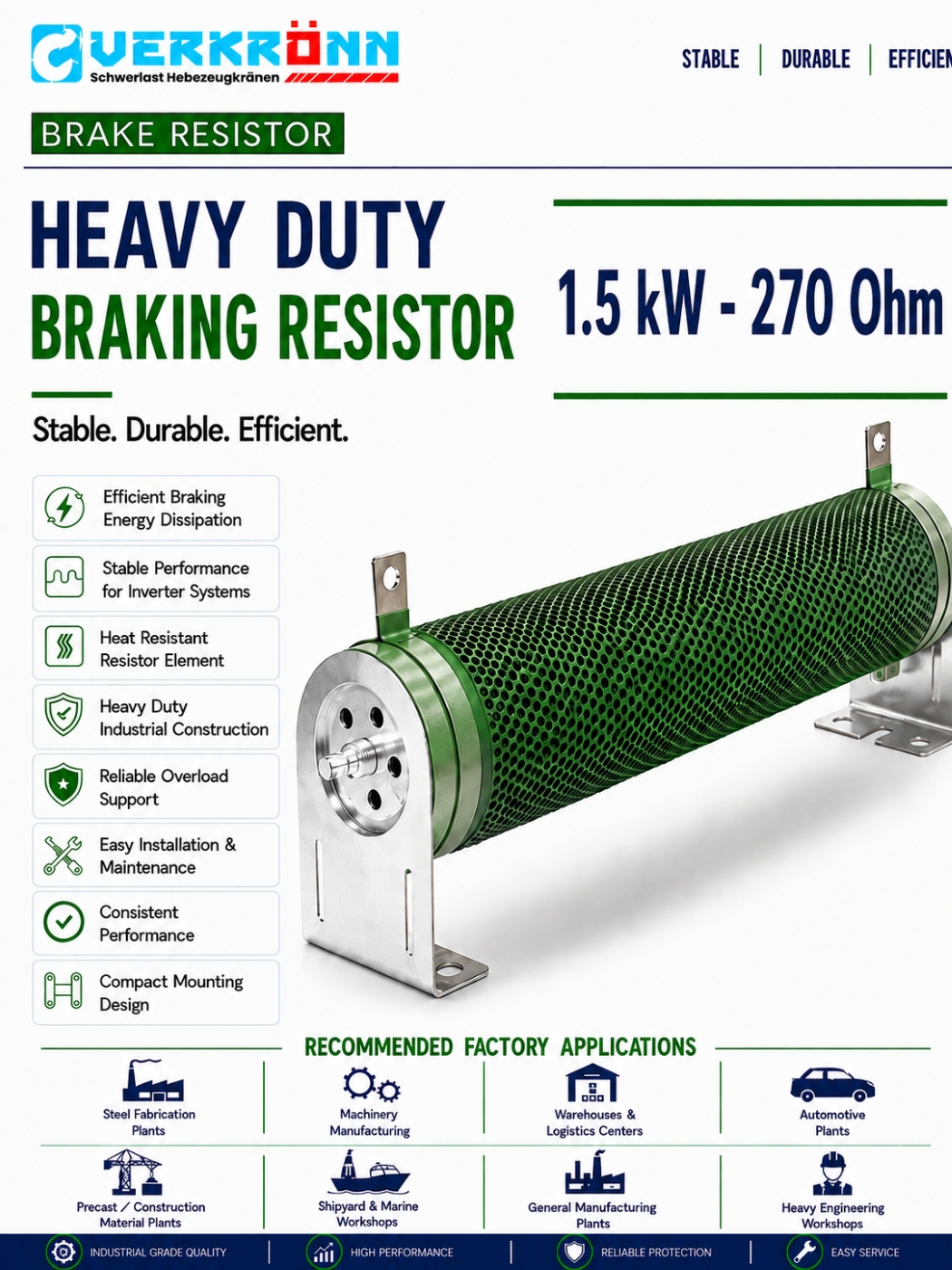

BRAKING RESISTOR - 1.5KW 270ohm
Product Specification
Best Price : Rp 434,057 / Unit
Promo Price : Rp 312,521 / Unit

* Price exclude PPN, Ex-Works Cikupa
* Price & Spec can be changed without prior notification

SKU - DHC-4
Powerflux Heavy Duty Braking Resistor
• Model : WR1500
• Type : Wire Wound Resistor
• Power Rating : 1.5 Kw
• Resistance @25°C : 270 ?
• Dimension (LxWxH) : 454x60x119 mm
• Tolerance : ±5%
• Temperature Cofficient : <20? : ± 400 ppm/°C
• Short Time Over Load : 10PR 5S,ΔR≤±(2%R+0.05?)
• Temperature Rise (Full Load) : 375°C
• Dielectric Strength : AC1000V 60S, ≤ 2.5mA
• Insulation Resistance : AC 500V ≥ 1000 M?
• Operating Temperature Range : -25°C to +255°C
Features
+ Compact construction form in a rectangular profile
+ Short-circuit proof
+ Self-extinguishing
+ IP40 Degree of Protection
+ Higher continuous dissipation
+ Can be fitted with a 180°C temperature switch
+ Extra Low Weight
+ Heavy Duty for harsh environment
+ Maintenance Free
+ Full Power Rating
+ Precise Resistance Rating
+ High Dielectric Strength
+ High Insulation Resistance
+ Wide Operating Temperature Range
+ High grade
+ High reliability
