Bitler Metal Cutting, Punching & Shearing - Band Saw BMBS-280G GC

Product Specification

SKU - DGM-39079

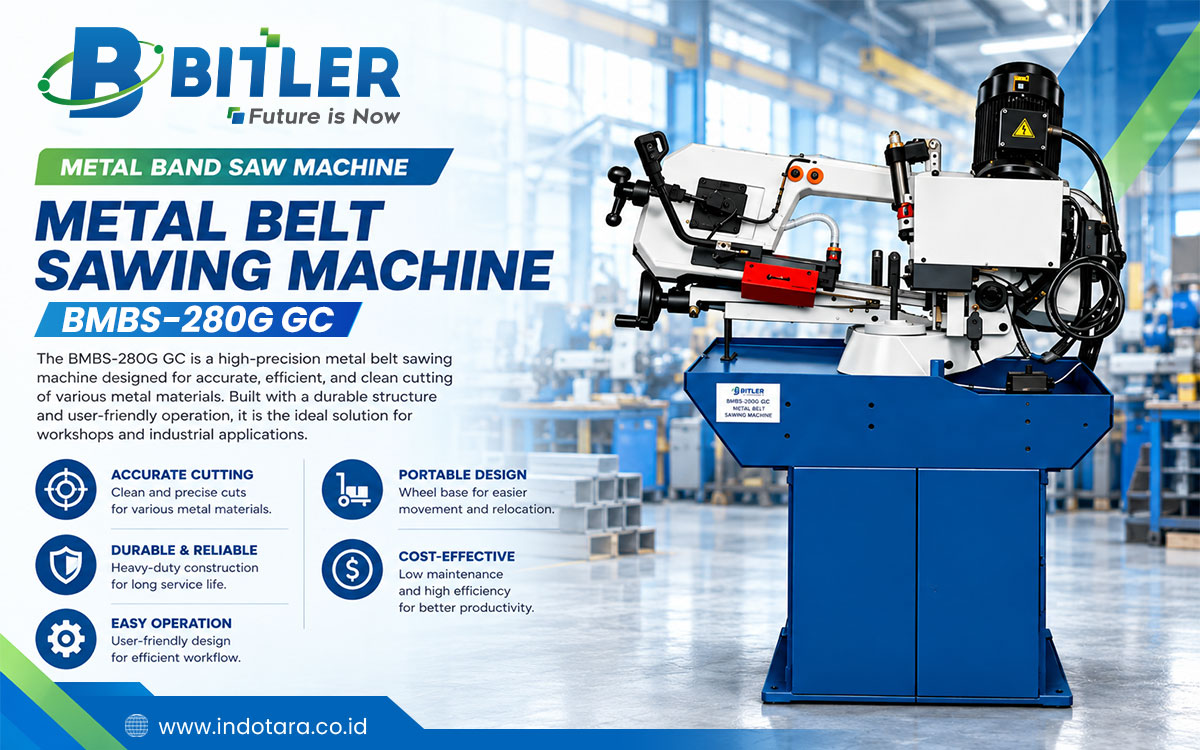

Bitler Metal Belt Sawing Machine
• Model : BMBS-280G
• 90? Circular : 220mm (8.6)
• 90? Rectangular : 250x155mm (10x6.1)
• 60? Circular : 100(4)
• 60? Rectangular : 80x95 (3.1x3.7)
• 45? Circular : 160mm (6)
• 45? Rectangular : 160x110 (6.3x4.3)
• Blade Speed 50Hz (mpm) : 40/80
• Blade Speed 60Hz (mpm) : 48/96
• Blade Size : 27x0.9x2450mm
• Main Motor Power : 0.75/1.1kw
• Driven : Gear
• Machine Weight : 254/287kg
• Overall Dimension (LxWxH) : 1330x800x1720mm
• Warranty : Mechanical 3 Years , Electrical 1 Years
Features
+ Blade guide bearing system by Nachi, Japan.
+ Drive belt technology by Optibelt, Germany.
+ Motor insulation material by Elantas, Germany.
+ Cutting blade material by Wikus, Germany.
+ Precision switch system by Saia-Burgess, Switzerland.
+ Structural steel material by SSAB, Sweden.
+ Industrial cable system by LAPP, Germany.
+ Cuts round material up to 220 mm at 90 degrees.
+ Cuts rectangular stock up to 250 x 155 mm at 90 degrees.
+ Supports angled cutting up to 45 degrees.
+ Three blade speeds suit different metal materials.
+ V-belt drive provides simple and reliable power transmission.
+ Compact machine size suits small workshops and job shops.
