Jib Cranes

Jib Crane dari Indotara memiliki system kerja sebagai alat angkut beban berat dan memiliki mesin yang sama seperti Hoist Crane, Penggunaan Jib Crane biasa diaplikasikan di area industri, pergudangan, Workshop, dan Pelabuhan, sehingga membantu dan mempermudah didalam proses pengangkatan benda-benda berat.

PT. Indotara Persada telah berpengalaman dalam implementasi Hoist Crane diberbagai perusahaan nasional dan multi nasional. Pengalaman bertahun - tahun membuat Indotara dipercaya menjadi mitra utama bagi setiap perusahaan yang ingin mengimplementasikan Hoist Crane. Indotara memiliki berbagai tipe hoist crane yang dapat disesuaikan dengan kebutuhan perusahaan anda, dengan didukung oleh layanan purna jual yang baik dan teknisi yang sudah berpengalaman.

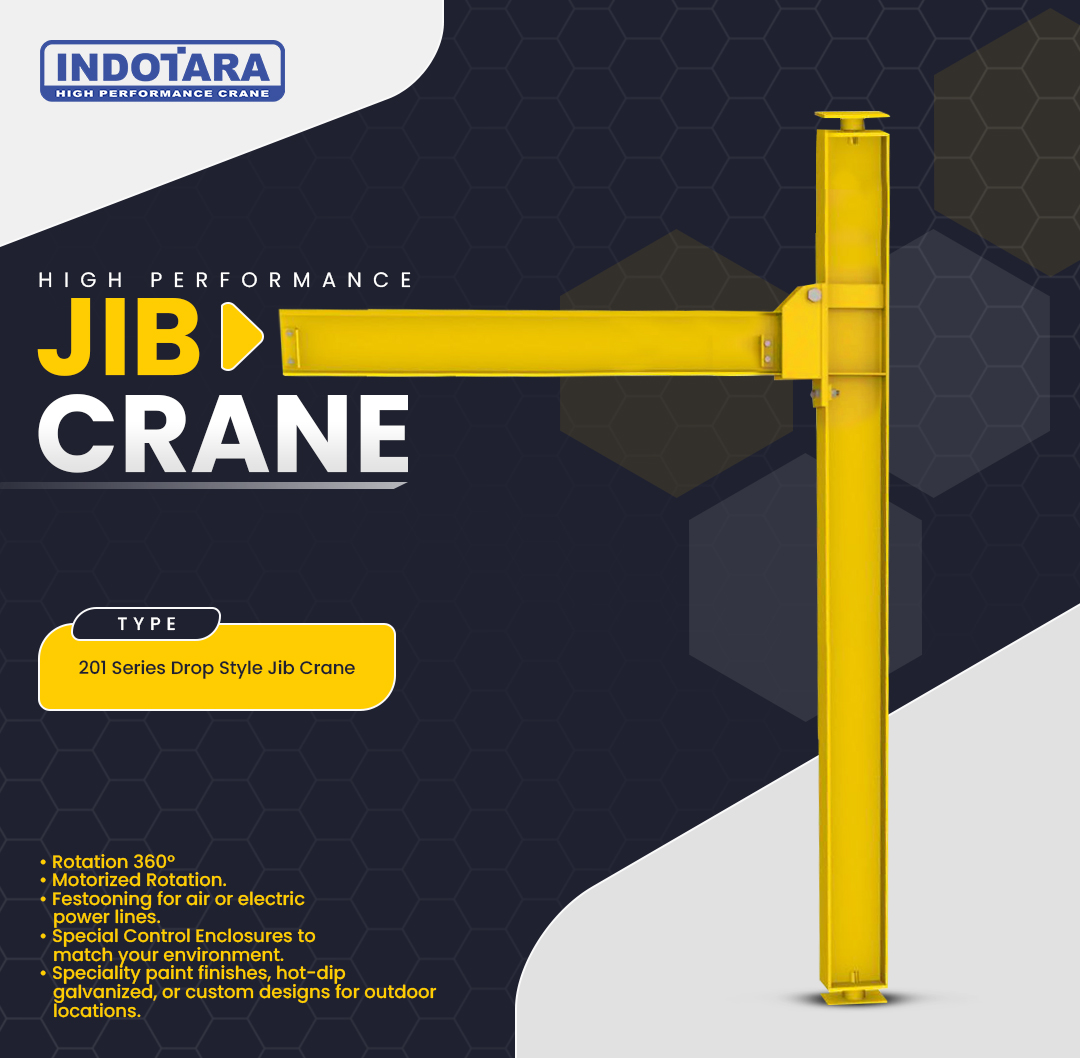

201 Series Drop Style Jib Crane
Mast Style Jib Crane

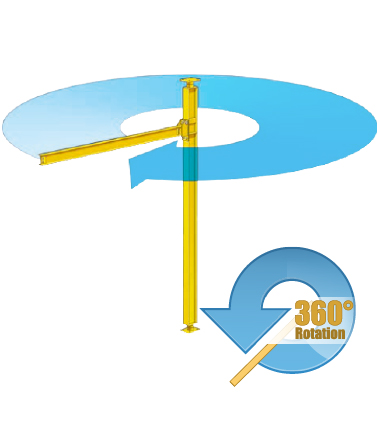

  • Rotation 360°
  • Motorized Rotation.
  • Festooning for air or electric power lines.
  • Special Control Enclosures to match your environment.
  • Speciality paint finishes, hot-dip galvanized, or custom designs for outdoor locations.
  • Full Cantilever or
    Drop Cantilever
    Models

SPECIFICATION
Model : 201 Series Drop Cantilever
Key Feature : High Capacities, no foundation
Boom Rotation : 360º Rotation

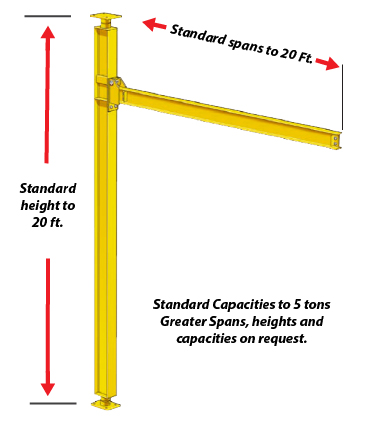

Capacity : Up to 5 Ton
Spans : Up to 20'
Beam Type : I-beam or Wide-Flange
Motorized Rotation : Chain & Sprocket
High Under Boom
: Up to 40' (Under Beam)
Foundation Requirements : No
Powered Rotation
: -
Warranty : 10 years construction
Price Call Sales

• Drop Cantilever

  • Are available with power rotation on all new models.
  • Bolted to the floor and existing overhead support structure (e.g., steel beams).
  • Provides clearance for overhead obstructions above the boom, below the top of the mast.
  • Require no special mounting foundation, only a standard 6 inch reinforced concrete floor.
  • Both bearing assemblies are provided with grease fittings for self-lubrication and to aid rotation.
  • Uses an I-beam or wide-flange beam (depending on size & Capacity) for the boom and H-beam for the column.
  • Identical to the Series 200 with the addition of side-plate connections which allow the boom to be mounted permanently at any specified height on the mast.

Mast Style Jib Crane

Mast Style Jib Crane


INDOTARA MAST-STYLE JIB CRANE :
HIGH QUALITY, HEAVY DUTY,UNSURPASSED PRECICION CRANE QUALITY, FULL-CANTILEVER DESIGN
PROVIDE THE BEST WARANTY IN THE INDUSTRY.










Jib Cranes















Indotara  Freestanding Jib Cranes install almost anywhere, including outside. These foundation-mounted, freestanding jibs offer highercapacities, longer spans and greater rotation than our wall-mounted jib cranes.







200 Series Mast Style Jib Crane


        Mast Style Jib Crane











  • Rotation 360°

  • Motorized Rotation.

  • Festooning for air or electric power lines.

  • Special Control Enclosures to match your environment.

  • Speciality paint finishes, hot-dip galvanized, or custom designs for outdoor locations.










  • Full Cantilever or
    Drop Cantilever
    Models






SPECIFICATION


































































Model : 200 Series Full Cantilever
Key Feature : High Capacities, no foundation
Boom Rotation : 360º Rotation
Capacity : Up to 5 Ton
Spans : Up to 20'
Beam Type : I-beam or Wide-Flange
Motorized Rotation : Chain & Sprocket
High Under Boom
: Up to 40' (Under Beam)
Foundation Requirements : No
Powered Rotation
: -
Warranty : -
Price Call Sales



• Full Cantilever











  • Two types of bearing arrangements.

  • Utilizes an I-beam for the boom and an H-beam for the column.


  • A self-aligning spherical bearing is used on the top bearing assembly.


  • A bronze bearing and bronze thrust washer are used on the bottom assembly.

  • The boom is mounted at the top of the mast in order to provide maximum underboom clearance.

  • Both bearing assemblies are provided with grease fittings to provide lubrication and to aid rotation.













Mast Style Jib Crane





INDOTARA MAST-STYLE JIB CRANE :
HIGH QUALITY, HEAVY DUTY,UNSURPASSED PRECICION CRANE QUALITY, FULL-CANTILEVE DESIGN
PROVIDE THE BEST WARANTY IN THE INDUSTRY.
