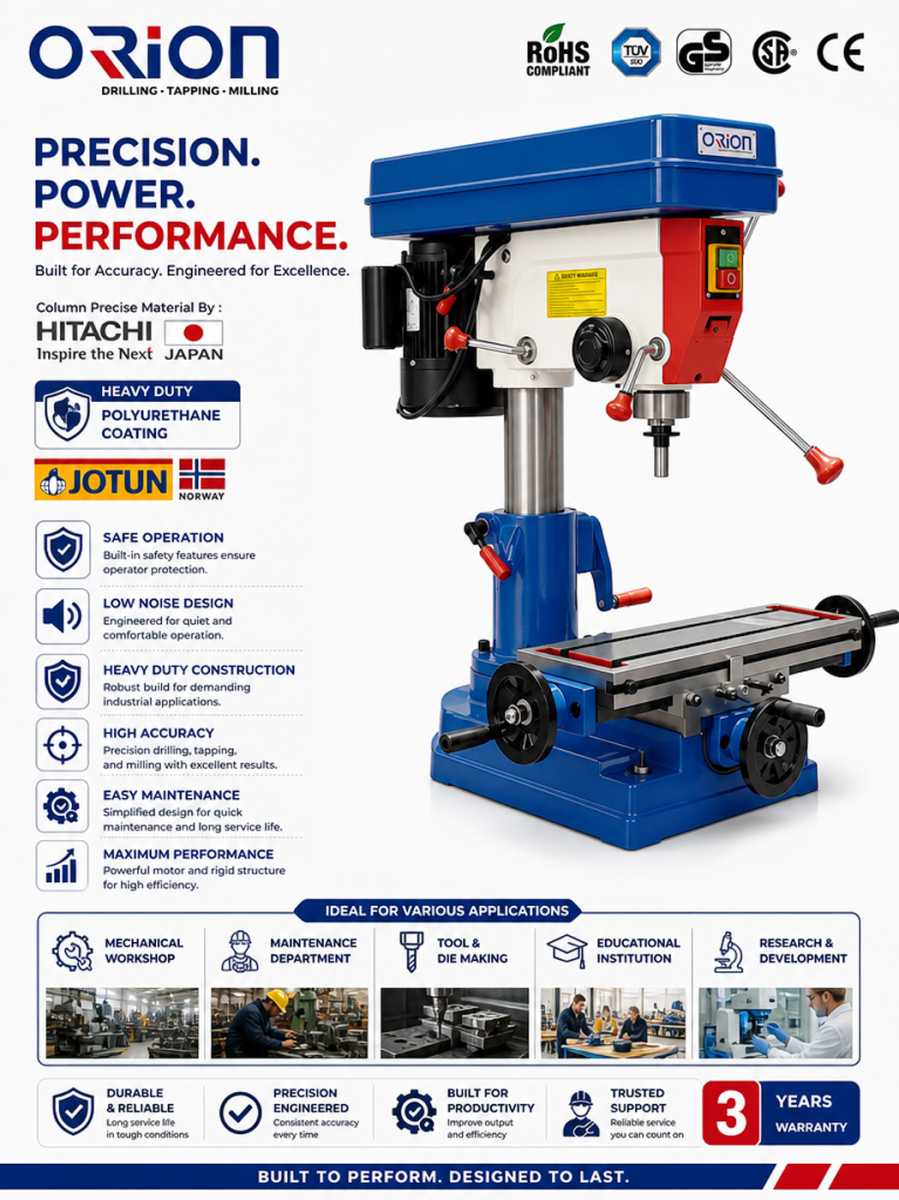

Orion Drilling & Milling Machine ZX7016 ZX With Stand
Product Specification
Best Price : Rp 12,864,291 / Unit
Promo Price : Rp 9,262,290 / Unit

* Price exclude PPN, Ex-Works Cikupa
* Price & Spec can be changed without prior notification

SKU - DCE-386
ORION Drilling & Milling Machine
• Model : ZX7016
• Spindle travel : 80mm
• Distance spindle axis to column surface : 182mm
• Motor power : 550W
• Power Supply : 1 Phase, 220(V)/50(hz)
• Max drilling capacity : 16mm
• Max face mill capacity : 40mm
• Diameter of vertical milling : 10mm
• Spindle taper : MT3
• Dimension of worktable surface : 420x125mm
• Travel worktable : 230x120mm
• Distance spindle nose to worktable : 360mm
• Spindle speeds range : 320 - 3300r/min
• Outline dimension (LWH) : 880x620x900mm
• Net/Gross weight : 75/80kg
• Warranty : Mechanical 36 Months , Electrical 12 Months
Features
+ Heavy duty Polyurethane coating by Jotun, Norway
+ Column precise material by Hitachi Alloy, Japan
+ Precision Gear by Neugart Gmbh., Germany
+ Safe design with international quality
+ Easy maintenance and low noise
+ Simple structure and less failure
+ High accuracy & precision
+ Heavy duty drilling & milling
+ Easy to operating
+ Continous working duty cycle
+ Low operating cost
+ Can do continous working
REQUEST QUOTE
Get your quotation less than 1 minute now!!


DRILLING & MILLING MACHINE SPECIAL FEATURES :
  • Jual Orion Drilling Machine, Light Bench Drill, Agen Drilling Machine

    Drilling & milling machines are equipped with hardened gears, large torque driven by B1 type driving 2x motor speed.

  • Jual Orion Drilling Machine, Light Bench Drill, Agen Drilling Machine

    Equipped with a machine that has been tested, powerful, easy to operate more simple, easy maintenance, and low noise.

  • Jual Orion Drilling Machine, Light Bench Drill, Agen Drilling Machine

    Drillin & milling machine uses a tapping chuck that changes quickly, the tap is easier to change. And clamp firmly.

  • Jual Orion Drilling Machine, Light Bench Drill, Agen Drilling Machine

    Positioning accuracy and ground speed, which can be applied in component processing with multiple threads.

  • jual-electric-motor-fujita-electric-motor-electric-motor

    Has an electromechanical integration design to ensure a compact structure and easy to operate motor drive.

  • Jual Orion Drilling Machine, Light Bench Drill, Agen Drilling Machine

    Wth international quality standards prove to be the best drilling machine of all time. Orion is the best choice.

  • Jual Orion Drilling Machine, Light Bench Drill, Agen Drilling Machine

    Is very easy to install and easy to operate, so lighter work saves time, saves money and saves energy.

  • Jual Orion Drilling Machine, Light Bench Drill, Agen Drilling Machine

    The shaft parts are made by high quality steel surface material specially made by first-class equipment, high strength and longer durability.

  • Jual Orion Drilling Machine, Light Bench Drill, Agen Drilling Machine

    Used in the conversion industry, i.e. the conversion of large numbers of lathes capable in various service shops, factories, etc.

  • Jual Orion Drilling Machine, Light Bench Drill, Agen Drilling Machine

    Does not use too much electric power, which will certainly save you money.

  • Jual Orion Drilling Machine, Light Bench Drill, Agen Drilling Machine

    Very easy to apply so it is very suitable for your business needs.

  • Jual Orion Drilling Machine, Light Bench Drill, Agen Drilling Machine

    Drilling & milling machine systems provide a one-year guarantee

    With wide range of  speed, with manual, power feeds. The feed of machines are very easily engaged and disengaged at anytime.
