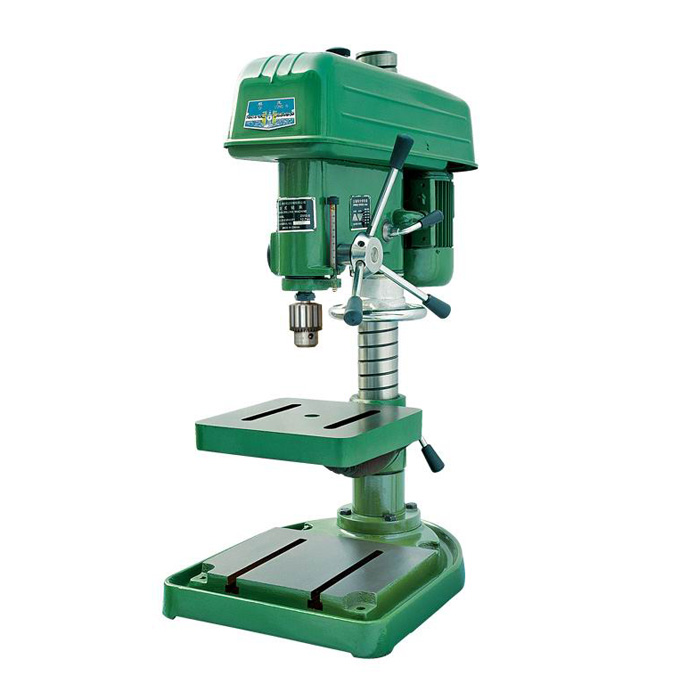

Orion Drilling Machine - Industrial Bench Drill - Z512-2/Z512-2A

Banner Parrent Product Industrial Bench Drill

Heavy Duty Industrial Bench Drill

TECHNICAL PARAMETERS

Model	Z512-2A
Spindle travel	100mm
Distance spindle axis to column surface	193mm
Dimension of base table	300*250mm
Distance spindle nose to base	556mm
Motor power	370W
Net/Gross weight	100/120kg
Max drilling capacity	12.7mm
Spindle taper	B16
Dimension of worktable surface	265*265mm
Distance spindle nose to worktable	330mm
Spindle speeds range	480 - 4100r/min
Outline dimension (LWH)	6883801037mm

Best Price: Rp. 7.450.000,-

COMPARISON

Model	ZB-25II	ZB-25	ZB-20/ZB-20II	ZB-16	ZQS4116	Z4116L	Z4120
Max. borehole diameter (mm)	25	25	20	16	12.7	16	20
Diameter of upright (mm)	102	102	85	90	70	85	85
Maximum stroke of spindle (mm)	130	130	120	105	90	200	125
Dist. from center line of spindle to surface of upright (mm)	230	230	242.5	220	193	240	240
Spindle nose to table the max. distance (mm)	600	750	540	430	/	530	367
Distance from end face of spindle to base (mm)	1100	990	820	620	450	793	630
End taper of spindle	MT.3	MT.3	MT.2	MT.2	B16	MT.2	MT.2
Speed range of spindle (rpm)	230-2160	230-2160	365-1800	290-2000	480-2300	145-2830	365-3150
Spindle speed steps	6	6	4	6	4	9	5
Dimensions of worktable (mm)	380*330/	340*360/	250*290	270*280/	/	280*300	280*300
Dimensions of base (mm)	324*300	324*300	316*320	245*245	260*300	315*335	315*335
Height	1680	1550	1170	1060	930	1423	1127
Electric motor	1500W 4	1500W 4	1100W 4	750W 4	550W 4	1100W	750W
Gross weight/Net weight (kg)	300/ 280	280/ 250	220/ 200	140/ 120	130/ 110	210/ 180	200/ 145
Size (cm)	9158180	9158180	9060160	7746116	8156118	9556142	9056108
Best Price	Call Sales	Call Sales	Call Sales	Call Sales	Call Sales	Rp. 15.152.000,-	Call Sales

COMPARISON

Model	Z4116	Z4120B/Z4125B	Z516/Z516	Z512/Z512B	Z406/Z406C	Z406B	ZWG-4B
Max. borehole diameter (mm)	16	20/25	16	12.7	6	6	4
Diameter of upright (mm)	85	80	70	70	50	50	40
Maximum stroke of spindle (mm)	125	100	100	100	60	65	40
Dist. from center line of spindle to surface of upright (mm)	240	202.5	193	193	140	140	127
Spindle nose to table the max. distance (mm)	367	315	326	326	/	/	/
Distance from end face of spindle to base (mm)	630	556	550	556	225	225	170
End taper of spindle	MT.2	MT.2/MT.3	B18/MT.2	B.16	B10	B10	B10
Speed range of spindle (rpm)	365-3150	480-3200	480-4100	480-4100	1400-560	2000-12000	2800-9000
Spindle speed steps	5	5	5	5	3	3	3
Dimensions of worktable (mm)	280*300	265*265	265*265	265*265	/	/	/
Dimensions of base (mm)	315*335	300*258	300*258	300*258	200*200	200*200	180*175
Height	1127	1037	1037	1037	556/ 606	556/ 606	618
Electric motor	750W	750W	550W	370W	250W	250W	180W
Gross weight/Net weight (kg)	200/ 145	130/ 110	120/ 100	120/ 100	50/ 38	50/ 38	25/ 22.5
Size (cm)	9056108	804699	804699	804699	643361	643361	52.53327
Best Price	Call Sales	Call Sales	Call Sales	Call Sales	Call Sales	Rp. 15.152.000,-	Call Sales
