BITLER Bench Lathe - Dengan pengalaman hampir 20 tahun dalam dunia manufaktur kami telah berhasil mengeluarkan produk-produk berkualitas terbaik dengan teknologi canggih, Bitler Heavy Duty Lathe Machine adalah produk yang sangat spesial, dibuat menggunakan material dan teknologi terbaru yang menjadikan produk Bitler Lathe Machine bisa menjadi pilihan utama untuk membantu kelangsungan opersional bisnis anda, Desain yang kokoh, memberikan kesan Heavy Duty untuk setiap produk yang kami hasilkan, dapatkan segera produk Bitler Lathe Machine Hanya di PT. Indotara Persada.

PT. Indotara persada didukung oleh teknisi yang handal, garansi yang panjang, design produk yang elegan, harga yang ekonomis, spare part tersedia dan jaminan after sales terbaik. Produk yang kami tawarkan bisa menjadi pilihan terbaik dan mendukung kemajuan bisnis Anda.
Bitler Bench Lathe Machine BWM0636Bx1000 - 3 Phase WM
Product Specification
Best Price : Rp 119,556,914 / Unit
Promo Price : Rp 86,080,978 / Unit

* Price exclude PPN, Ex-Works Cikupa
* Price & Spec can be changed without prior notification

SKU - DGM-19550

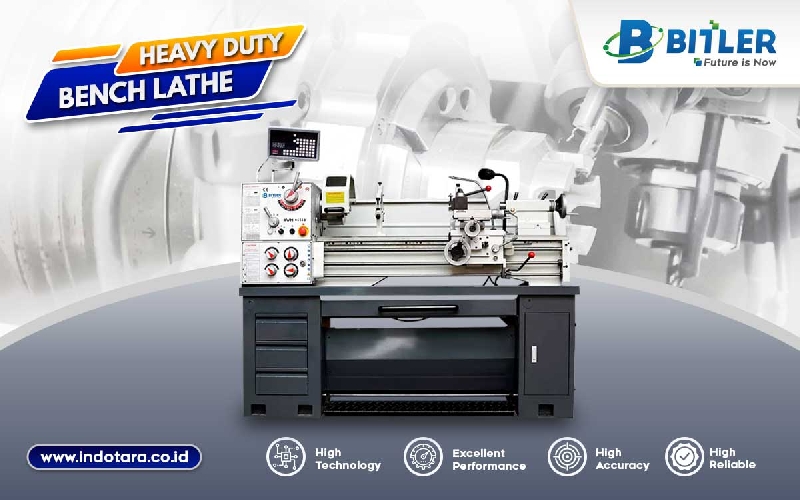

BITLER Bench Lathe Machine
• Model : BWM0636Bx1000
• Swing over bed : 360mm
• Swing over cross slide : 212mm
• Swing over gap : 491mm
• Distance between centers : 1000mm
• Width of Bed : 187mm
• Spindle bore : 52mm
• Taper of spindle bore : MT.5
• Spindle speeds : 90 - 2000rpm
• Metric threads : 0.4 - 7mm
• Inch threads : 4 - 56 TPI
• Tailstock quill taper : MT.3
• Motor power : 2KW 3Phase
• Net Weight : 650KG
• Packing dimension (mm) : 1940x750x1510
• Warranty : Mechanical 36 Months , Electrical 12 Months
Features
+ Heavy duty polyurethane coating by Jotun, Norway
+ Bearing by NSK, Japan
+ Ultra Precise Screwed Rod By HAGENKÖTTER GMBH, Germany
+ Gearbox Parts by Hitachi Alloy, Japan
+ Safe design with international quality
+ High accuracy & precision
+ Completed with Steady Rest
+ Heavy duty lathe machine
+ Easy maintenance and low noise
+ Simple structure and less failure
+ Spareparts Availability
+ Easy to operating
REQUEST QUOTE
Get your quotation less than 1 minute now!!

SPECIFICATION
MODEL
BWM 0636A / BWM 0636Bx1000mm
Max. swing over bed ɸ360mm
Max. swing over cross slide ɸ212mm
Max. swing over gap ɸ491mm
Distance between centers 1000mm
Bed width 187mm

Spindle bore and nose
A: ɸ38mm / D1-4 camlock
B: ɸ52mm / D1-5 camlock
Spindle taper A:MT5 B:MT6
Speeds number 8
Speeds range A:70-2000 rpm B:90-2000 rpm
Leadscrew thread 8 TPI or 3mm pitch
Max. section of tool 16x16mm
Thread metric pitches 36 Nos. 8-112 TPI
Thread imperial pitches 28 Nos. 0.2-5mm pitch or (26 Nos 0.47mm)
Longitudinal feeds imperial 36 Nos. 0.0019-0.0273"/Rev or (32 Nos. 0.002-0.548"/Rev)
Longitudinal feeds metric 36 Nos. 0.050-0.696"/Rev or (32 Nos 0.052-0.392"/Rev)
Cross feeds imperial 36 Nos.0.0006-0.0094"/Rev or (32 Nos. 0.007-0.0187"/Rev)
Cross feeds metric 36 Nos. 0.013-0.188"/Rev or (32 Not 0.014-0.380"/Rev)
Tailstock quill taper and travel A:MT3/100mm B:MT4/100mm
Main motor 1.5kw/3PH or 2.2kw/1PH
Cross slide travel 118mm
Compoud rest travel 68mm
N.W/G.W 650/700kg
Packing size 1940x750x1510mm

BITLER BENCH LATHE MACHINE PRODUCT:
HIGH QUALITY, HEAVY DUTY, HIGH PRECISION, RELIABLE MACHINERY
PROVIDE THE BEST WARRANTY IN THE INDUSTRY.

BITLER LATHE SPECIAL FEATURES :

  • Jual Bitler Lathe Machine

    Bitler Lathe Machine has a body made of high quality and anti-rust materials.

  • Jual Bitler Lathe Machine

    Bitler Lathe Machine is very stable and easily adaptable to various environmental conditions.

  • Jual Bitler Lathe Machine

    The Bitler Lathe Machine can produce optimal results quickly and is also very precise.

  • Jual Bitler Lathe Machine

    Bitler Lathe Machine at an affordable price and the quality of the machine is very strong and also saves electricity.

  • Jual Bitler Lathe Machine

    Bitler Lathe Machine uses high technology for maximum and fast results.

  • Jual Bitler Lathe Machine

    The Bitler Lathe Machine is a reliable and highly efficient lathe.

  • Jual Bitler Lathe Machine

    The Bitler Lathe Machine has high performance and is very accurate, powerful and fast.

  • Jual Bitler Lathe Machine

    Bitler Lathe Machine uses low electrical power so it is very energy efficient.

  • Jual Bitler Lathe Machine

    Bitler Lathe Machine uses a high-tech system with a high security system.

  • Jual Bitler Lathe Machine

    Bitler Lathe Machine is a machine that is very easy to operate with long durability, with low electrical power.

  • Jual Bitler Lathe Machine

    The Bitler Lathe Machine has easy machine maintenance and is easy to clean.

  • Jual Bitler Lathe Machine

    Bitler Lathe Machine has a machine that is able to work with long durability, strength and easy maintenance.

    With wide range of  speed, with manual, power feeds. The feed of machines are very easily engaged and disengaged at anytime.
