Jual Orion Lathe Machine
JUAL BITLER HEAVY DUTY LATHE MACHINE

Jual Bitler Heavy Duty Lathe Machine, Harga Bitler Heavy Duty Lathe Machine, Jual Bitler Heavy Duty Lathe Machine Dengan Harga Murah | Dengan pengalaman hampir 20 tahun dalam dunia manufaktur kami telah berhasil mengeluarkan produk-produk berkualitas terbaik dengan teknologi canggih, Bitler Heavy Duty Lathe Machine adalah produk yang sangat spesial, dibuat menggunakan material dan teknologi terbaru yang menjadikan produk Bitler Heavy Duty Lathe Machine bisa menjadi pilihan utama untuk membantu kelangsungan opersional bisnis anda, Desain yang kokoh, memberikan kesan Heavy Duty untuk setiap produk yang kami hasilkan, dapatkan segera produk Bitler Heavy Duty Lathe Machine Hanya di PT. Indotara Persada.

PT. Indotara persada didukung oleh teknisi yang handal, garansi yang panjang, design produk yang elegan, harga yang ekonomis, spare part tersedia dan jaminan after sales terbaik. Produk yang kami tawarkan bisa menjadi pilihan terbaik dan mendukung kemajuan bisnis Anda.

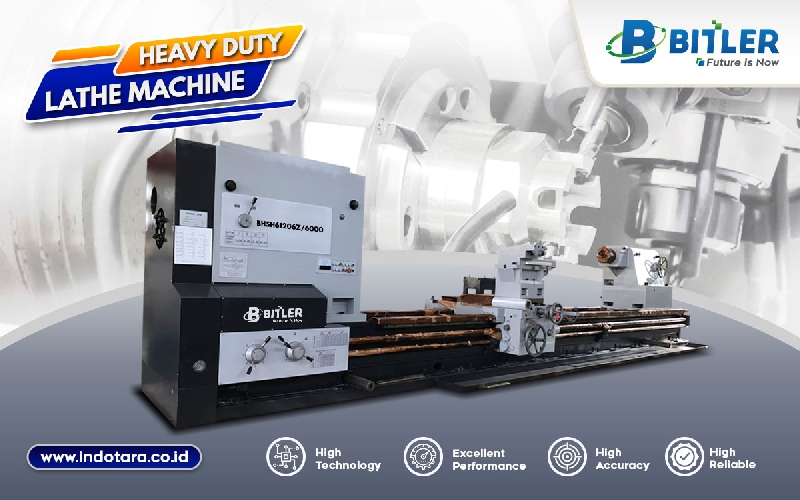

HEAVY DUTY LATHE MACHINE CW(20) SERIES

Jual bitler Heavy Duty Lathe Machine


SPECIFICATION
MODEL
BHS W61126 BHS W61146 BHS W61166 BHS W61186 BHS W61186
Max weight of workpiece 20t
Max swing over bed 1260mm 1460mm 1660mm 1860mm 2060mm
Max swing over cross slide 760mm 960mm 1160mm 1360mm 1560mm
Distance between centers 3000, 4000, 5000, 6000, 8000, 10000, 12000mm
Width of bed 1180mm
Spindle hole Φ105mm
Spindle taper Φ140mm
Spindle speeds 3-24;6-48;12-96;24-200r/min
Metric threads range (kinds) 1-60mm
Inch threads range (kinds) 1/2-30
Longitudinal feeds range (kinds) 0.1-6mm
Cross feed range (kinds) 0.05-3mm (38)
Rapid feed: long/cross 3400mm/min , 1700mm/min
Tool section 45x45mm
Cross slide travel 700mm 800mm
Compound rest travel 280mm
Tailstock diameter Φ280mm
Tailstock taper Φ100mm
Tailstock travel 300mm
Close-type steady rest Φ250-600mm
Open-type steady rest (optional) Φ450-780mm Φ550-1200mm
Main motor 55kw
Rapid feed motor 1.5kw
Tailstock motor 1.5kw



Distance between centers
Net weight Dimention (LxWxH)
2000mm   21000kg   7150x2200x1850mm
3000mm   22500kg   8150x2200x1850mm
4000mm   24000kg   9150x2200x1850mm
5000mm   25500kg   10150x2200x1850mm
6000mm   27000kg   11150x2200x1850mm
8000mm   30000kg   13150x2200x1850mm
10000mm   33000kg   15150x2200x1850mm
12000mm   36000kg   17150x2200x1850mm

Best Price : Call Sales

BITLER HEAVY DUTY LATHE MACHINE PRODUCT:
HIGH QUALITY, HEAVY DUTY, HIGH PRECISION, RELIABLE MACHINERY
PROVIDE THE BEST WARRANTY IN THE INDUSTRY.
BITLER LATHE SPECIAL FEATURES :

  • Jual Bitler Lathe Machine

    Bitler Lathe Machine has a body made of high quality and anti-rust materials.

  • Jual Bitler Lathe Machine

    Bitler Lathe Machine is very stable and easily adaptable to various environmental conditions.

  • Jual Bitler Lathe Machine

    The Bitler Lathe Machine can produce optimal results quickly and is also very precise.

  • Jual Bitler Lathe Machine

    Bitler Lathe Machine at an affordable price and the quality of the machine is very strong and also saves electricity.

  • Jual Bitler Lathe Machine

    Bitler Lathe Machine uses high technology for maximum and fast results.

  • Jual Bitler Lathe Machine

    The Bitler Lathe Machine is a reliable and highly efficient lathe.

  • Jual Bitler Lathe Machine

    The Bitler Lathe Machine has high performance and is very accurate, powerful and fast.

  • Jual Bitler Lathe Machine

    Bitler Lathe Machine uses low electrical power so it is very energy efficient.

  • Jual Bitler Lathe Machine

    Bitler Lathe Machine uses a high-tech system with a high security system.

  • Jual Bitler Lathe Machine

    Bitler Lathe Machine is a machine that is very easy to operate with long durability, with low electrical power.

  • Jual Bitler Lathe Machine

    The Bitler Lathe Machine has easy machine maintenance and is easy to clean.

  • Jual Bitler Lathe Machine

    Bitler Lathe Machine has a machine that is able to work with long durability, strength and easy maintenance.

With wide range of  speed, with manual, power feeds. The feed of machines are very easily engaged and disengaged at anytime.


HATI-HATI GUNAKAN SELALU BITLER LATHE MACHINE BERKUALITAS TERBAIK
  Bitler Lathe Machine  memiliki pengalaman meningkat selama bertahun-tahun sehingga berkualitas terbaik.
 Meningkatkan teknologi berkualitas tinggi untuk solusi yang profesional.
