HYDRAULIC WINCHES

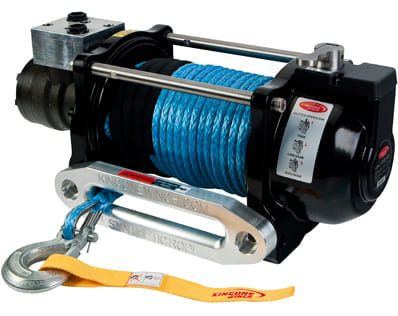

KINGONE WINCH - The winch offers seamless operation across its entire speed range, boasting a highly efficient motor that delivers constant operating torque. Its rotating ring gear clutch enables rapid wire rope payout with a pull and turn design. The winch features freespooling, power in/out, mechanical lock, stainless steel tie bars, and reversible mounting, providing versatility. It is a variable speed hydraulic winch.

  • Heavy duty series wound motor delivers superior torque output and faster line speed.
  • 3 stage planetary gearbox delivers the most reliable and durable performance of winch under the worst condition.
  • Automatic, double cone brake.
  • Rotating ring gear clutch have the freespooling positioned actually for the rapid payout of wire rope with ease.
  • Installation , operation and maintenance with ease.
Best Price CALL SALES

Product Detail

SPECIFICATION

Line pull : 756kgs/1,667lbs
Operation Pressure : 175bar/2,537psi
Max Oil Flow : 15.9g/min(60l/min)
Gear Ratio : Free 1:1(HIGH) 6:1(LOW)
Synthetic Rope Size : Φ11/31"×90'(Φ9.0mm×27.4m)
Drum Size : Φ2.5"×8.4"(Φ63.5mm×215mm)
Gear Train : Planetary

LINE PULL AND LINE SPEED

(1st layer of Synthetic Rope on the drum) (please use under when the max line pull is 10,000lbs, pressure is 175 bar and flow is 30l/min.)
Layer of Wire Rope Max Line Pull(1:1) Line Speed(1:1) Max Line Pull(6:1) Max Line Pull(6:1)
1 1,667Lbs/756Kgs 134.5FPM/41MPM 10,000Lbs/4,535Kgs 21.3FPM/6.5MPM
2 1,389Lbs/630Kgs 161FPM/49MPM 8,320Lbs/3,770Kgs 26.2FPM/8MPM
3 1,212Lbs/550Kgs 183.7FPM/56MPM 7,120Lbs/3,330Kgs 30.5FPM/9.3MPM
4 1,058Lbs/480Kgs 209FPM/64MPM 6,200Lbs/2,812Kgs 36.1FPM/11MPM
5 922Lbs/450Kgs 223FPM/68MPM 5,500Lbs/2,490Kgs 37FPM/11.3MPM

DIMENSION (mm)


STANDARD ACCESSORIES

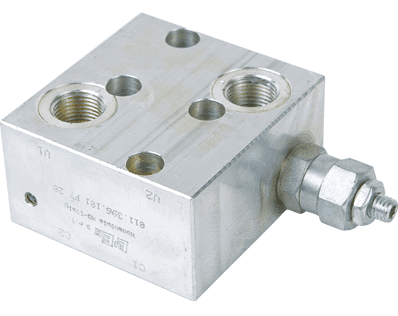

Over Center Valve (TA-0918)
Coupling (TA-0928)

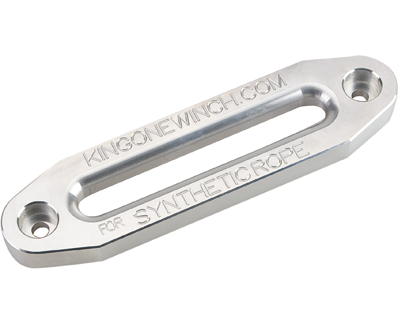

Hawse Fairlead (TA-0921)

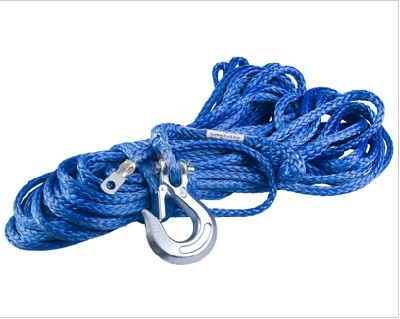

Synthetic Rope (TA-1107)
Hook (TA-0401)

OPTIONAL ACCESSORIES

High Pressure Hose (TA-0929)
Base Plate (TA-0927)

PACKAGING

Winch weight  : 31.5kgs/69lbs
Gross Weight  : 35kgs/77lbs
Box Dimension  : 570×245×305mm (22.4"×9.6"×12")
