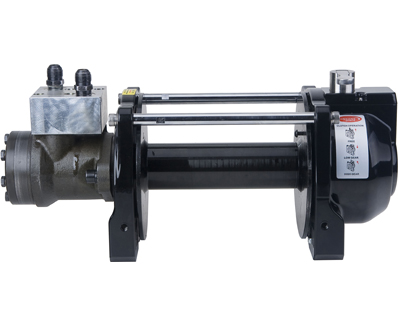

KINGONE WINCH -
The winch offers seamless operation across its entire speed range, boasting a highly efficient motor that delivers constant operating torque. Its rotating ring gear clutch enables rapid wire rope payout with a pull and turn design. The winch features freespooling, power in/out, mechanical lock, stainless steel tie bars, and reversible mounting, providing versatility. It is a variable speed hydraulic winch.
|
|
| Line pull | : 605kgs/1,333lbs(HIGH) 3,629kgs/8,000lbs(LOW) |
| Operation Pressure | : 175bar/2,537psi |
| Max Oil Flow | : 15.9g/min(60l/min) |
| Gear Ratio | : Free 1:1(HIGH) 6:1(LOW) |
| Wire Rope Size | : Φ3/8"×90'(Φ9.5mm×27.4m) |
| Synthetic Rope Size | : Φ2/7"×90'(Φ7.2mm×27.4m) |
| Drum Size | : Φ2.5"×8.4"(Φ63.5mm×215mm) |
| Gear Train | : Planetary |
| (1st layer of rope on the drum)(please use under when the max line pull is 8,000lbs, pressure is 175 bar and flow is 30l/min.) | ||||
| Layer of Wire Rope | Max Line Pull(1:1) | Line Speed(1:1) | Max Line Pull(6:1) | Line Speed(6:1) |
| 1 | 1,333lbs/650kgs | 160FPM/49MPM | 8,000lbs/3,629kgs | 26.6FPM/8.1MPM |
| 2 | 1,120lbs/500kgs | 190FPM/58MPM | 6,700lbs/3,030kgs | 31.8FPM/9.7MPM |
| 3 | 992lbs/450kgs | 213FPM/65MPM | 5,900lbs/2,670kgs | 36FPM/11MPM |
| 4 | 860lbs/390kgs | 249FPM/76MPM | 5,100lbs/2,310kgs | 41FPM/12.5MPM |
| 5 | 780lbs/354kgs | 279FPM/85MPM | 4,600lbs/2,080kgs | 46.5FPM/14.2MPM |

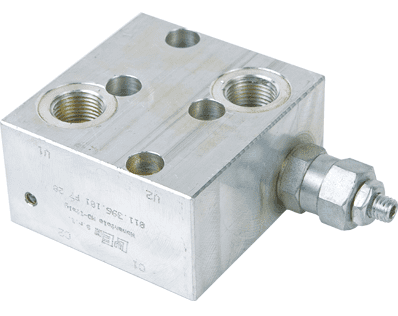

| Over Center Valve (TA-0918) |
| Coupling (TA-0928) |
| Mounting Hardware |
| Handsaver Strap |
| High Pressure Hose (TA-0929) |
| Base Plate (TA-0927) |
| 4 Way roller fairlead (TA-0903) |
| Wire rope (TA-0102) |
| hook (TA-0401) |
| Hawse Fairlead (TA-0921) |
| Synthetic Rope (TA-1106) |
| Winch weight | : 27kgs/59.5lbs |
| Gross Weight | : 30kgs/66lbs |
| Box Dimension | : 570×245×305mm (22.4"×9.6"×12") |
