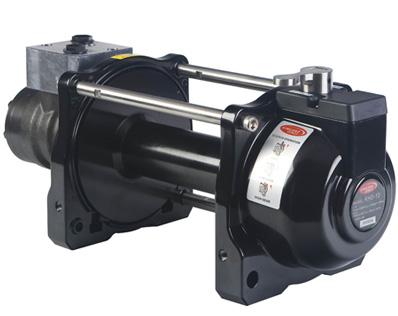

KINGONE WINCH -
The winch offers seamless operation across its entire speed range, boasting a highly efficient motor that delivers constant operating torque. Its rotating ring gear clutch enables rapid wire rope payout with a pull and turn design. The winch features freespooling, power in/out, mechanical lock, stainless steel tie bars, and reversible mounting, providing versatility. It is a variable speed hydraulic winch.
|
|
| Line pull | : 756kgs/1,667lbs (high) 4535kgs/10000lbs(low) |
| Operation Pressure | : 175bar/2,537psi |
| Max Oil Flow | : 15.9g/min(60l/min) |
| Gear Ratio | : Free 1:1(HIGH) 6:1(LOW) |
| Wire Rope Size | : Φ3/8"×90'(Φ9.5mm×27.4m) |
| Synthetic Rope Size | : Φ11/31"×90'(Φ9.0mm×27.4m) |
| Drum Size | : Φ2.5"×8.4"(Φ63.5mm×215mm) |
| Gear Train | : Planetary |
| (1st layer of rope on the drum, please use under when the max line pull is 10,000lbs,pressure is 175 bar and flow is 30l/min.) | ||||
| Layer of Wire Rope | Max Line Pull(1:1) | Line Speed(1:1) | Max Line Pull(6:1) | Line Speed(6:1) |
| 1 | 1,667Lbs/756Kgs | 134.5FPM/41MPM | 10,000Lbs/4,535Kgs | 21.3FPM/6.5MPM |
| 2 | 1,389Lbs/630Kgs | 161FPM/49MPM | 8,320Lbs/3,770Kgs | 26.2FPM/8MPM |
| 3 | 1,212Lbs/550Kgs | 183.7FPM/56MPM | 7,120Lbs/3,330Kgs | 30.5FPM/9.3MPM |
| 4 | 1,058Lbs/480Kgs | 209FPM/64MPM | 6,200Lbs/2,812Kgs | 36.1FPM/11MPM |
| 5 | 922Lbs/450Kgs | 223FPM/68MPM | 5,500Lbs/2,490Kgs | 37FPM/11.3MPM |

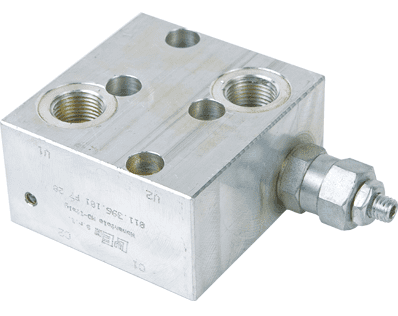

| Over Center Valve (TA-0918) |

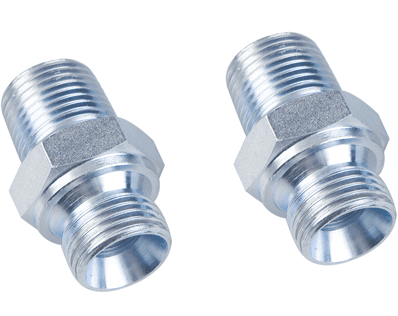

| Coupling (TA-0928) |
| Mounting Hardware |
| Handsaver Strap |
| High Pressure Hose (TA-0929) |
| Base Plate (TA-0927) |
| 4 Way roller fairlead (TA-0903) |
| Wire rope (TA-0102) |
| hook (TA-0401) |
| Hawse Fairlead (TA-0921) |
| Synthetic Rope (TA-1107) |
| Winch weight | : 27.5kgs/60.6lbs |
| Gross Weight | : 31kgs/68lbs |
| Box Dimension | : 570×245×305mm (22.4"×9.6"×12") |
