Gervix High Security X-Ray Luggage Scanner GV-5030A SE With 1M Roller Conveyor

Product Specification

SKU - DEE-18391
Gervix High Security X-ray Luggage Scanner GV-5030A
• Model : GV-5030A with 1M Roller Conveyor

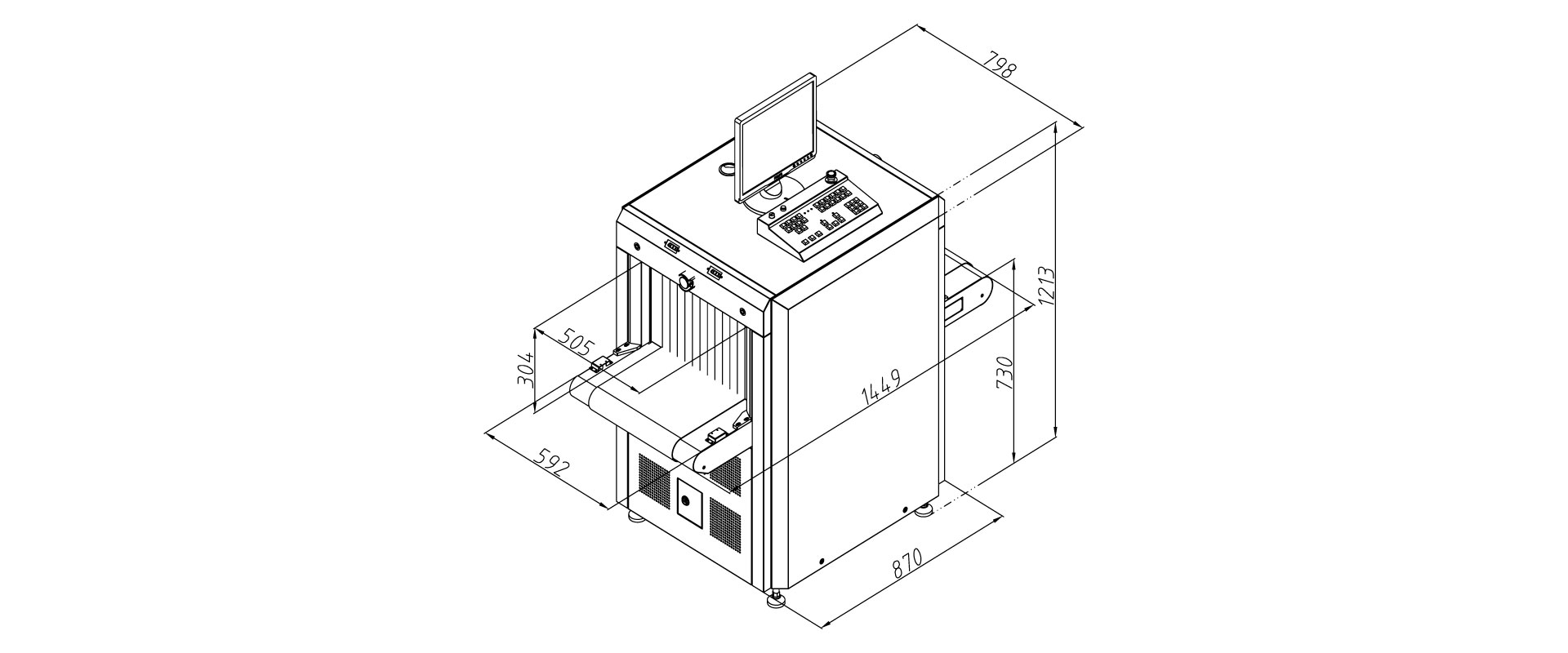

• Tunnel Size : 505mm x 304mm ( WxH )
• ConveyorSpeed : 0.2 m/s
• Conveyor Heigh : 730mm
• Max. Load : 100Kg ( Evenly distributed )
• Resolution : Typical: AWG 40 Standard: AWG 38
• Penetration(Steel) : >6mm
• Spatial Resolution : Horizontal:1.0mm Vertical:1.0mm
• Image Resolution : 19” LED ( Single Display )
• Display : Pseudo-color and Black & White
• Saves Capacity & Pull Back : 100.000 images / infinite review
• Image Processing Resolution : 1440 x 900
• Processing & Gray Scale : 24 Bit real-time processing / 8192
• Enlargement : Up to 64Xdynamic continuous zoom&painting
• Anode Voltage : 80KV (Adjustable)
• Beam Direction : From Bottom
• Cooling & Running Cycle : Sealed oil cooling & 100%
• X-Ray Sensor : Single-energy L photoelectric diode array detector
• IPC Configuration : Win7 ; Ram 2GB ; Hard Disk 500GB
• Leakage : <1µGy/h ( 5cm distance from outer )
• Film Safety : According to the ISO1600(33DIN)High Speed Standard
• Warranty : Electrical 24 Months
Features
+ Heavy Duty X-Ray Module by IMS Röntgensysteme GmbH, Germany
+ High Sensitivity Sensor by Sensorix, Germany
+ High Resolution Linear Array Detector by PTW, Germany
+ Sophisticated design with multifunctions operator interface
+ Can increase the conveyor speed to 0.3m/s ( Customized )
+ Collection the highspeed parallel of detection data
