Indotara
Gervix Best Security Equipment

Gervix Best Security Equipment - Gervix adalah Brand dengan Inovasi teknologi dari X-Ray High Security Inspection Equipment, yang menyediakan solusi peralatan keamanan terlengkap dan berkualitas tinggi. Teknologi X-Ray yang canggih tak henti-hentinya berupaya meningkatkan taraf industri nasional. Produk yang kami tawarkan seperti X-Ray Security Inspection Equipment, Mobile X-Ray Security Inspection Equipment, Explosive Detector dan Metal Detector. Dengan diaplikasikan pada bidang industrial Railway Stations, Pavilions, Public Buildings, Government Buildings, dan Airport.

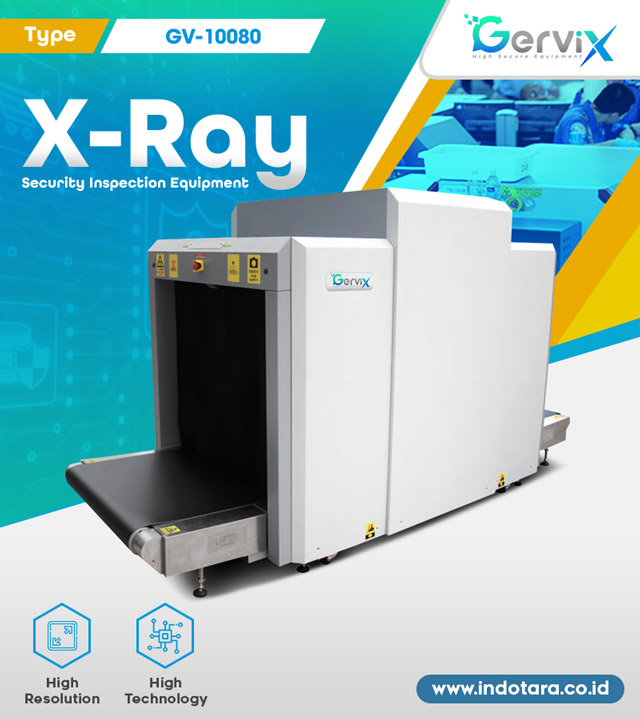

Gervix High Security X-Ray Luggage Scanner GV-10080 SE
Product Specification
Best Price : Rp 584,244,984 / Unit
Promo Price : Rp 420,656,389 / Unit

* Price exclude PPN, Ex-Works Cikupa
* Price & Spec can be changed without prior notification

SKU - DEE-15196
Gervix High Security X-ray Luggage Scanner
• Model : GV-10080
• Tunnel Size : 1023 mm x 822 mm ( WxH )
• ConveyorSpeed : 0.2 m/s
• Conveyor Heigh : 300 mm
• Max. Load : 200Kg ( Evenly distributed )
• Resolution : Typical: AWG 40 mmStandard: AWG 36
• Penetration(Steel) : Typical: 32 mm Standard: 30 mm
• Spatial Resolution : Horizontal: ?1.3mm Vertical:?1.6mm
• Image Resolution : 19” LED ( Single Display )
• Display : Black/White, Color
• Saves Capacity & Pull Back : 100.000 images / infinite review
• Image Processing Resolution : 1440 x 900
• Processing & Gray Scale : 24 Bit real-time processing
• 65536 Enlargement : Up to 64Xdynamic continuous zoom&painting
• Anode Voltage : 160KV (Adjustable)
• Beam Direction : From Top
• Cooling & Running Cycle : Sealed oil cooling & 100%
• X-Ray Sensor : Multi-energy L photoelectric diode array detector
• IPC Configuration : Win7 ; Ram 2GB ; Hard Disk 500GB
• Leakage : <1µGy/h (5cm distance from outer)
• Film Safety : According to the ISO1600(33DIN)High Speed Standard
• Warranty : Electrical 24 Months
Features
+ Heavy Duty X-Ray Module by IMS Röntgensysteme GmbH, Germany
+ High Sensitivity Sensor by Sensorix, Germany
+ High Resolution Linear Array Detector by PTW, Germany
+ Sophisticated design with multifunctions operator interface
+ Can increase the conveyor speed to 0.3m/s ( Customized )
+ Collection the highspeed parallel of detection data
REQUEST QUOTE
Get your quotation less than 1 minute now!!
SIDE INFORMATION

Jual X-Ray Security Inspection Equipment, Metal Detector, Explosive Detector, Mobile X-Ray Equipment
nc


DESCRIPTION
System Function
System Function Image Split Joint
Alarm Function
Single-directional Scanning
Browse Date & Time Display
Fault Self-diagnosis and Maintenance Functions High Density Alarm
Image Navigation Image Magnification Display
Limits of Authority Management for Operator Luggage Counting
System Working Timing Network Interface
TIP One-key Shutdown
User Management Self-check Power-on
Urgent Stop Save and Retrieval
Working Status Display Save As
Outlet Skateboard Ultra-thin Scanning
X-Ray Emission Timing
X-Autosight

Optional Function
Bi-directional Scanning
Voltage Stabilizer
GV-BB100 Black Box
UPS Uninterruptible Power Supply
OTP The Operator Training Program
LED Screen Display
Energy Saving Voice Recording Function
Voice Announcement Function


BLACK BOX
Using the professional video equipment, GV-BB100 can combine x-ray image, specific package and its owner into one system, to help operators review and analysis after crisis. With this extended function, the operators can quickly target the potential suspects. This system is not only user friendly but also has the remarkable effects which win the warm praise from the public security police officers. GV-BB100 is an international advanced product and an innovation in the security industry.


INSTALLATION DATA
Size 2992 mm (L) x 1317 mm (W) x 1605 mm (H)
Weight
950 KG
Working Temperature / Humidity
0℃~ + 45℃/ 10%~ 95% (non-condensing)
Storage Temperature / Humidity
- 40℃~ + 60℃/ 10%~ 95%(non-condensing)
Power Supply
AC 220 V(+10%~-15%) 50±3 (Hz)
Power consumption About 0.47 (KVA)
