Gervix Best Security Equipment

Gervix Best Security Equipment - Gervix adalah Brand dengan Inovasi teknologi dari X-Ray High Security Inspection Equipment, yang menyediakan solusi peralatan keamanan terlengkap dan berkualitas tinggi. Teknologi X-Ray yang canggih tak henti-hentinya berupaya meningkatkan taraf industri nasional. Produk yang kami tawarkan seperti X-Ray Security Inspection Equipment, Mobile X-Ray Security Inspection Equipment, Explosive Detector dan Metal Detector. Dengan diaplikasikan pada bidang industrial Railway Stations, Pavilions, Public Buildings, Government Buildings, dan Airport.
Gervix High Security X-ray Luggage Scanner SE
Product Specification
Best Price : Rp 315,992,201 / Unit
Promo Price : Rp 227,514,385 / Unit

* Price exclude PPN, Ex-Works Cikupa
* Price & Spec can be changed without prior notification

SKU - DEE-15187

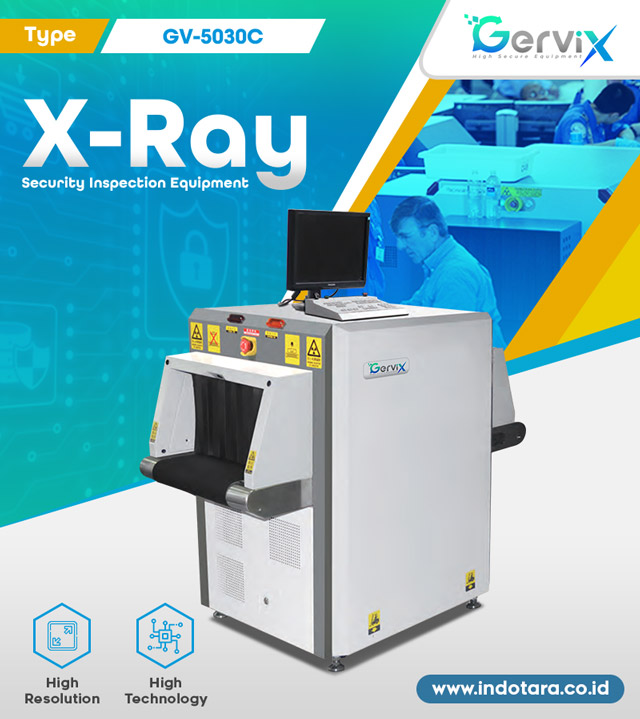

Gervix High Security X-ray Luggage Scanner
• Model : GV-5030C
• Tunnel Size : 505mm x 304mm ( WxH )
• ConveyorSpeed : 0.2 m/s
• Conveyor Heigh : 730mm
• Max. Load : 100Kg ( Evenly distributed )
• Resolution : Typical: AWG 40 Standard: AWG 38
• Penetration(Steel) : Typical: 32 mm Standard : 30 mm
• Spatial Resolution : Horizontal: ?1.0 mm Vertical:?1.0 mm
• Image Resolution : 19” LED ( Single Display )
• Display : Black/ White, Color
• Saves Capacity & Pull Back : 100.000 images
• Image Processing Resolution : 1440 x 900
• Processing & Gray Scale : 24 Bit real-time processing / 8192
• Anode Voltage : 140KV (Adjustable)
• Cooling & Running Cycle : Sealed oil cooling & 100%
• X-Ray Sensor : Multi-energy L photoelectric diode array detector
• IPC Configuration : Win7 ; Ram 2GB ; Hard Disk 500GB
• Leakage : <1µGy/h ( 5cm distance from outer )
• Film Safety : According to the ISO1600 ( 33DIN )
• Warranty : Electrical 24 Months
Features
+ Heavy Duty X-Ray Module by IMS Röntgensysteme GmbH, Germany
+ High Sensitivity Sensor by Sensorix, Germany
+ High Resolution Linear Array Detector by PTW, Germany
+ Sophisticated design with multifunctions operator interface
+ Can increase the conveyor speed to 0.3m/s ( Customized )
+ Collection the highspeed parallel of detection data
+ With network interface to achieve total network management
+ Support JPG & BMP image transformation format to USB
REQUEST QUOTE
Get your quotation less than 1 minute now!!
SIDE INFORMATION

Jual X-Ray Security Inspection Equipment, Metal Detector, Explosive Detector, Mobile X-Ray Equipment
nc


DESCRIPTION
System Function
Alarm Function Bi-directional Scanning
Browse
Date & Time Display
Fault Self-diagnosis and Maintenance Functions High Density Alarm
Image Navigation Image Magnification Display
Limits of Authority Manag for Operator Luggage Counting
System Working Timing Network Interface
TIP One-key Shutdown
User Management Self-check Power-on
Urgent Stop Save and Retrieval
Working Status Display Save As
Image Split Joint Ultra-thin Scanning
Extend Protective Cover and
Doublelayer Lead Curtain In Entry and Exit
X-Ray Emission Timing
X-Autosight Image Split Joint

Optional Function
Double Display
0.6m Entry / Exit Flatbed Roller Tables
GV-BB100 Black Box
Energy Saving
OTP The Operator Training Program
OTP The Operator Training Program
Voltage Stabilizer
UPS Uninterruptible Power Supply
BLACK BOX
UUsing the professional video equipment, GV-BB100 can combine x-ray image, specific package and its owner into one system, to help operators review and analysis after crisis. With this extended function, the operators can quickly target the potential suspects. This system is not only user friendly but also has the remarkable effects which win the warm praise from the public security police officers. GV-BB100 is an international advanced product and an innovation in the security industry.


INSTALLATION DATA
Size 1449 mm (L) x 798 mm (W) x 1213 mm (H)
Weight
410 KG
Working Temperature / Humidity
0℃~ + 45℃/ 10%~ 95% (non-condensing)
Storage Temperature / Humidity
- 40℃~ + 60℃/ 10%~ 95% (non-condensing)
Power Supply
AC 220 V(+10%~-15%) 50±3 (Hz)
Power consumption About 0.41 (KVA)

download catalog Waxler Packaging Equipments


HATI-HATI GUNAKAN SELALU X-RAY SECURITY KUALITAS TERBAIK
Gervix menyediakan solusi peralatan keamanan terlengkap berkualitas tinggi, bergaransi lama, dan ada teknisinya.
X-Ray Security harus bisa dipakai terus menerus karena didukung oleh dealer yang bertanggung jawab.
