Gervix Best Security Equipment

Gervix Best Security Equipment - Gervix adalah Brand dengan Inovasi teknologi dari X-Ray High Security Inspection Equipment, yang menyediakan solusi peralatan keamanan terlengkap dan berkualitas tinggi. Teknologi X-Ray yang canggih tak henti-hentinya berupaya meningkatkan taraf industri nasional. Produk yang kami tawarkan seperti X-Ray Security Inspection Equipment, Mobile X-Ray Security Inspection Equipment, Explosive Detector dan Metal Detector. Dengan diaplikasikan pada bidang industrial Railway Stations, Pavilions, Public Buildings, Government Buildings, dan Airport.
Gervix High Security X-Ray Luggage Scanner GV-V150180DV SE
Product Specification
Best Price : Rp 2,577,945,797 / Unit
Promo Price : Rp 1,856,120,974 / Unit

* Price exclude PPN, Ex-Works Cikupa
* Price & Spec can be changed without prior notification

SKU - DEE-15207

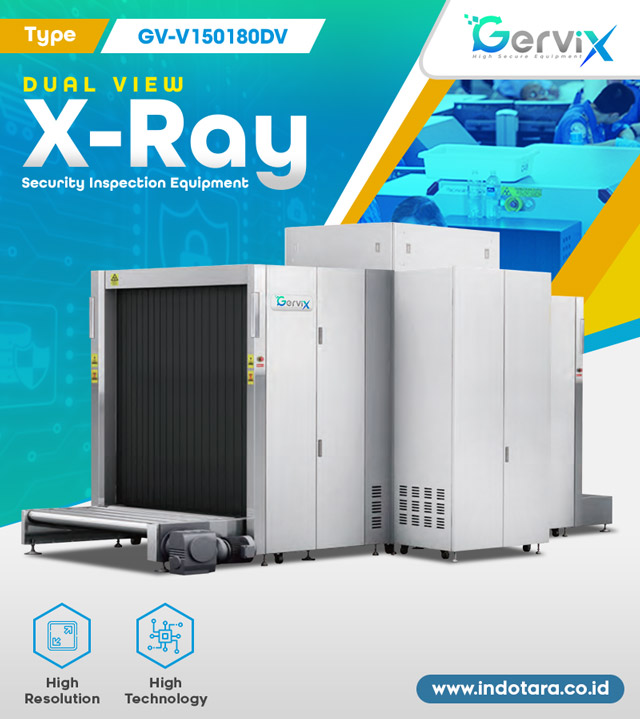

Gervix High Security X-ray Luggage Scanner GV-V150180DV
• Model : GV-V150180DV
• Tunnel Size : 1550 mm x 1810 mm ( WxH )
• ConveyorSpeed : 0.2 m/s
• Conveyor Heigh : 400 mm
• Max. Load : 3000Kg ( Evenly distributed )
• Resolution : AWG 36 (from top)AWG 36 (from side)
• Penetration(Steel) : 40 mm (from top) 43 mm (from side)
• Spatial Res. (From Bottom): Horizontal: ?1.6mm Vertical:?1.6mm
• (From Side) : Horizontal: ?1.3mm Vertical:?1.3mm
• Image Resolution : 22” LED ( Single Display )
• Display : Black/White, Color
• Saves Capacity & Pull Back : 100.000 images / infinite review
• Image Processing Resolution : 1680 x 1050
• Processing & Gray Scale : 24 Bit real-time processing / 65536
• Enlargement : Up to 64X dynamic continuous zoom & painting
• Anode Voltage : 200KV (Adjustable)
• Beam Direction : From Top & From Side
• Cooling & Running Cycle : Sealed oil cooling & 100%
• X-Ray Sensor : Multi-energy L photoelectric diode array detector
• IPC Configuration : Win7 ; Ram 2GB ; Hard Disk 500GB. Video card : 2G
• Leakage : <1µGy/h ( 5cm distance from outer ) according to ISS
• Film Safety : According to the ISO1600 ( 33DIN ) High Speed Standard
• Warranty : Electrical 24 Months
Features
+ Sophisticated design with multifunctions operator interface
+ Can increase the conveyor speed to 0.3m/s ( Customized )
+ Collection the highspeed parallel of detection data
+ With network interface to achieve total network management
+ Support JPG & BMP image transformation format to USB
REQUEST QUOTE
Get your quotation less than 1 minute now!!
SIDE INFORMATION

Jual X-Ray Security Inspection Equipment, Metal Detector, Explosive Detector, Mobile X-Ray Equipment
nc


DESCRIPTION
System Function
Alarm Function Date & Time Display
Browse
High Density Alarm
Fault Self-diagnosis and Maintenance Functions Image Magnification Display
Image Navigation Luggage Counting
Limits of Authority Manag for Operator Network Interface
System Working Timing One-key Shutdown
TIP Self-check Power-on
User Management Save and Retrieval
Urgent Stop Save As
Working Status Display X-Ray Emission Timing
Image Split Joint X-Autosight
Single-directional Scanning

Optional Function
Bi-directional Scanning Double Display
GV-BB100 Black Box
UPS Uninterruptible Power Supply
OTP The Operator Training Program
1.2m Roller type Roller Tables
Voltage Stabilizer Voice Announcement Function
Voice Recording Function
BLACK BOX
Using the professional video equipment, GV-BB100 can combine x-ray image, specific package and its owner into one system, to help operators review and analysis after crisis. With this extended function, the operators can quickly target the potential suspects. This system is not only user friendly but also has the remarkable effects which win the warm praise from the public security police officers. GV-BB100 is an international advanced product and an innovation in the security industry.


INSTALLATION DATA
Size 5420 mm (L) x 2810 mm (W) x 3015 mm (H)
Weight
3800 KG
Working Temperature / Humidity
0℃~ + 45℃/ 10%~ 95% (non-condensing)
Storage Temperature / Humidity
- 40℃~ + 60℃/ 10%~ 95% (non-condensing)
Power Supply
AC 220 V(+10%~-15%) 50±3 (Hz)
Power consumption About 2.5(KVA)
