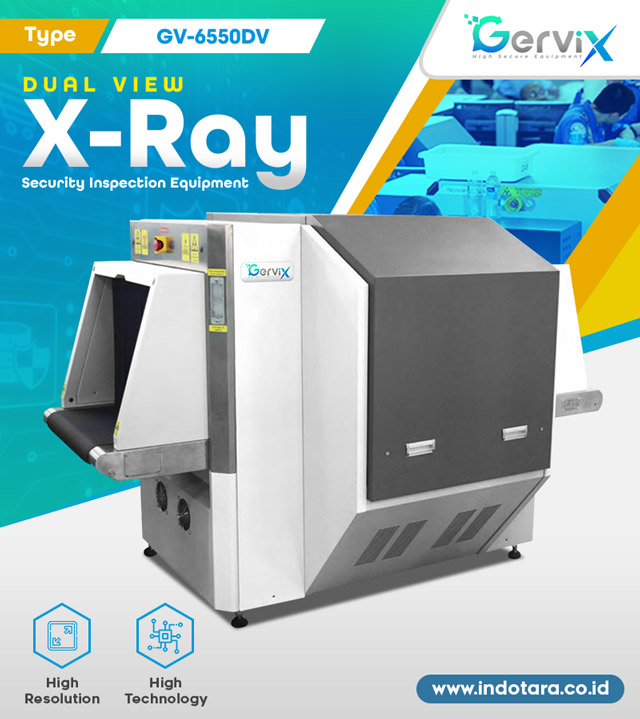

Gervix High Security X-ray Luggage Scanner GV-6550DV
Product Specification
Best Price : Rp 621,036,913 / Unit
Promo Price : Rp 447,146,578 / Unit

* Price exclude PPN, Ex-Works Cikupa
* Price & Spec can be changed without prior notification

SKU - DEE-15192
Gervix High Security X-ray Luggage Scanner GV-6550DV
• Model : GV-6550DV
• Tunnel Size : 650 mm x 502 mm ( WxH )
• ConveyorSpeed : 0.2 m/s
• Conveyor Heigh : 687 mm
• Max. Load : 160Kg ( Evenly distributed )
• Resolution : Typical: AWG 38 mmStandard: AWG 40
• Penetration(Steel) : 27 mm (from bottom) 30 mm (from side)
• Spatial Res. (From bottom): Horizontal: ?1.3mm Vertical:?1.3mm
• (From side) : Horizontal: ?1.3mm Vertical:?1.3mm
• Image Resolution : 19” LED ( Single Display )
• Display : Black/White, Color
• Saves Capacity & Pull Back : 100.000 images / infinite review
• Image Processing Resolution : 1440 x 900
• Processing & Gray Scale : 24 Bit real-time processing
dynamic continuous zoom & painting
• Anode Voltage : 160KV (Adjustable)
• Beam Direction : From Bottom& From side
• Cooling & Running Cycle : Sealed oil cooling & 100%
• X-Ray Sensor : Multi-energy L photoelectric diode array detector
• IPC Configuration : Win7 ; Ram 2GB ; Hard Disk 500GBVideo card : 2G
• Leakage : <2µGy/h ( 5cm distance from outer ) according to ISS
• Film Safety : According to the ISO1600 ( 33DIN ) High Speed Standard
• Warranty : Electrical 24 Months
Features
+ Sophisticated design with multifunctions operator interface
+ Can increase the conveyor speed to 0.3m/s ( Customized )
+ Collection the highspeed parallel of detection data
+ With network interface to achieve total network management
+ Support JPG & BMP image transformation format to USB
REQUEST QUOTE
Get your quotation less than 1 minute now!!
SIDE INFORMATION

Jual X-Ray Security Inspection Equipment, Metal Detector, Explosive Detector, Mobile X-Ray Equipment
nc


DESCRIPTION
System Function
Alarm Function Date & Time Display
Browse
High Density Alarm
Fault Self-diagnosis and Maintenance Functions Image Magnification Display
Image Navigation Luggage Counting
Limits of Authority Manag for Operator Network Interface
System Working Timing One-key Shutdown
TIP Self-check Power-on
User Management Save and Retrieval
Urgent Stop Save As
Working Status Display Ultra-thin Scanning
X-Autosight Image Split Joint
Bi-directional Scanning

Optional Function
0.2m/s, 0.3m/s(Two steps adjustable)
Voltage Stabilizer
GV-BB100 Black Box
UPS Uninterruptible Power Supply
OTP The Operator Training Program
0.6m Entry / Exit Flatbed Roller Tables
Energy Saving LED Screen Display
0.6m Entry Flatbed Roller Tables,
1.2m Exit Skateboard
Voice Announcement Function


BLACK BOX
UUsing the professional video equipment, GV-BB100 can combine x-ray image, specific package and its owner into one system, to help operators review and analysis after crisis. With this extended function, the operators can quickly target the potential suspects. This system is not only user friendly but also has the remarkable effects which win the warm praise from the public security police officers. GV-BB100 is an international advanced product and an innovation in the security industry.


INSTALLATION DATA
Size 2238 mm (L) x 907 mm (W) x 1375 mm (H)
Weight
800 KG
Working Temperature / Humidity
0℃~ + 45℃/ 10%~ 95% (non-condensing)
Storage Temperature / Humidity
- 40℃~ + 60℃/ 10%~ 95%(non-condensing)
Power Supply
AC 220 V(+10%~-15%) 50±3 (Hz)
Power consumption About 0.50 (KVA)
