Indotara
Gervix Best Security Equipment

Gervix Best Security Equipment - Gervix adalah Brand dengan Inovasi teknologi dari X-Ray High Security Inspection Equipment, yang menyediakan solusi peralatan keamanan terlengkap dan berkualitas tinggi. Teknologi X-Ray yang canggih tak henti-hentinya berupaya meningkatkan taraf industri nasional. Produk yang kami tawarkan seperti X-Ray Security Inspection Equipment, Mobile X-Ray Security Inspection Equipment, Explosive Detector dan Metal Detector. Dengan diaplikasikan pada bidang industrial Railway Stations, Pavilions, Public Buildings, Government Buildings, dan Airport.
Gervix High Security X-ray Luggage Scanner SE
Product Specification
Best Price : Rp 638,112,439 / Unit
Promo Price : Rp 459,440,956 / Unit

* Price exclude PPN, Ex-Works Cikupa
* Price & Spec can be changed without prior notification

SKU - DEE-15199

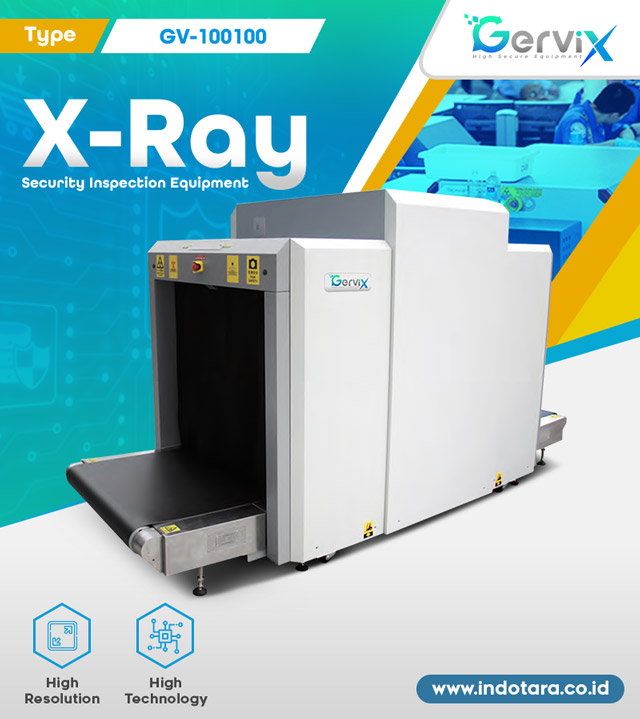

Gervix High Security X-ray Luggage Scanner GV-100100
• Model : GV-100100
• Tunnel Size : 1020 mm x 1020 mm ( WxH )
• ConveyorSpeed : 0.2 m/s
• Conveyor Heigh : 300 mm
• Max. Load : 200Kg ( Evenly distributed )
• Resolution : Typical: AWG 40 mmStandard: AWG 36
• Penetration(Steel) : Typical: 32 mm Standard: 30 mm
• Spatial Resolution : Horizontal: 1.3mm Vertical: 1.6mm
• Image Resolution : 19” LED (Single Display)
• Display : Black/White, Color
• Saves Capacity & Pull Back : 100.000 images / infinite review
• Image Processing Resolution : 1440 x 900
• Processing & Gray Scale : 24 Bit real-time processing
• 65536 Enlargement : Up to 64Xdynamic continuous zoom&painting
• Anode Voltage : 160KV (Adjustable)
• Beam Direction : From Top
• Cooling & Running Cycle : Sealed oil cooling & 100%
• X-Ray Sensor : Multi-energy L photoelectric diode array detector
• IPC Configuration : Win7 ; Ram 2GB ; Hard Disk 500GB
• Leakage : <1µGy/h ( 5cm distance from outer )
• Film Safety : According to the ISO1600(33DIN)High Speed Standard
• Warranty : Electrical 24 Months

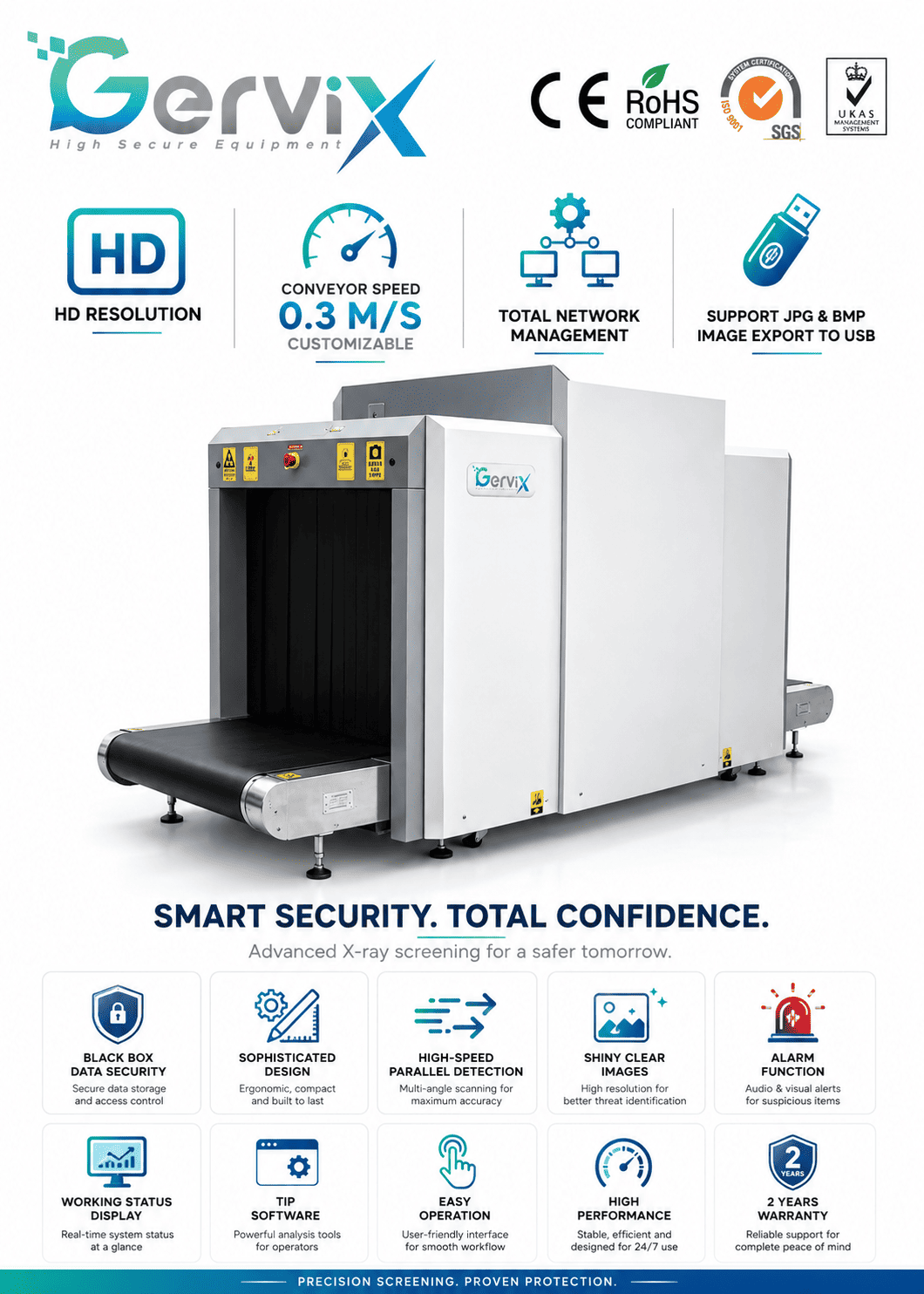

Features
+ Heavy Duty X-Ray Module by IMS Röntgensysteme GmbH, Germany
+ High Sensitivity Sensor by Sensorix, Germany
+ High Resolution Linear Array Detector by PTW, Germany
+ Sophisticated design with multifunctions operator interface
+ Can increase the conveyor speed to 0.3m/s ( Customized )
+ Collection the highspeed parallel of detection data
REQUEST QUOTE
Get your quotation less than 1 minute now!!
SIDE INFORMATION

Jual X-Ray Security Inspection Equipment, Metal Detector, Explosive Detector, Mobile X-Ray Equipment
nc


DESCRIPTION
System Function
Alarm Function Date & Time Display
Browse
High Density Alarm
Fault Self-diagnosis and Maintenance Functions Image Magnification Display
Image Navigation Luggage Counting
Limits of Authority Manag for Operator Network Interface
System Working Timing One-key Shutdown
TIP Self-check Power-on
User Management Save and Retrieval
Urgent Stop Save As
Working Status Display Ultra-thin Scanning
X-Autosight Image Split Joint
X-Ray Emission Timing

Optional Function
Bi-directional Scanning Voltage Stabilizer
GV-BB100 Black Box
UPS Uninterruptible Power Supply
OTP The Operator Training Program
Voice Recording Function
Energy Saving LED Screen Display
Voice Announcement Function
BLACK BOX
Using the professional video equipment, GV-BB100 can combine x-ray image, specific package and its owner into one system, to help operators review and analysis after crisis. With this extended function, the operators can quickly target the potential suspects. This system is not only user friendly but also has the remarkable effects which win the warm praise from the public security police officers. GV-BB100 is an international advanced product and an innovation in the security industry.


INSTALLATION DATA
Size 3398 mm (L) x 1316 mm (W) x 1804 mm (H)
Weight
1200 KG
Working Temperature / Humidity
0℃~ + 45℃/ 10%~ 95% (non-condensing)
Storage Temperature / Humidity
- 40℃~ + 60℃/ 10%~ 95%(non-condensing)
Power Supply
AC 220 V(+10%~-15%) 50±3 (Hz)
Power consumption About 0.48 (KVA)

download catalog Waxler Packaging Equipments


HATI-HATI GUNAKAN SELALU X-RAY SECURITY KUALITAS TERBAIK
Gervix menyediakan solusi peralatan keamanan terlengkap berkualitas tinggi, bergaransi lama, dan ada teknisinya.
X-Ray Security harus bisa dipakai terus menerus karena didukung oleh dealer yang bertanggung jawab.
