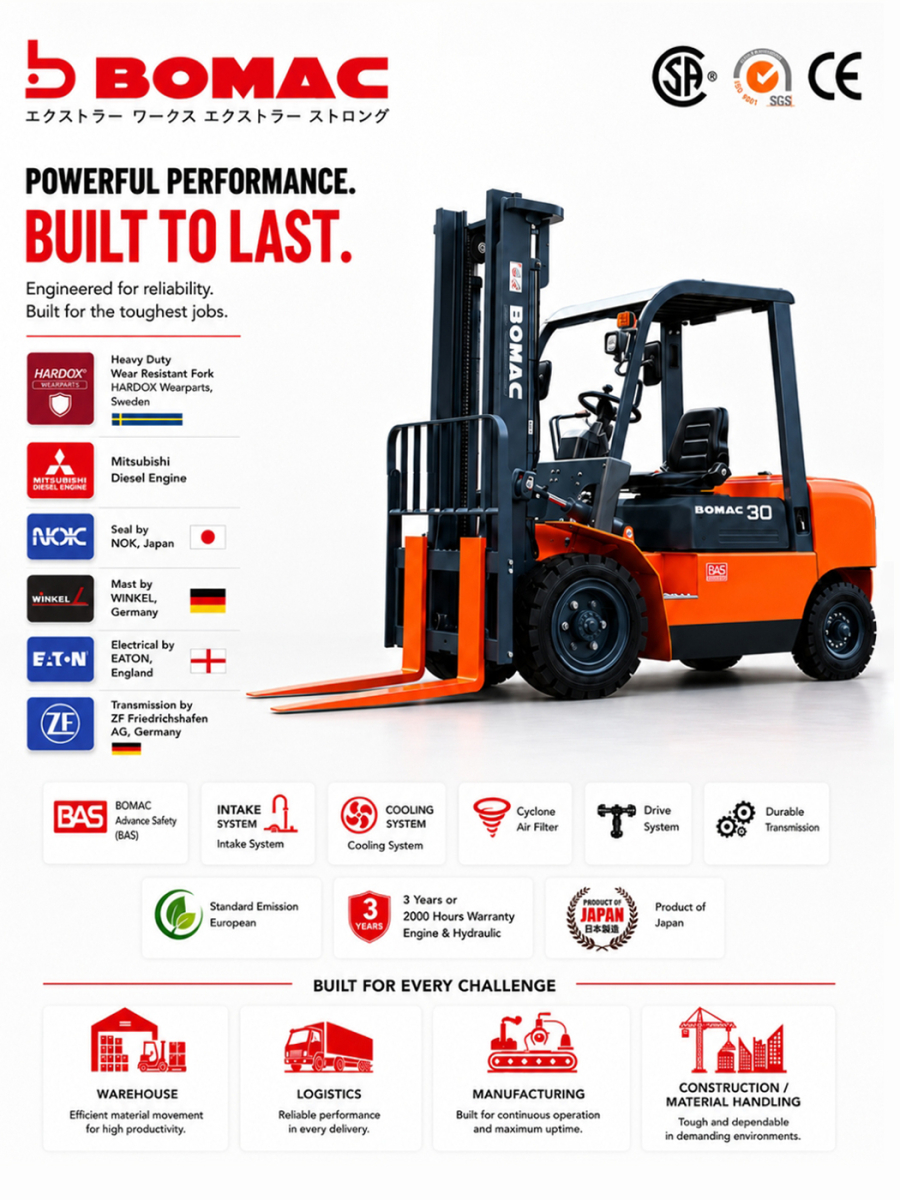

| SPESIFIKASI TEKNIS |
||
| Type | : | RD-30 |
| Rated Capacity | : | 3000 kg |
| Length to Face of Fork | : | 2682 mm |
| Width | : | 1225 mm |
| Height to Top of Operators Guard | : | 2190 mm |
| Turning Radius (Outside) | : | 2400 mm |
| Lifting Standart | : | 3000 mm |
| Diesel Engine | : | Bomac, ISUZU, Mitsubishi |
| Transmision | : | Manual Transmision, PowerShift |
| *Price Include Tax *Price Include Delivery Jabodetabek, Surabaya, Medan & Bandung. |
||
 |
| Call Sales |
 |
| Call Sales |
 |
| Call Sales |
 |
| Call Sales |
| Characteristic | ||
|---|---|---|
| 1 | Manufactory | BOMAC |
| 2 | Model | RD-30 |
| 3 | Power Type | Diesel |
| 4 | Rated Capacity (Kg) | 3000 |
| 5 | Load Center (mm) | 500 |
| 6 | Driving Mode | Sit-on type |
| Size | |||
|---|---|---|---|
| 7 | Overall Max. Lifting Height (With Backrest) | h4 | 4262 mm |
| 8 | Max. Lifting Height | h3 | 3000 mm |
| 9 | Height Mast Rectared (Upright) | h1 | 2065 mm |
| 10 | Free Lift Height | h2 | 160 mm |
| 11 | Backstreeet Height (From Upper Face of Forks) | h8 | 1227 mm |
| 12 | Overhead Guard Clearance (From Face of Seat) | h7 | 1000 mm |
| 13 | Overall Height (Overhead Guard) | h6 | 2190 mm |
| 14 | Overall Length (Without Forks) | (L1/L2) | 3752 / 2682 mm |
| 15 | Front Overhang | X | 479 mm |
| 16 | Rear Overhang | L4 | 495 mm |
| 17 | Wheel Base | L5 | 1700 mm |
| 18 | Coupler Height | h5 | 310 mm |
| 19 | Min. Ground Clearance Under Mast | m1 | 135 mm |
| 20 | Overall Width | B | 1225 mm |
| 21 | Lateral Fork Adjustment (Outside of Fork) | R | 1060 / 250 mm |
| 22 | Tread (Front / Rear) | ( S / P ) | 1000 / 970 mm |
| 23 | Inside Turning Radius | V | 2400 mm |
| 24 | Outside Turning Radius | Wa | 200 mm |
| 25 | Min. Intersecting Aisle | Ra | 238 mm |
| 26 | Tilting Angles (Forward / Backward) | α / β | 6° /12° |
| 27 | Fork Size | a x b x c | 1070 x 125 x 45 |
| Performance | |||
|---|---|---|---|
| 28 | Max. Traveing Speeds (Laden/Unladen) | Km/h | 19/20 |
| 29 | Lifting Speeds (Laden/Unladen) | mm/s | 465/490 |
| 30 | Lowering Speeds (Laden/Unladen) | mm/s | 450/550 |
| 31 | Max. Draw-Bar Pull (Laden/Unladen) | kN | 20/15.8 |
| 32 | Max. Negotiabe Gradient (Laden/Unladen) | % | 15/20 |
| Weight | |||
|---|---|---|---|
| 33 | Service Mass | Kg | 4270 |
| 34 | Load Wheel .Laden (Front/Rear) | Kg | 6543/727 |
| 35 | Load Wheel .Unladen (Front/Rear) | Kg | 1708/2562 |
| Tyres | ||
|---|---|---|
| 36 | Wheel (Front/Rear) X = Driving Wheel | 2X/2 |
| 37 | Tyre (Front/Rear) | Pneumatic Tyre |
| 38 | Tyre Size (Front/Rear) | 28x9-15-14PR/6.50-10-10PR |
| 39 | Service Brake | Hydraulic - Foot Pedal |
| 40 | Paking Brake | Mechanical - Hand Lever |
| 470 |
Air suction inlet installing on top of the overhead guard brace far away from the dust produced when travelling. Cleaner air sucked prolonging engine service life.
