Banner Electric Self Propelled Scissor Lift


Jual Tangga Elektrik, Jual Work Platform, Jual Aerial Work Platform - The SE80W/OR is converted t a hily ground design, When the lift can automatically level and iift on the laege cariying capacity ca carry 550kg. The platform can be extended to 3.3 meters and the working seight can be up to 8 meters. The SE8W/OR Continues the SE8Ws intelligent control system, and the on-board diagnostic sysem allows customer to control the equipment at te equipment at anytime.

SE-80W/OR

Jual Electric Self Propelled Scissor Lift

Best Price : Call Sales

Metric System Option Features

Working Height max H1	:	8 m
Platform Height max H2	:	6 m
Platform height mini (1)	:	1.02 m
Outreach (2)	:	1 m
Lifting Capacity	:	550 kg
Lifting Capacity (extended platform)	:	120 kg
Platform Size (3x4x5)	:	2.3x1.15x1.1 m
The length of platform extended	:	3.3 m
Skirting board height (7)	:	0.17 L
*Stowed length and width (89)**	:	2.55*1.2 m
Stowed height (10)	:	2.5 m
Stowed height (11)	:	1.65 m
Wheelbase (12)	:	1.68 m
Length of the machine with platform extended (13)	:	3.5
Hydraulic tank capacity	:	25 L
Gradeability	:	35 %
Ground clearance (14)	:	0.15
Turn diameter (inside)	:	0
Turn diameter (outside)	:	2.4 m
Load number max	:	2
Raised/Lowering time	:	32/30
Traction speed	:	3.4
Safe speed	:	0.7
Vertical tilt	:	3°
Leteral tilt	:	2°
Power source	:	4*6V; 225Ah
Outrigger leel ability max	:	Left and right10° Front and rear 4.5º
Tire size	:	406127318 mm
weight	:	2270 kg
Warranty	:	3 Years

Air line the platform
Platform work light
Special hydraulic oil
Top limit protection auto-step device
Power socket to the platform
Overload sensor

*Price Include Tax
*Price Include Delivery Jabodetabek, Surabaya, Medan & Bandung

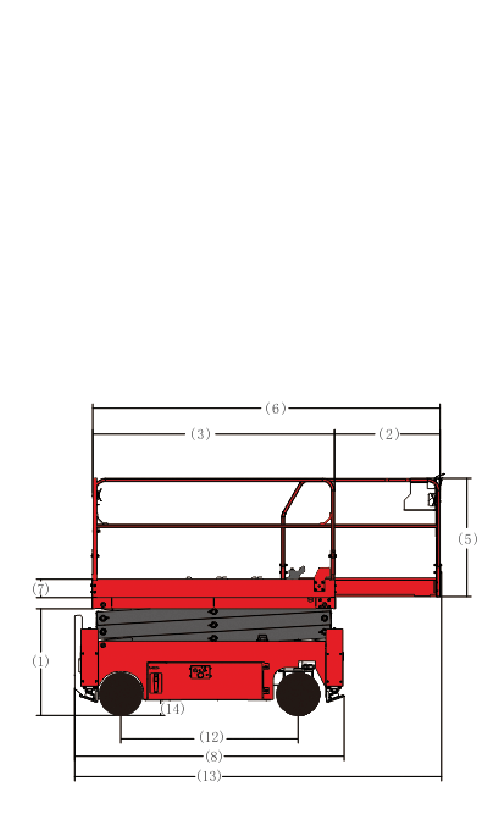

• SE-W Dimension

This equipment is mainly used for indoor and outdoor vertical lifting.
The main function is to slide out the extended platform to increase the working area and the ability to rise across.
Strong climbing abillity could climb 35 % slope.
The level ability of the legs is strong, about 10 degress left and right 4.5 degress front and rear.
Multi fungsional intelligent safety protection system with on board diagnosis system and intelligent fault alarm system.
