OFF ROAD WINCH


KINGONE WINCH - The heavy-duty series wound motor provides exceptional torque and faster line speed, while the 3-stage planetary gearbox ensures reliable and durable winch performance even in harsh conditions. It features an automatic double cone brake and a rotating ring gear clutch for easy rapid wire rope payout. The winch is designed for effortless installation, operation, and maintenance.

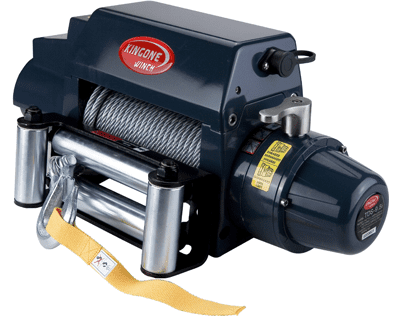

Kingone Industrial Winch TDS-9.5i (12V) KO Line Pull : 4,309 Kgs , Motor : 12 V/5.0 HP
Product Specification
Best Price : Rp 160,594 / Unit
Promo Price : Rp 115,628 / Unit

* Price exclude PPN, Ex-Works Cikupa
* Price & Spec can be changed without prior notification

SKU - DHC-2783
Kingone Winch - Heavy Duty Class TDS-9.5i (12V) - Luxury
Heavy Duty Electric Winch
• Series : TDS Series
• Type : TDS-9.5i (12V)
• Line Pull : 4,309 Kgs / 9,500 Lbs
• Motor : 12 V/5.0 HP / 24V/3HP
• Gear Train : Three Stage
• Gear Ratio : 173 : 1
• Freespooling Clutch : Rotation Ring Gear
• Wire Rope Size : Dia. 8.7mm x 30m
• Wire Rop Type : Aircraft A7X19
• Brake : Automatic, double cone brake
• Drum Size : Dia.2.5"x9" (Dia.63,5mm X 229mm)
• Winch Weight : 49 Kgs
• Gross Weight : 52 Kgs
• Box Dimension : 647 x 198 x 410 mm
• Warranty : Mechanical 36 Months , Electrical 12 Months
Features
+ Heavy Duty Polyurethane Coating by Jotun, Norway
+ Electrical by Schneider, Germany
+ Gearbox Material by Nissin, Japan
+ Heavy Duty Series wound motor delivers superior torque
+ 3 Gear Planetary Gearbox Delivers
+ The Most Reliable and Durable performance of winch
+ Braking By flanges transmission
+ Rotating gear ring clutch have t the freespooling positioned.
+ For The rapid payouto Wire ropewith ease
+ Installation , operation and maintenance with easy.
+ Total Lngth 520mm(20.5)
+ Rigorous Quality Control from begining to finish
REQUEST QUOTE
Get your quotation less than 1 minute now!!

Product Detail

SPECIFICATION

Line pull : 4,309kgs/9,500lbs
Motor : 12V/5.0HP 24V/3.0HP
Gear Train : Three stage
Gear Ratio : 173:1
Freespooling Clutch : Rotating ring gear
Wire Rope Size : Φ11/32"×100'(Φ8.7mm×30m)
Wire Rope Type : Aircraft A7×19
Drum Size : Φ2.5"×9"(Φ63.5mm×229mm)

LINE PULL

Layer of Wire Rope Max Line Pull
1 9,500lbs/4,309kgs
2 7,800lbs/3,500kgs
3 6,550lbs/2,977kgs
4 5,700lbs/2,578kgs

LINE SPEED AND AMP DRAW

(1st layer of rope on the drum)
Load Line Speed AMP Draw(12V) AMP Draw(24V)
No Load 55.8FPM/17MPM 60 40
2,000lbs/907kgs 14.7FPM/4.5MPM 140 106
4,000lbs/1,814kgs 12.5FPM/3.8MPM 181 158
6,000lbs/2,722kgs 12FPM/2.7MPM 248 187
8,000lbs/3,650kgs 8.2FPM/2.5MPM 295 226
9,500lbs/4,309kgs 7.5FPM/2.3MPM 338 259

DIMENSION (mm)


STANDARD ACCESSORIES

Controller (TA-0906)
Wire Rope With Hook
4 Way Roller Fairlead (TA-0903)
Control Unit (TA-0902)
Mounting Hardware
Pulley Block (TA-0109)
Handsaver Strap

PACKAGING

Winch weight  : 50 kgs/110lbs
Gross Weight  : 52kgs/114lbs
Box Dimension  : 647×198×410mm (25.5"×7.8"×16.1")
