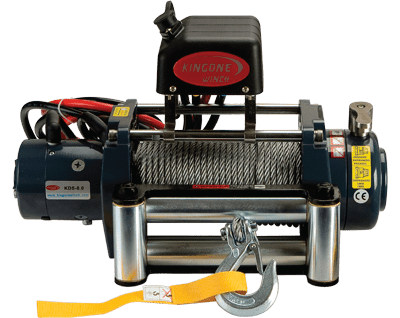

OFF ROAD WINCH


KINGONE WINCH - The heavy-duty series wound motor provides exceptional torque and faster line speed, while the 3-stage planetary gearbox ensures reliable and durable winch performance even in harsh conditions. It features an automatic double cone brake and a rotating ring gear clutch for easy rapid wire rope payout. The winch is designed for effortless installation, operation, and maintenance.

kingone off road

  • Heavy duty series wound motor delivers superior torque output and faster line speed.
  • 3 stage planetary gearbox delivers the most reliable and durable performance of winch under the worst condition.
  • Braking by flanges transmission.
  • Rotating ring gear clutch have the freespooling positioned actually for the rapid pay out of wire rope with ease.
  • Installation, operation and maintenance with ease.
  • It's total length is 520mm(20.5").
kingone off road
Best Price Rp. 13.021.000,-

Product Detail

SPECIFICATION

Line pull : 3,629kgs/8,000lbs
Motor : 12V/4.6HP 24V/2.8HP
Gear Train : Three stage
Gear Ratio : 173:1
Brake : Flanges brake
Freespooling Clutch : Rotating ring gear
Wire Rope Size : Φ5/16"×80'(Φ8.3mm×24.3m)
Wire Rope Type : Aircraft A7×19
Drum Size : Φ2.5"×9"(Φ63.5mm×229mm)

LINE PULL

Layer of Wire Rope Max Line Pull
1 8,000lbs/3,629kgs
2 6,557lbs/2,974kgs
3 5,510lbs/2,499kgs
4 4,790lbs/2,173kgs

LINE SPEED AND AMP DRAW

(1st layer of rope on the drum)
Load Line Speed AMP Draw(12V)
No Load 46FPM/14MPM 65
2,000lbs/907kgs 14.8FPM/4.5MPM 120
4,000lbs/1,814kgs 11.5FPM/3.5MPM 190
6,000lbs/2,721kgs 6.5FPM/2.0MPM 270
8,000lbs/3,650kgs 5.9FPM/1.8MPM 380

DIMENSION (mm)

dimension KDS 8.0

STANDARD ACCESSORIES

Controller (TA-0906)
Wire Rope With Hook
4 Way Roller Fairlead (TA-0903)
Control Unit (TA-0902)
Mounting Hardware
Handsaver Strap

PACKAGING

Winch weight  : 39kgs/85.8lbs
Gross Weight  : 42kgs/90lbs
Box Dimension  : 560×198×405 mm(22"×7.8"×16")
