OFF ROAD WINCH


KINGONE WINCH - The heavy-duty series wound motor provides exceptional torque and faster line speed, while the 3-stage planetary gearbox ensures reliable and durable winch performance even in harsh conditions. It features an automatic double cone brake and a rotating ring gear clutch for easy rapid wire rope payout. The winch is designed for effortless installation, operation, and maintenance.


  • Heavy duty series wound motor delivers superior torque output and faster line speed.
  • 3 stage planetary gearbox delivers the most reliable and durable performance of winch under the worst condition.
  • Braking by flanges transmission.
  • Rotating ring gear clutch have the freespooling positioned actually for the rapid pay out of wire rope with ease.
  • Installation, operation and maintenance with ease.
  • It's total length is 544mm(21.4").
Best Price Rp. 14.213.000,-

Product Detail

SPECIFICATION

Line pull : 4,536kgs/10,000lbs
Motor : 12V/5.0HP 24V/3.2HP
Gear Train : Three stage
Gear Ratio : 173:1
Brake : Flanges brake
Freespooling Clutch : Rotating ring gear
Wire Rope Size : Φ11/32"×100'(Φ8.7mm×30m)
Wire Rope Type : Aircraft A7×19
Drum Size : Φ2.5"×9"(Φ63.5mm×229mm)

LINE PULL

Layer of Wire Rope Max Line Pull
1 10,000lbs/4,536kgs
2 8,196lbs/3,718kgs
3 6,888lbs/3,124kgs
4 5,990lbs/2,717kgs

LINE SPEED AND AMP DRAW

(1st layer of rope on the drum)
Load Line Speed AMP Draw(12V) AMP Draw(24V)
No Load 47.5FPM/14.5MPM 60 40
2,000lbs/907kgs 14FPM/4.3MPM 150 110
4,000lbs/1,814kgs 12FPM/3.6MPM 181 158
6,000lbs/2,722kgs 10FPM/3.0MPM 250 190
8,000lbs/3,650kgs 8.2FPM/2.5MPM 300 230
10,000lbs/4,536kgs 7FPM/2.1MPM 350 270

DIMENSION (mm)


STANDARD ACCESSORIES

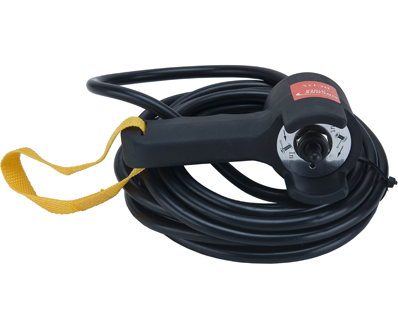

Controller (TA-0906)
Wire Rope With Hook
4 Way Roller Fairlead (TA-0903)
Control Unit (TA-0909)
Mounting Hardware
Handsaver Strap

PACKAGING

Winch weight  : 40kgs/88lbs
Gross Weight  : 43kgs/95lbs
Box Dimension  : 580×198×420mm (22.8"×7.8"×17.7")
