OFF ROAD WINCH


KINGONE WINCH - The heavy-duty series wound motor provides exceptional torque and faster line speed, while the 3-stage planetary gearbox ensures reliable and durable winch performance even in harsh conditions. It features an automatic double cone brake and a rotating ring gear clutch for easy rapid wire rope payout. The winch is designed for effortless installation, operation, and maintenance.

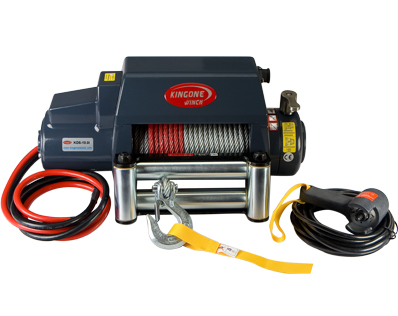

Kingone Winch - Heavy Duty Class KDS-10.0i - Luxury
Product Specification
Best Price : Rp 16,079,232 / Unit
Promo Price : Rp 11,577,047 / Unit

* Price exclude PPN, Ex-Works Cikupa
* Price & Spec can be changed without prior notification

SKU - DHC-2790
Kingone Winch - Heavy Duty Class KDS-10.0i - Luxury
Heavy Duty Electric Winch
• Series : KDS Series
• Type : KDS - 10.0i
• Line Pull : 4,536 Kgs / 10,000 Lbs
• Motor : 12 V/5 HP / 24V/3.2HP
• Gear Train : Three Stage
• Gear Ratio : 173 : 1
• Brake : Flanges Brake
• Freespooling Clutch : Rotation Ring Gear
• Wire Rope Size : Dia. 8.7mm x 30m
• Wire Rope Type : Aircraft A7X19
• Drum Size : Dia.63,5mm x 229mm
• Winch Weight : 43 Kgs
• Gross Weight : 46 Kgs
• Box Dimension : 560 x 198 x 420 mm
• Warranty : Mechanical 36 Months , Electrical 12 Months
Features
+ Heavy Duty Polyurethane Coating by Jotun, Norway
+ Gearbox Material by Nissin, Japan
+ Heavy Duty Series wound motor delivers superior torque
+ 3 Gear Planetary Gearbox Delivers
+ The Most Reliable and Durable performance of winch
+ Braking By flanges transmission
+ Rotating gear ring clutch have t the freespooling positioned.
+ For The rapid payouto Wire ropewith ease
+ Installation , operation and maintenance with easy.
+ Total Lngth 520mm(20.5)
+ Rigorous Quality Control from begining to finish
REQUEST QUOTE
Get your quotation less than 1 minute now!!
Product Detail

SPECIFICATION

Line pull : 4,536kgs/10,000lbs
Motor : 12V/5.0HP 24V/3.2HP
Gear Train : Three stage
Gear Ratio : 173:1
Brake : Flanges brake
Freespooling Clutch : Rotating ring gear
Wire Rope Size : Φ11/32"×100'(Φ8.7mm×30m)
Wire Rope Type : Aircraft A7×19
Drum Size : Φ2.5"×9"(Φ63.5mm×229mm)

LINE PULL

Layer of Wire Rope Max Line Pull
1 10,000lbs/4,536kgs
2 8,196lbs/3,718kgs
3 6,888lbs/3,124kgs
4 5,990lbs/2,717kgs

LINE SPEED AND AMP DRAW

(1st layer of rope on the drum)
Load Line Speed AMP Draw(12V) AMP Draw(24V)
No Load 47.5FPM/14.5MPM 60 40
2,000lbs/907kgs 14FPM/4.3MPM 150 110
4,000lbs/1,814kgs 12FPM/3.6MPM 181 158
6,000lbs/2,722kgs 10FPM/3.0MPM 250 190
8,000lbs/3,650kgs 8.2FPM/2.5MPM 300 230
10,000lbs/4,536kgs 7FPM/2.1MPM 350 270

DIMENSION (mm)


STANDARD ACCESSORIES

Controller (TA-0906)
Wire Rope With Hook
4 Way Roller Fairlead (TA-0903)
Control Unit (TA-0902)
Mounting Hardware
Handsaver Strap

PACKAGING

Winch weight  : 40kgs/88lbs
Gross Weight  : 43kgs/95lbs
Box Dimension  : 580×198×420mm (22.8"×7.8"×17.7")
