Gerco Telescopic Boom Truck Mounted Crane Series


Jual Telescopic Boom Truck Mounted Crane - Truck Mounted Crane also known as mobile crane or boom truck, is a type of crane that is mounted on a truck chassis. This configuration gives the crane mobility and versatility, so it can easily move to different work locations without the need for additional transportation equipment. Truck-mounted cranes are commonly used in the construction, maintenance and logistics industries to lift and transport heavy loads. PT. Indotara Persada has experience in implementing Truck Mounted Cranes in various national and multi-national companies. Years of experience have made Indotara the main partner for every company that wants to implement a Truck Mounted Crane. Indotara has various types of Truck Mounted Cranes that can be tailored to your company's needs.

Gerco Truck Mounted Crane Telescopic Boom GTB2SA2 XL 2.1 Ton

Product Specification

Best Price : Rp 322,984,942 / Unit
Promo Price : Rp 232,549,158 / Unit

* Price exclude PPN, Ex-Works Cikupa
* Price & Spec can be changed without prior notification

SKU - DHE-21306
GERCO Heavy Duty Truck Mounted Crane
• Model : Telescopic boom
• Type : GTB2SA2
• Max Lifting Capacity : 2100kg
• Max Lifting Moment : 4.2 Ton.m
• Recommend Power : 8Kw
• Hydraulic System Flow : 20L/Min
• Hydraulic System Pressure : 16Mpa
• Oil Tank Capacity : 35L
• Installation Space : 650mm
• Self Weight : 620Kg
• Rotation Angle : 360? rotation continous
Features
+ Heavy duty wear resistant plate material by Hardox, Sweden
+ Hydraulic piston rod material by Mitsubishi Corp., Japan
+ Heavy duty polyurethane coating with AkzoNobel, Netherlands
+ Electrical system design by ABB Group, Switzerland
+ Seal by SKF, Japan
+ Load hook material by Hitachi Group, Japan
+ Wireroop material by SWR Group, Germany
+ Using twosection telescopic cylinder design
+ It has bigger antibending capacity
+ Compact boom head and tail desig
+ Boom head adopting integral structure, greater intensity
+ Split head design reduces the boom head carrying capacity
+ The boom interface is made of strong steel plate
+ Lifting mechanism, relies on disc spring & friction brake
+ Stable and reliable, efficient, low noise
+ Atislewing impulse equipment that make vehicle running safely
+

REQUEST QUOTE
Get your quotation less than 1 minute now!!

GERCO TRUCK MOUNTED CRANE:
UNMATCHED DESIGN STRENGTH, DURABILITY AND QUALITY
PROVIDE THE BEST WARRANTY IN THE INDUSTRY.

specifications

ITEM	GTB2SA2
Max Lifting Capacity	2100 Kg
Max Lifting Moment	4.2 Ton.m
Recommend Power	8 Kw
Hydraulic System Flow	20 L/min
Hydraulic System Pressure	16 MPa
Oil Tank Capacity	35 L
Installation Space	650 mm
Self Weight	620 Kg
Rotation Angle	360^o Full Rotation Continuous

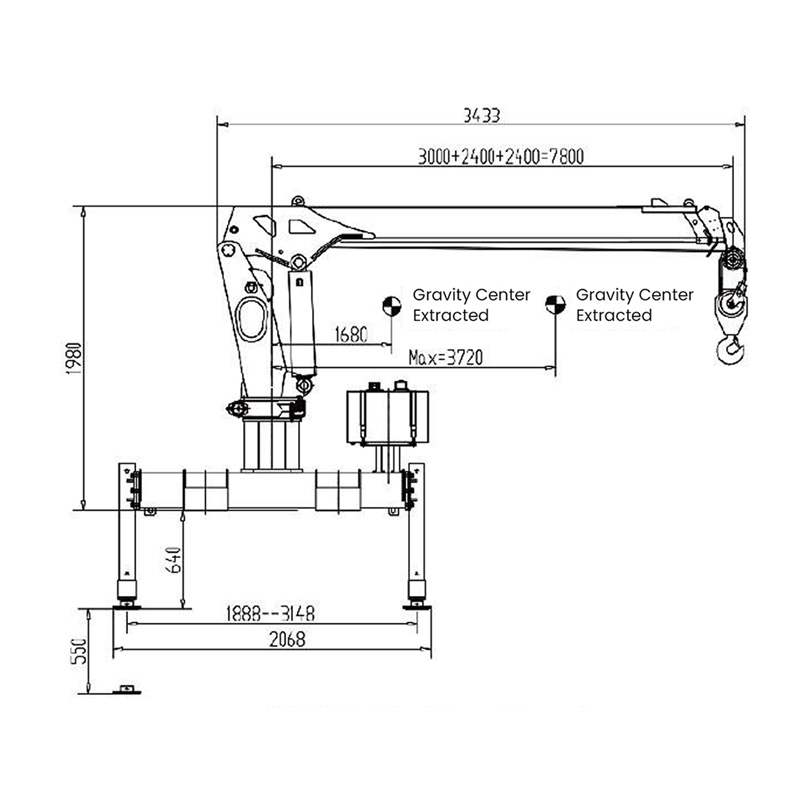

technical drawing

Gerco Telescopic Boom Truck Mounted Crane

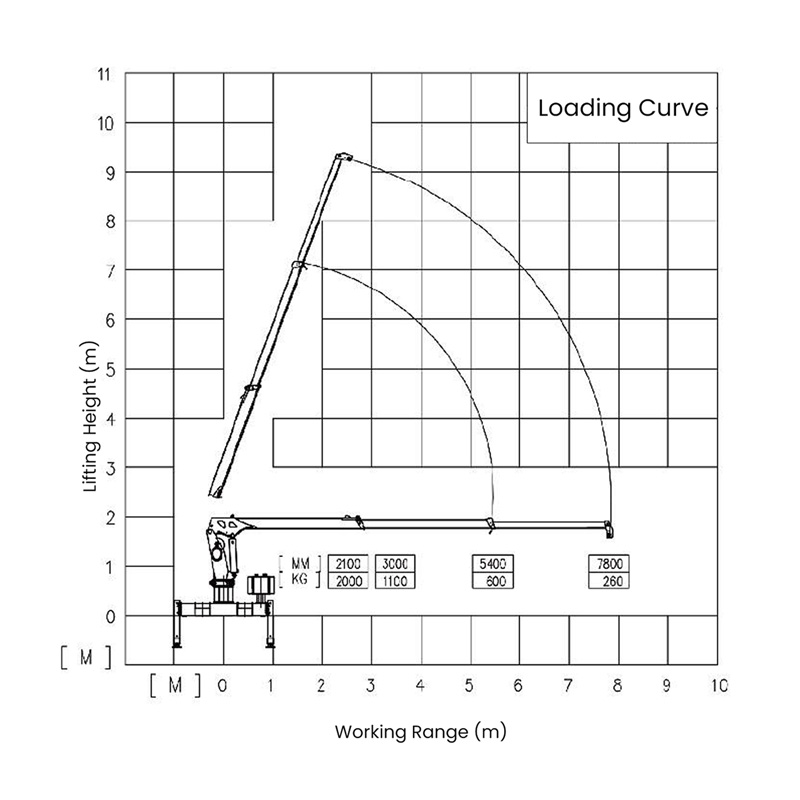

lifting graph

lifting capacity table

telescopic BOOM ADVANTAGES

1	Advanced development & analysis make sure the reliable design.
2.	Using two-section telescopic cylinder design, one of the cylinders push the second large boom, another cylinder push the rest of the telescopic boom by the pulley block and wire rope. To ensure that the crane has strong lifting capacity in the middle distance and effectively protect the wire rope in the boom.
3.	The more symmetrical center design of pentagon & hexagon boom make it has bigger anti-bending capacity.
4.	The boom interface is made of strong steel plate, and the U-shaped arm is used for the crane above 8T, which makes the cross-section bending resistance stronger.
5.	The crane above 6.3T adopts square legs, which can better protect the cylinder.
6.	Compact boom head and tail design, make the boom length to reach maximum, prolong the working life of the crane.
7.	The integer lifting winch improved the work efficiency greatly and prolonged work life of hydraulic system.
8.	Integral boom head structure with more strength. Boom head adopting integral structure, greater intensity.
9.	Split head design reduces the boom head carrying capacity.
10	Lifting mechanism hydraulic winch relies on disc spring and friction brake, stable and reliable, efficient, low noise, small calorific value; Rely on hydraulic balanced valves balancing weights when falling, greatly improve product reliability.
11	Ati-slewing impulse equipment that make vehicle running safely.
12	Water-based paint, more environmentally friendly.

GERCO SPECIAL FEATURES

Advanced Technology
Best-Component
Easy Maintenance
Enhanced Controls
Excellent Performance
Fitur-Heavy-Duty
High Quality Material
Long Service Life
Low Cost
Safety Features
Strong Power
Time Efficiency

HATI-HATI GUNAKAN SELALU TRUCK MOUNTED CRANE BERKUALITAS TERBAIK
Dengan standar mutu terbaik dikelasnya membuktikan eksistensi sebagai Truck Mounted Crane terbaik.
Tidak perlu diragukan lagi Gerco merupakan pilihan terbaik.
