Heavy Duty BOMAC Forklift - Bomac Forklifts with strong & reliable performance, using the best engine in its class and specially designed with adjusted weight, so that it is stable and safe when used. BOMAC is now vigorously improving its services and products with high quality, enabling dealers to meet all customer needs. Based on experience, stability and responsibility, BOMAC Forklifts is more than 30 years old with deep connotation, rich experience and many achievements.

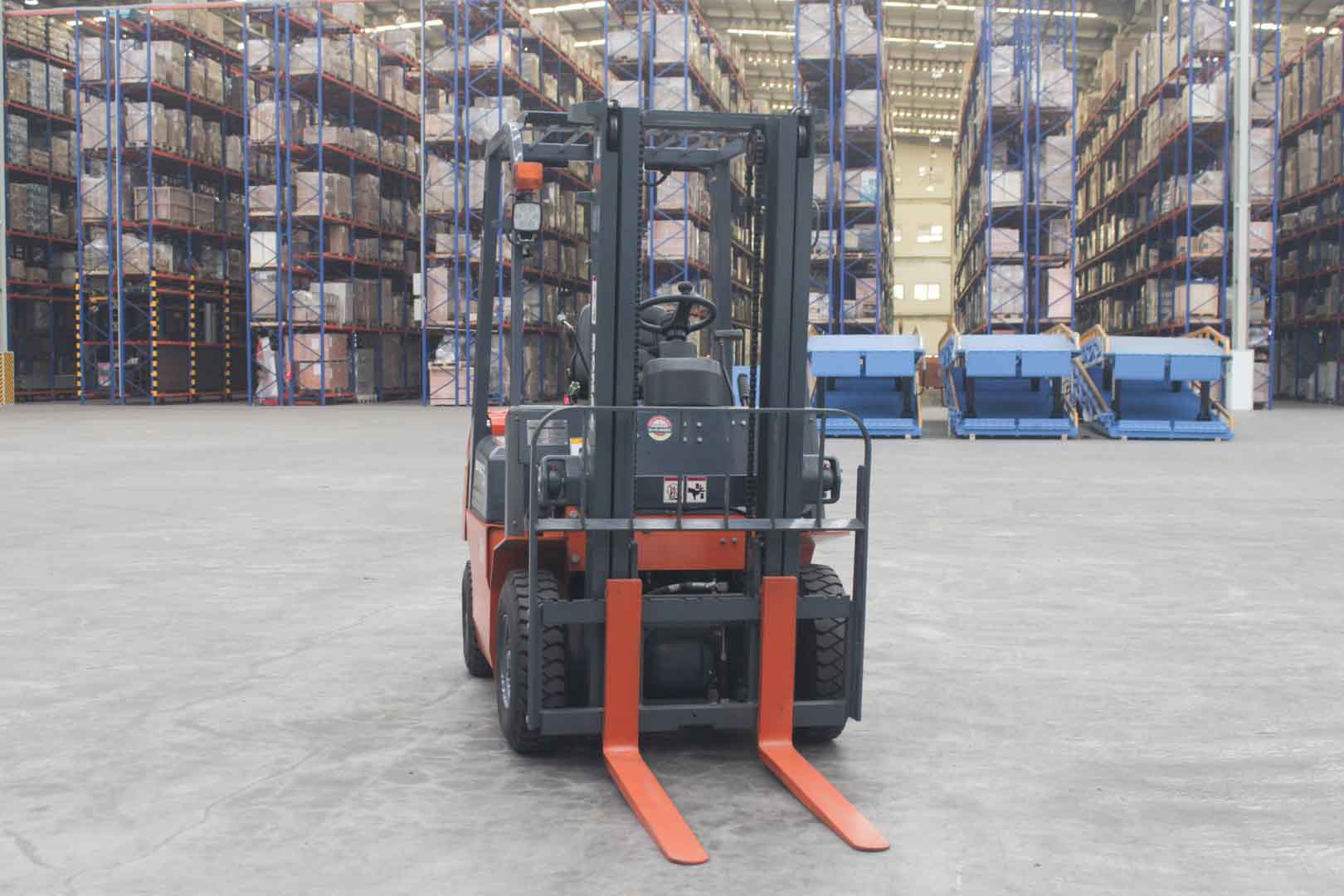

Bomac Forklift Automatic Diesel 1.5T RD15A-IC240 AN Isuzu Engine

Product Specification

Best Price : Rp 352,250,460 / Unit
Promo Price : Rp 253,620,331 / Unit

* Price exclude PPN, Ex-Works Cikupa
* Price & Spec can be changed without prior notification

SKU - DHE-222
BOMAC Heavy Duty Diesel Forklift with ISUZU Engine made in JAPAN
• Model : RD15A-IC240
• Engine Type : Diesel
• Max. Lifting Height : 3000 mm (Mast 2 Stage)
• Mast Height / Free Lift Height : 1995mm / 155mm
• Capacity : 1500 Kg
• Load Center : 500 mm
• Fork Size : 920 x 100 x 35 mm
• Engine Model : ISUZU C240 - ORIGIN JAPAN
• Engine Rated Output : 35.4 kw / 2500 rpm
• Engine Rated Torque : 139 Nm / 1800 rpm
• Engine Displacement : 2369 cc
• Transmission : Powershift (Automatic)
• Warranty : Mechanical 36 Months , Electrical 12 Months
Features
+ Heavy Duty Aluminium Radiator by Sumitomo Riko, Japan
+ Rust free hydraulic piston rod by HITACHI ALLOY, Japan
+ Heavy duty polyurethane coating with JOTUN, Norway
+ Heavy duty wear resistant fork by HARDOX, Sweden
+ Transmission by ZF Friedrichshafen AG, Germany
+ Mast by Winkel GmbH, Germany
+ Electrical by EATON, England
+ Seal by NOK, JAPAN
+ Double tip gasket & conical sealing among pipes connector
+ With air intaking system, prolonging engine service life
+ Big size radiator (1.5 more than another forklift)
+ Dust proof and water proof steering axle
+ BOMAC Advance Safety (BAS) Package
+ Low maintenance and operating cost
+ Ready to operate 24 hours nonstop

REQUEST QUOTE
Get your quotation less than 1 minute now!!

Bomac Forklift Spesifikasi 1,5 Ton

Characteristic
1.	Manufactory	BOMAC
2.	Model	RD-15
3.	Power Type	Diesel
4.	Rated Capacity (Kg)	1500
5.	Load Center (mm)	500
6.	Driving Mode	Sit-on type
Size
7.	Overall Max. Lifting Height (With Backrest)	h4	4030 mm
8.	Max. Lifting Height	h3	3000 mm
9.	Height Mast Rectared (Upright)	h1	1995 mm
10.	Free Lift Height	h2	155 mm
11.	Backstreeet Height (From Upper Face of Forks)	h8	1005 mm
12.	Overhead Guard Clearance (From Face of Seat)	h7	1025 mm
13.	Overall Height (Overhead Guard)	h6	2070 mm
14.	Overall Length (Without Forks)	(L1/L2)	3165 / 2245 mm
15.	Front Overhang	X	421 mm
16	Rear Overhang	L4	420 mm
17.	Wheel Base	L5	1400 mm
18.	Coupler Height	h5	250 mm
19.	Min. Ground Clearance Under Mast	m1	110 mm
20.	Overall Width	B	1070 mm
21.	Lateral Fork Adjustment (Outside of Fork)	R	950 / 200 mm
22.	Tread (Front / Rear)	( S / P )	890 / 920 mm
23.	Inside Turning Radius	V	110 mm
24.	Outside Turning Radius	Wa	1955 mm
25.	Min. Intersecting Aisle	Ra	2052 mm
26.	Tilting Angles (Forward / Backward)	α / β	6° /12°
27.	Fork Size	a x b x c	920 x 100 x 35
Performance
28.	Max. Traveing Speeds (Laden/Unladen)	Km/h	13.5/14.5
29.	Lifting Speeds (Laden/Unladen)	mm/s	590/650
30.	Lowering Speeds (Laden/Unladen)	mm/s	450/550
31.	Max. Draw-Bar Pull (Laden/Unladen)	kN	18/7
32.	Max. Negotiabe Gradient (Laden/Unladen)	%	≥20
Weight
33.	Service Mass	Kg	2660
34.	Load Wheel .Laden (Front/Rear)	Kg	3640/520
35.	Load Wheel .Unladen (Front/Rear)	Kg	1170/1490
Tyres
36.	Wheel (Front/Rear) X = Driving Wheel	2X/2
37.	Tyre (Front/Rear)	Pneumatic Tyre
38.	Tyre Size (Front/Rear)	6.50-10-10PR / 5.00-8-8PR
39.	Service Brake	Hydraulic - Foot Pedal
40.	Paking Brake	Mechanical - Hand Lever

1.	Durable transmission
2.	Equiped with the intake system & intake silencer
3.	Optional air filter pressure alarm device
4.	Automatic engine preheating system
5.	Cyclone Air Filter
6.	Lost fom casting
7.	Various high-power engines are available for customers' optional choices, and the emission meets the latest European & American environmental regulation. Option choices, and the emission meets the latest European

Air suction inlet installing on top of the overhead guard brace far away from the dust produced when travelling. Cleaner air sucked prolonging engine service life.

Using Alumunium plain plate corrugated fin type radiator, wich has higher heat transfer capability.

Optimise cooling system and ensure engine performance even in extreme temperatures and environments.

Installation of heat resistance and sound absorbing material and rubber sealing.

Easy lift engine hood with wide 80 degree opening.

Engine hood assist damper with lock device.

Compact structure, small deformation when loading.

Shock absorber installed improving driving comfort.

Dust proof and water proof structure increasing service life and reliability effectively.

Low maintenance cost in later stage.
