Bomac Diesel forklift - electric forklift


Heavy Duty BOMAC Forklift Electric - Bomac Forklifts with strong & reliable performance, using the best engine in its class and specially designed with adjusted weight, so that it is stable and safe when used. BOMAC is now vigorously improving its services and products with high quality, enabling dealers to meet all customer needs. Based on experience, stability and responsibility, BOMAC Forklifts is more than 30 years old with deep connotation, rich experience and many achievements.

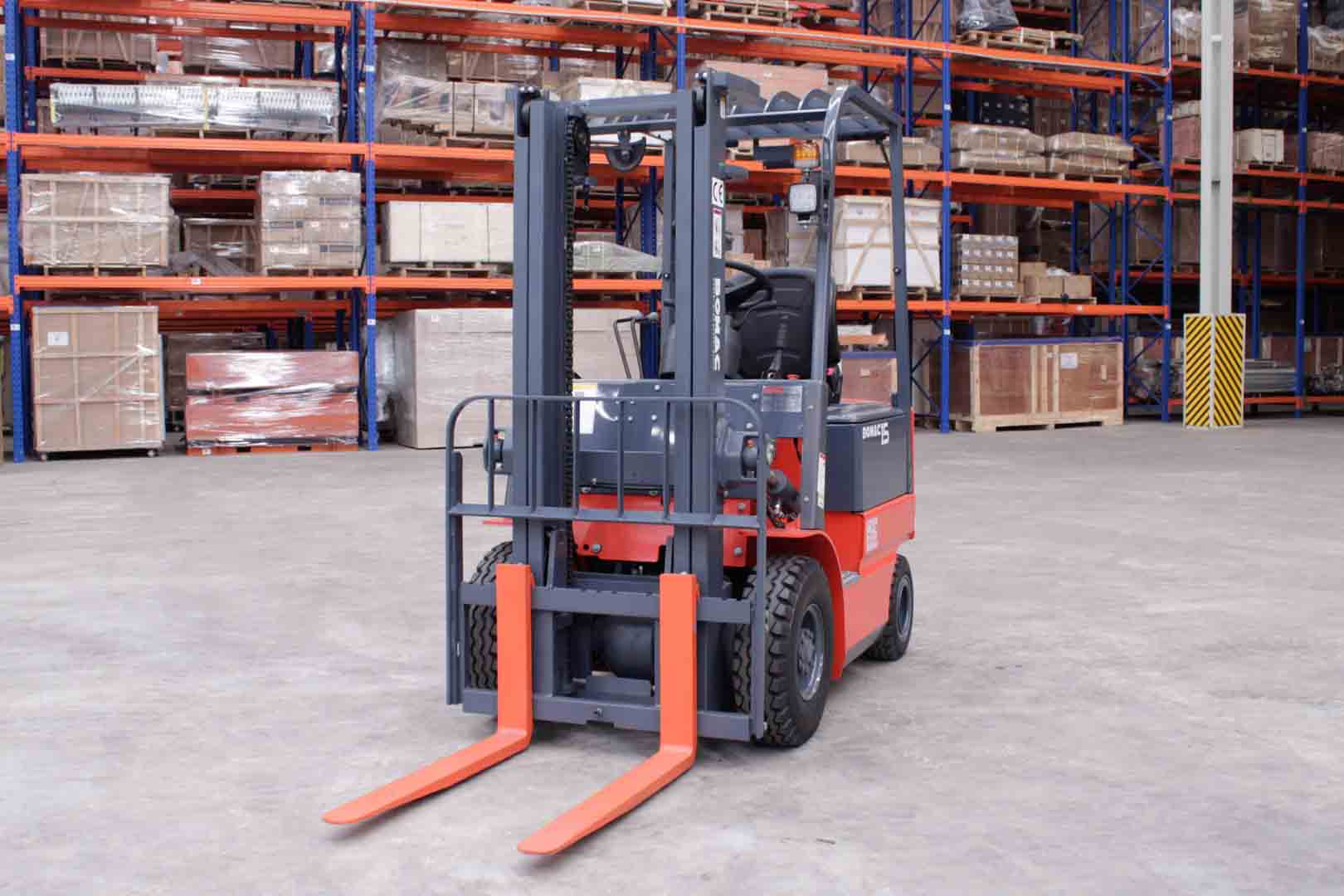

Bomac Forklift Electric 1.5T RE15-A2 AN Standart Lift 3M - With Zapi Controller

Product Specification

Best Price : Rp 339,329,613 / Unit
Promo Price : Rp 244,317,321 / Unit

* Price exclude PPN, Ex-Works Cikupa
* Price & Spec can be changed without prior notification

SKU - DHE-13376
BOMAC Heavy Duty Electric Forklift, with ZAPI Controller, ITALY
• Model : RE15
• Power Type : Electric
• Capacity : 1500 Kg
• Max. Lifting Height : 3000 mm (Mast 2 Stage)
• Mast Height : 1995 mm
• Load Center : 500 mm
• Free Lift Height : 150 mm
• Fork Size : 35x100x920 mm
• Turning Radius : 1880 mm
• Tyres : Pneumatic Tyre
• Controller : ZAPI- ITALY
• Drive Motor-60 Min, Rating : 8.0(AC)
• Pump Motor-15 Min. Rating : 7.5(DC)
• Service Brake / Parking Brake : Hydraulic / Mechanical
• Battery Voltage/Capacity : 48V/480Ah
• Warranty : Mechanical 36 Months , Electrical 12 Months
Features
+ Rust free hydraulic piston rod by HITACHI ALLOY, Japan
+ Heavy duty polyurethane coating with JOTUN, Norway
+ Heavy duty wear resistant fork by HARDOX, Sweden
+ Mast by Winkel GmbH, Germany
+ Controller by ZAPI, ITALY
+ Seal by NOK, JAPAN
+ Super low torque steering unit makes steering light and easy
+ LED lights are more energy saving, meet 68 hours working demand
+ Maintenance free and long service life
+ BOMAC Advance Safety (BAS) Package
+ Ready to operate 24 hours nonstop
+ 95% energy conversion rate

REQUEST QUOTE
Get your quotation less than 1 minute now!!

Jual Forklift Elektrik 1 Ton Bomac - Specs

Manufacturer's Data and Design Characteristics
Manufacturer	Bomac
Model			RE15
Configuration Number			A1/A2
Rated Capacity	Q	kg	1500
Load Center Distance	c	mm	500
Power Mode			Battery
Driving Mode			Seated
Wheel Base	L1	mm	1280

WIDE VIEW MAST

Mast Model	Max.Lifting height (mm)	Load Capacity (Load Center 500mm) (kg)	Mast Overall Height (Fork to the ground) (mm)	Service Weight (kg)	Mast tilt angle (°)α/β
M200	2000	1000	1495	2615	6/12
M250	2500	1000	1745	2645	6/12
M300	3000	1000	1995	2680	6/12
M330	3300	1000	2145	2700	6/12
M350	3500	1000	2245	2710	6/12
M370	3700	1000	2345	2725	6/6
M400	4000	1000	2545	2775	6/6
M425	4250	1000	2670	2790	6/6 \| *6/12
M450	4500	950	2795	2805	6/6 \| *6/12
M500	5000	930	3045	2840	6/6 \| *6/6
M550	5500	900	3345	2900	*3/6
M600	6000	600 \| *850	3595	2930	*3/6

WIDE VIEW FULL FREE 2-STAGE MAST

Mast Model	Max.Lifting height (mm)	Load Capacity (Load Center 500mm) (kg)	Mast Overall Height (mm)	Free Lifting Height (with backrest)(mm)	Service Weight (kg)	Mast tilt angle (°)α/β
ZM200	2000	1000	1495	485	3660	6/12
ZM250	2500	1000	1745	735	2690	6/12
ZM300	3000	1000	1995	985	2725	6/12
ZM330	3300	1000	2145	1135	2750	/6126
ZM350	3500	1000	2245	1235	2760	6/12
ZM370	4000	1000	2345	1335	2775	6/6
ZM400	4000	1000	2545	1535	2825	6/6
ZM425	4250	1000	2670	1660	2840	6/6 \| *6/12
ZM450	4500	950	2795	1785	2860	6/6 \| *6/12
ZM500	5000	930	3045	2035	2895	6/6 \| *6/6
ZM550	5500	900	3345	2335	2955	*3/6
ZM600	6000	600 \| *850	3595	2585	2990	*3/6

WIDE VIEW FULL FREE 3-STAGE MAST

Mast Model	Max.Lifting height (mm)	Load Capacity (Load Center 500mm) (kg)	Mast Overall Height (mm)	Free Lifting Height (with backrest)(mm)	Service Weight (kg)	Mast tilt angle (°)α/β
ZSM360	3600	1000	1790	695	2775	6/6
ZSM400	4000	1000	1925	910	2800	6/6
ZSM435	4350	950	2040	1025	2820	6/6
ZSM450	4500	950	2090	1075	2830	6/6
ZSM470	4700	930	2160	1075	2850	6/6
ZSM480	4800	920	2190	1145	2860	6/6
ZSM500	5000	900	2290	1275	2880	6/6
ZSM540	5400	750 \| *900	2415	1400	2900	3/6
ZSM600	6000	550 \| *1050	2640	1625	2975	3/6
ZSM650	6500	*1000	2640	1815	3010	3/3
ZSM700	7000	*750	3052	2010	3050	3/3

Standard Configuration Optional Device

Wide view basic mast

Standard fork

II (III) stage fork arm carrier

Backrest

Control valve

Battery

Standard seat

Overhead guard

Overhead guard rain cover

Liquid crystal combined instrument

Pneumatic tyre

Traction pin

Driver's tool

LED Lamp

Horn alert function on rear handle

String rod

Driver's cab

lifting hock

Cargo boom

Tip-over fork

back view mirror

Side shifting

Paper roll clamp

Warning light (Flashing, totating, buzzing)

Solid type

Rear working light

Steel protection net

Multipurpose drum clamp

Load stabilizer

Widen fork arm carrier

Lengthening fork

Load pusher

Lengthening fork extension

Rotating flat clamp

Widen tyre protection device

Auxiliary hydraulic valve component

Tilting/steering cylinder jacket

Coloring tyre

Wide view two/three stage full free mast

Costumer made color

Turn automatic deceleration function

Battery lifting sling

BOMAC FORKLIFT ELECTRIC BOMAC FORKLIFT DIESEL

HATI-HATI BELI FORKLIFT JANGAN YANG ASAL MURAH
Carilah yang : Handal, Kuat, Hydraulic berkualitas tinggi, bergaransi lama, suku cadang terjamin, ada teknisinya.
Sebuah Forklift harus bisa dipakai terus menerus karena didukung oleh dealer yang bertanggung jawab.
