Electric Pallet Truck

SHIGEMITSU Counterbalanced Electric Reach Stacker KQD15R- Shigemitsu is one of best company in material handling equipment especially hand pallet truck & manual stacker. Since decades it's develop special technology on heavy duty product to fulfill customer's need on durable products.

Shigemitsu is the name of premium line of Heavy Duty Hand Pallet & Manual Stacker with 3 Years Warranty & 60.000 cycles. Shigemitsu Special hydraulic pump will allow you to enjoy real "strong" performance.

Shigemitsu Warehouse Equipment Electric Reach Stacker 1.5T, 5.6M - Standing KQD15R-1150-5600 RY
Product Specification
Best Price : Rp 290,279,222 / Unit
Promo Price : Rp 209,001,040 / Unit

* Price exclude PPN, Ex-Works Cikupa
* Price & Spec can be changed without prior notification

SKU - DHE-1017

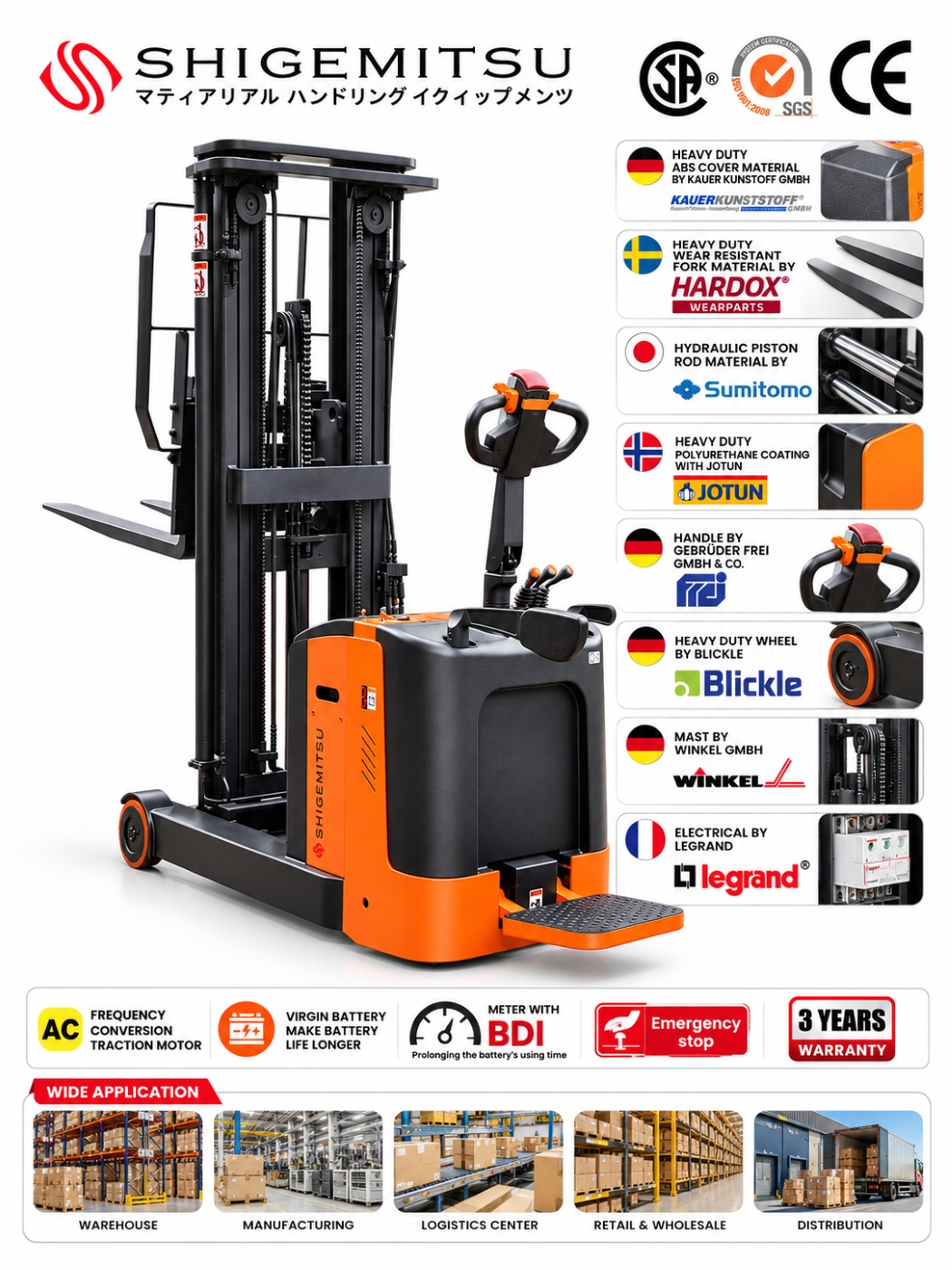

SHIGEMITSU Heavy Duty Class Counterbalanced Electric Reach Stacker
• Series : KQ Series
• Type : KQD15R-1150-5600 (STANDING TYPE)
• Rated load capacity : 1500 Kg
• Max. Lifting height : 5600 mm
• Load center / distance : 500 / 520 mm
• Forks, tilt forward/backward : 3°/6°
• Height, mast lowered / extended : 2495 / 6600 mm
• Height of tiler in drive position min./max : 1160/1460 mm
• Fork dimensions : 35x100x1150 mm
• Fork carriage width : 220-680 mm
• Reach distance : 650 mm
• Aisle width for pallets 800x1200 lengthways : 2750 mm
• Turning radius : 1750 mm
• Battery voltage : 24/270 V/Ah
• Warranty : Mechanical 36 Months , Electrical 12 Months
Features
+ Heavy duty ABS Cover Material by KAUER KUNSTOFF GMBH, Germany
+ Heavy duty wear resistant fork material by HARDOX, Sweden
+ Hydraulic piston rod material by Sumitomo Corp., Japan
+ Heavy duty polyurethane coating with JOTUN, Norway
+ Handle by Gebrüder Frei GmbH & Co., Germany
+ Heavy duty wheel by BLICKLE, Germany
+ Mast by Winkel GmbH, Germany
+ Electrical by LEGRAND, France
+ Controller by CURTIS, USA
+ Seal by NOK, Japan
+ The braking system combines magnetic brake and regenerative brake
+ With emergency stop switch and electricity lock button
+ The battery is activated when the unit will be shipped
REQUEST QUOTE
Get your quotation less than 1 minute now!!

Dimension KQD15R

        Semi electric pallet truck MP15A


        COUNTERBALANCED ELECTRIC REACH STACKER FEATURES :

        • jual hand pallet

          Shigemitsu is equipped with a Vertical Driving Wheel, Very Efficient when driving, installation & maintenance that is very easy.

        • jual hand pallet

          Shigemitsu is equipped with an emergency stop switch and an electric key and multi-valve controller, ergonomic switch to be supported.

        • jual hand pallet

          Shigemitsu Equipped with BDI & Hour meter display which is very helpful in monitoring the remaining battery capacity when used.

        • jual hand pallet

          Shigemitsu is equipped with an Lifting Cylinder that is placed on the outside of the mast, so that the process of lifting the load is maximized.

        • jual hand pallet

          Shigemitsu Warehouse Equipment with AC Controlling System Technology, Low Noise level, and with minimal maintenance.

        • jual hand pallet

          Shigemitsu Equipped with a battery with a large capacity to charge, stronger, more durable and with a much longer operation.

        • jual hand pallet

          Shigemitsu is equipped with Adjustable Valve Regulator, capable of setting and able to adjust mast drop speed when used.

        • jual hand pallet

          Shigemitsu Warehouse Equipment is specifically designed with a Tilting Fork / fork system that is very easy to use for loading and stacking.


        download-catalog



        HATI-HATI BELI COUNTERBALANCED ELECTRIC REACH STACKER JANGAN YANG ASAL MURAH
        Carilah yang : Tahan lama, Pelat tebal, Hydarulic berkualitas tinggi, Garansi lama, suku cadang terjamin, ada teknisinya. Sebuah Hand Pallet harus bisa dipakai terus menerus karena didukung oleh penjual yang bertanggung jawab.
